THEGR Series

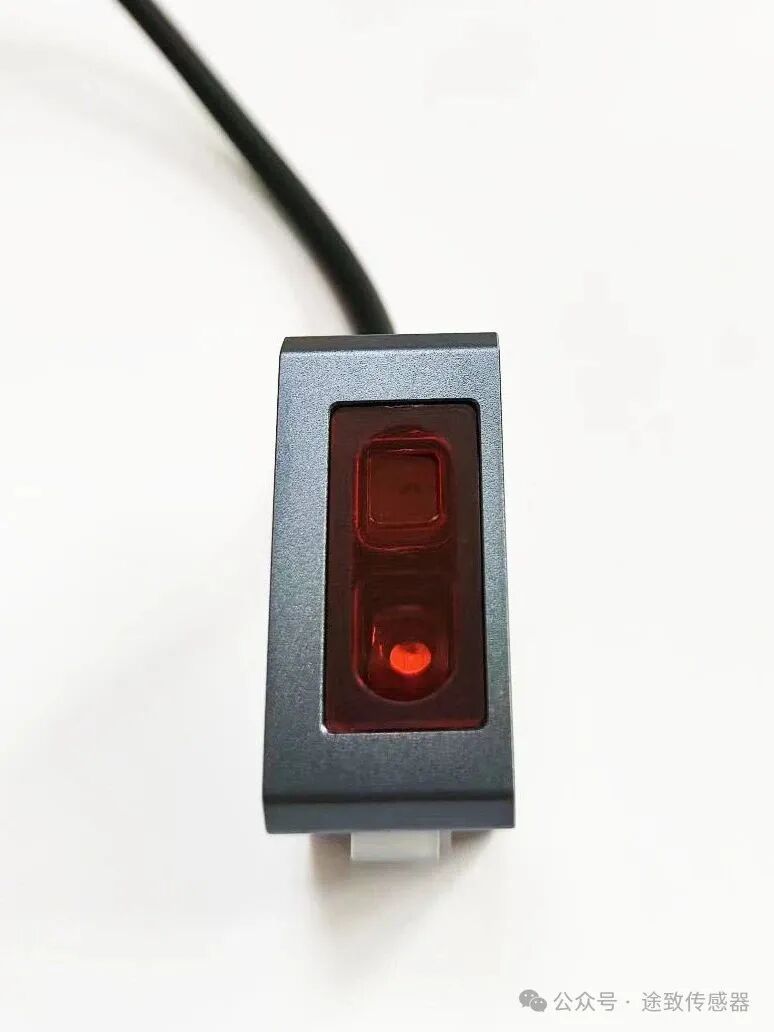

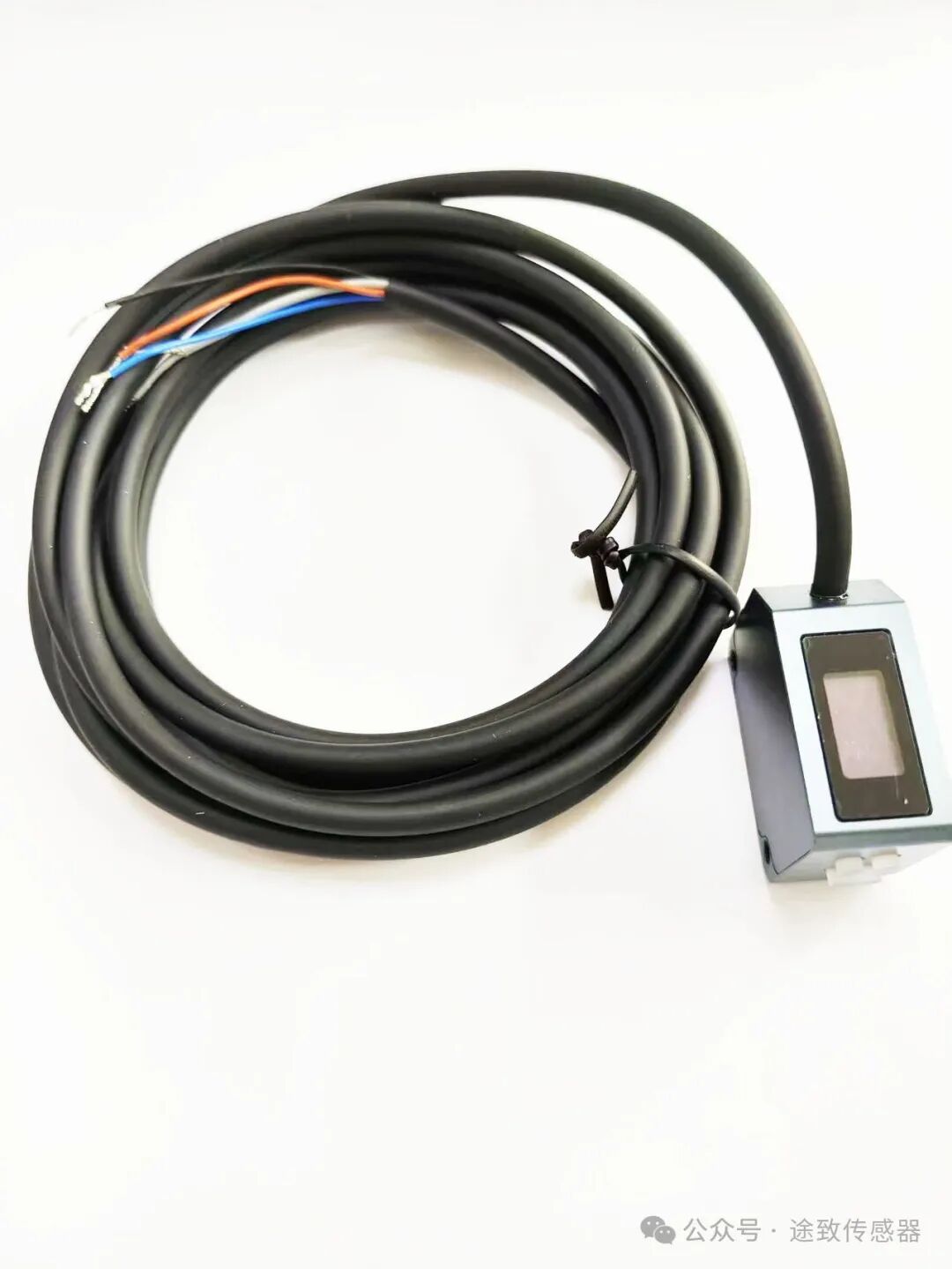

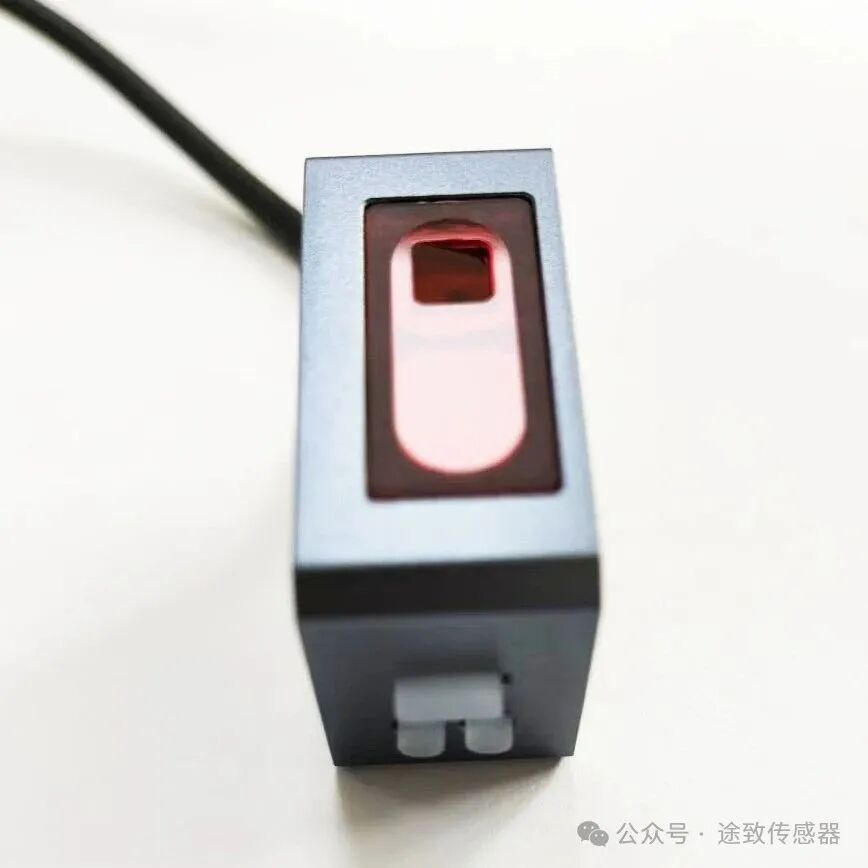

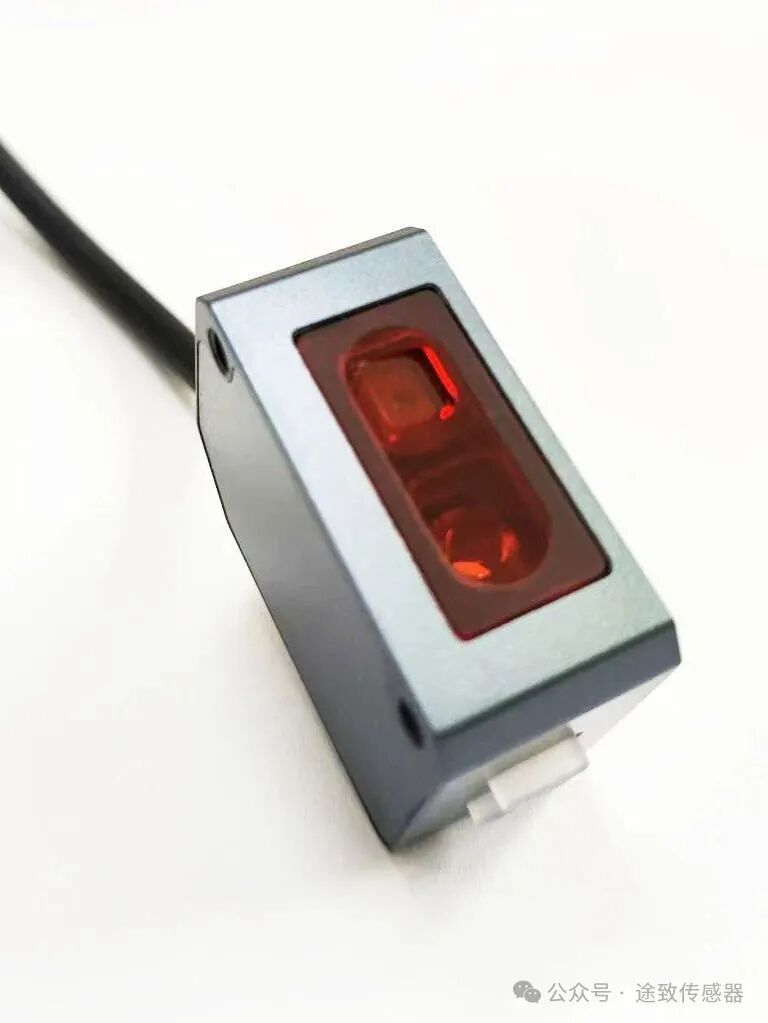

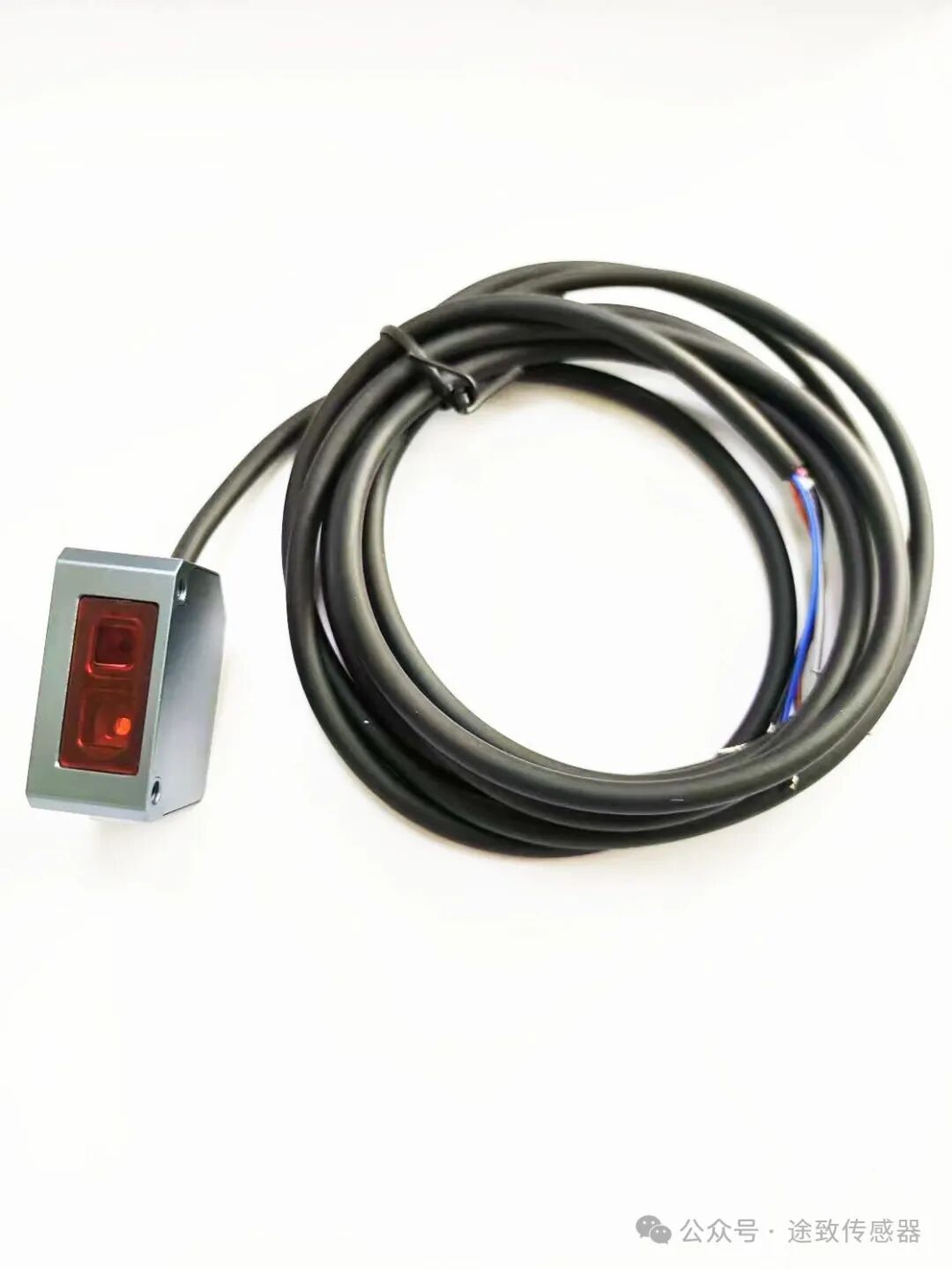

Mini Laser Displacement Sensor
THEGR-300NA
THEGR-300PA

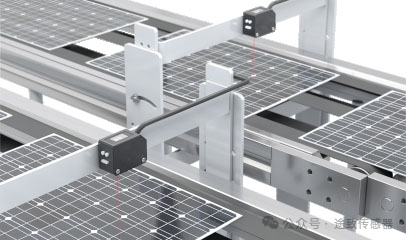

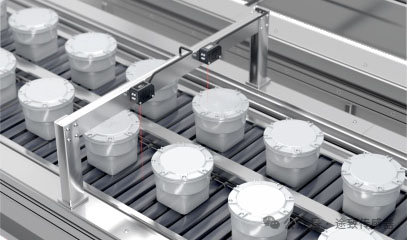

Application Scenarios
Application scenarios of laser displacement sensors
Specifications
Detection Distance: 25mm-200mm
Detection Segment Difference
25-100mm: 1.0mm, 100-200mm: 2mm
Spot Size: 0.7mm
Display Resolution: 0.1mm
Linearity: ±0.2% F.S.
Repeatability: 25-100mm: 0.5mm,
100-200mm: 1mm
Response Time: 400μs, 4ms, 8ms
Dimension and Wiring Diagram

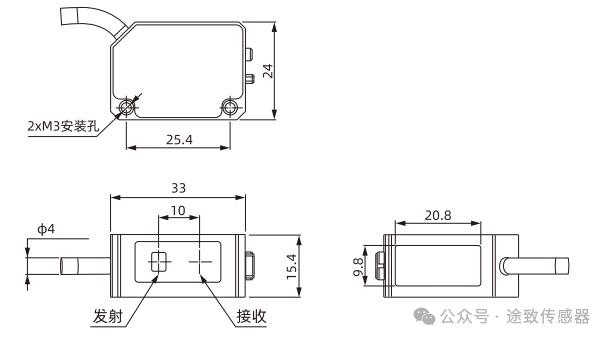

Outline Dimension Diagram

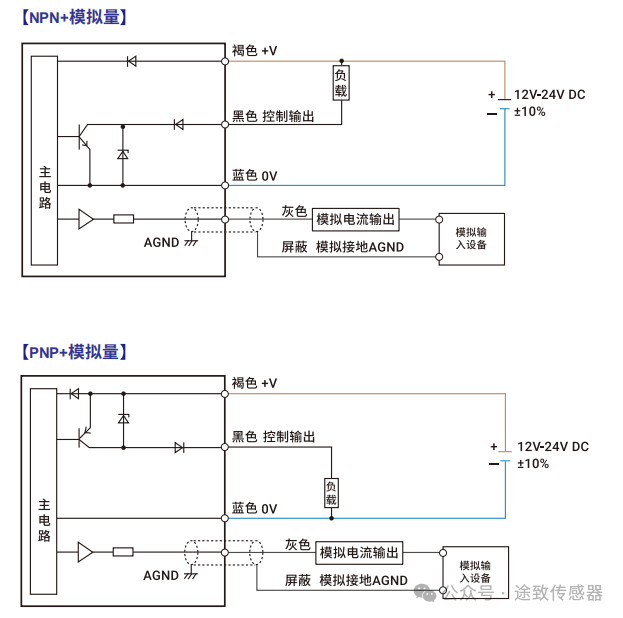

Wiring Diagram
Laser Displacement Sensor
END
