Important considerations for G6 data flashing include checking three areas:
1. Determine which model of ECU is equipped on this vehicle based on the ECU part number; do not rely on experience or intuition, seeing is believing;
2. Verify whether the controller interface entered in the Smart Genius is correct (for example, if the part number is 1001235881, you need to enter the WISE13A G6, Euro 6 Smart Genius interface);
3. Check whether the flashed data corresponds to the ECU data (for example, the data for WISE13-P230-V173 can only be flashed to the WISE13A computer board and cannot be flashed to the WISE13E, WISE13G, etc. computer boards).

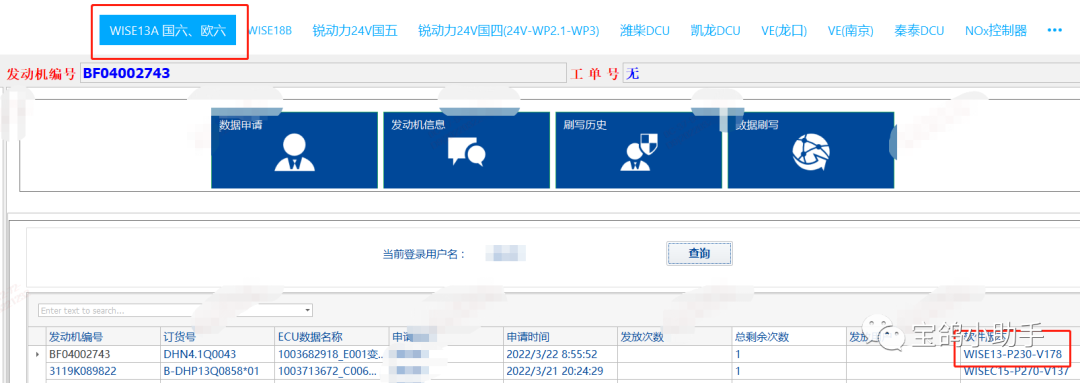

The Smart Genius interface must match the software version on the far right in the flashing history
Review the above content three times before proceeding
Distinguish by vehicle type (light vehicles):
WISE13A, WISE13B, WISE13C, WISE13D, WISE13E, WISE13G, WISE13H, WISE13J
Distinguish by vehicle type (heavy vehicles):
WISE10A, WISE10B
———————————————————————————
Distinguish by manufacturer (Bosch):
WISE13A, WISE13J, WISE10A
Distinguish by manufacturer (Continental):
WISE13E, WISE10B
Distinguish by manufacturer (Shenzhen):
WISE13C, WISE13D, WISE13G, WISE13H
Note: Computer boards from the same manufacturer can connect successfully in the Smart Genius, but it may affect other functions (fault codes may be inaccurate, calibration may not be possible, flashing may not work, data streams may not be readable, etc.)
———————————————————————————
Below are pictures of ECU part numbers and their corresponding data versions
Be sure to remember the bolded numbers

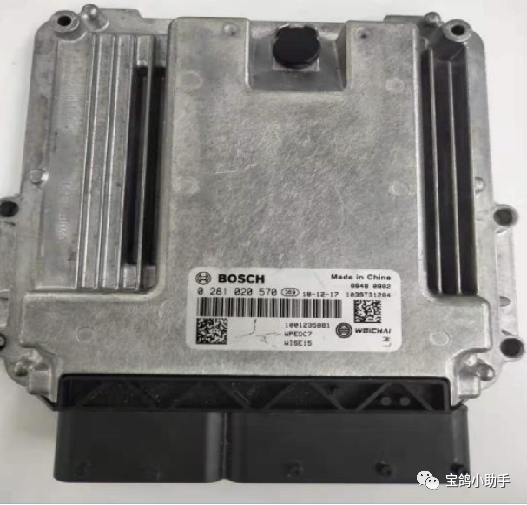

1. WISE13A Electronic Control Unit
1. Part numbers: 1001235881, 1002252763, 1002205641, 10025388672, 1002538867
Corresponding data versions: WISE13-P230-XXX WISE13-P232-XXX
2. WISE13B Electronic Control Unit
1. Part number: 1001314521
Corresponding data version: WISE13-P280-XXX
No picture available

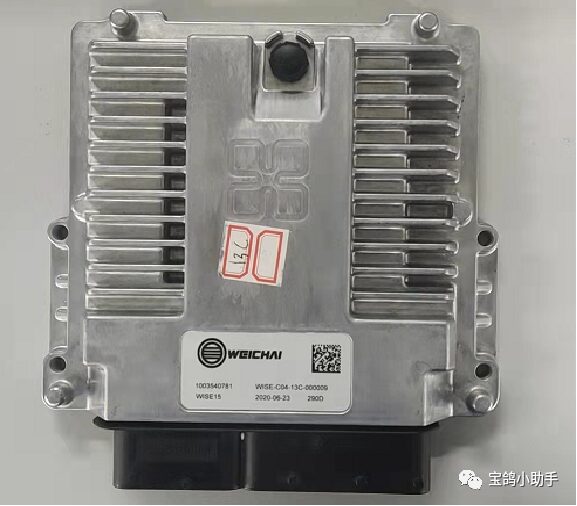

3. WISE13C Electronic Control Unit
1. Part number: 100350781
Corresponding data version: WISE13-P290-V121

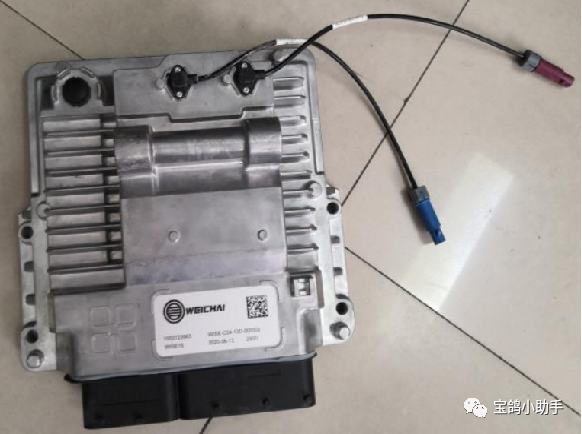

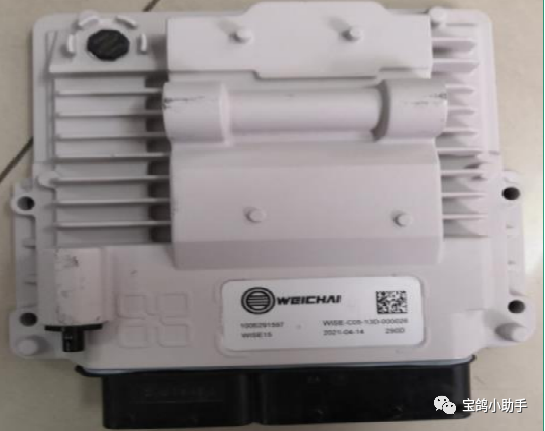

4. WISE13D Electronic Control Unit
1. Part numbers: 1003723963 (with antenna), 1006291597 (without antenna)
2. Corresponding data version: WISE13- P291-XXX

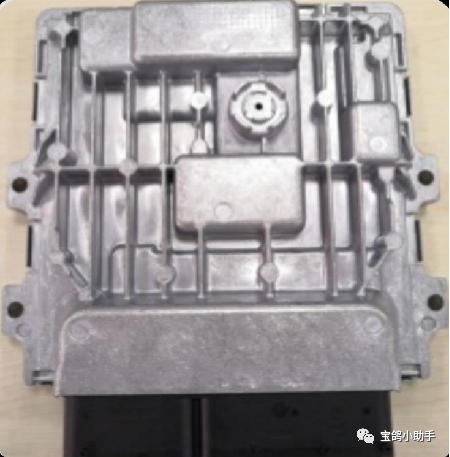

5. WISE13E Electronic Control Unit
1. Part number: 1004149975
2. Corresponding data version: WISE13- P231-XXX

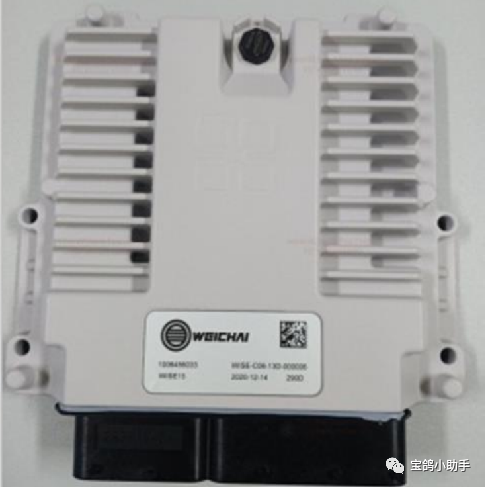

6. WISE13G Electronic Control Unit
1. Part numbers: 1006456033, 1003723963, 1008754542
2. Corresponding data versions: WISE13-P291-XXX WISE13-P294-XXX

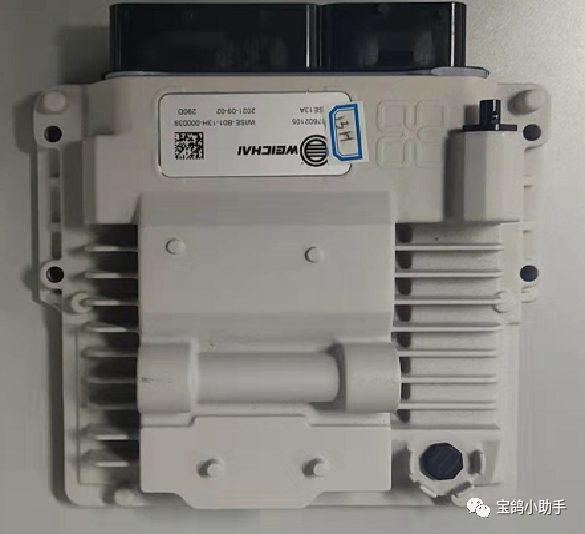

7. WISE13H Electronic Control Unit
Part number: 1007602105
Corresponding data version: WISE13-P293-XXX

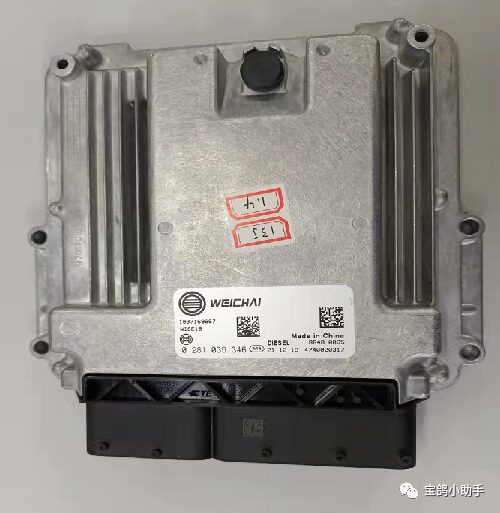

8. WISE13J Electronic Control Unit
Part number: 1007169867
Corresponding data version: WISE13-P233-XXX

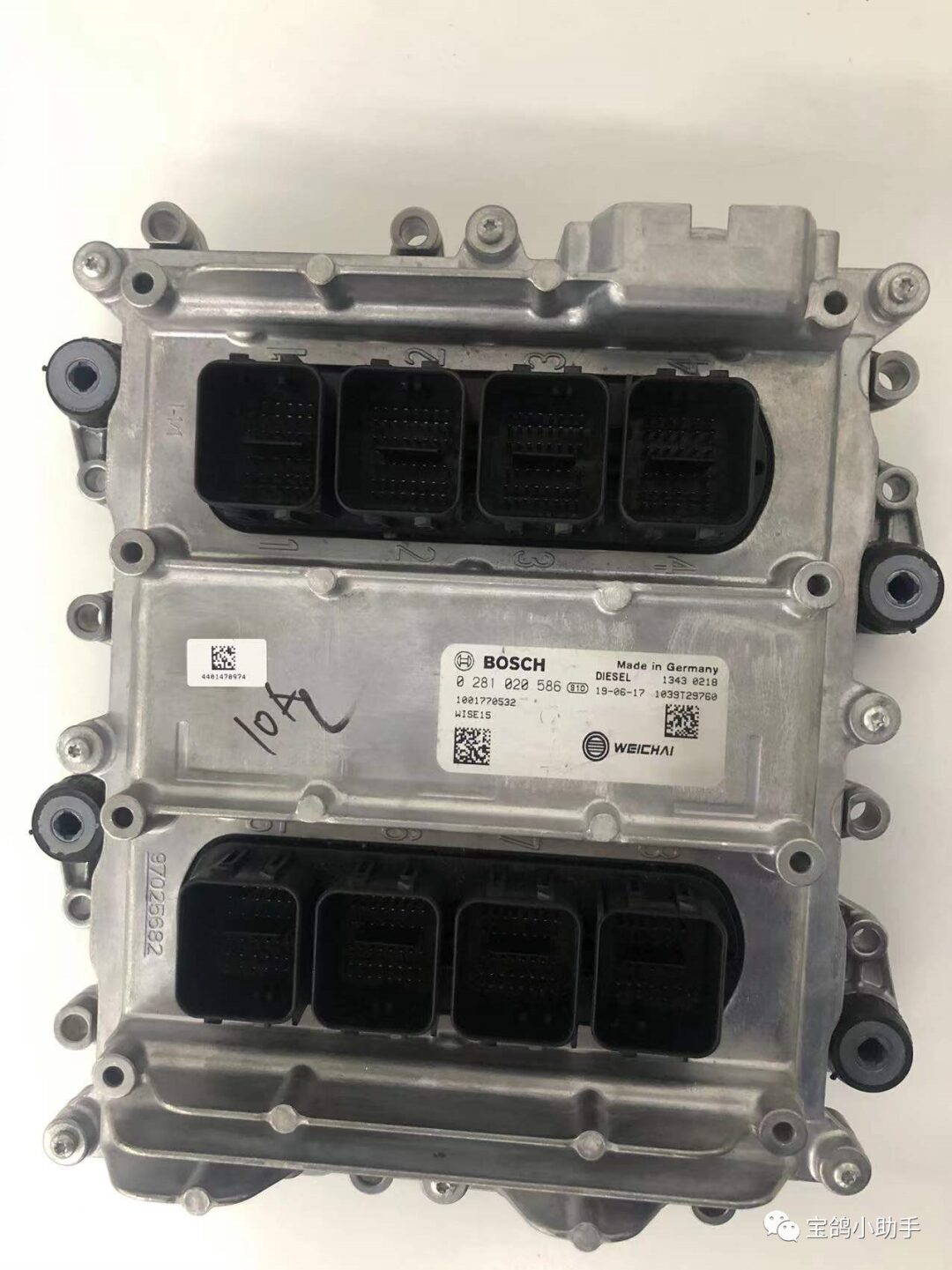

9. WISE10A Electronic Control Unit
Part numbers: 1000914312, 1001770532, 1001301010
Corresponding data versions: WISE10-P201-XXX WISE10-P200-XXX
10. WISE10B Electronic Control Unit
Part numbers: 1001319593, 1002950829, 1001786327
Corresponding data version: WISE10-P210-XXX
No picture available
Personal summary, if there is anything wrong or if you have questions, you can add WeChat below for consultation
If you find it helpful, please give a follow
