How Fast Is the DSP Algorithm Library?

1. Introduction

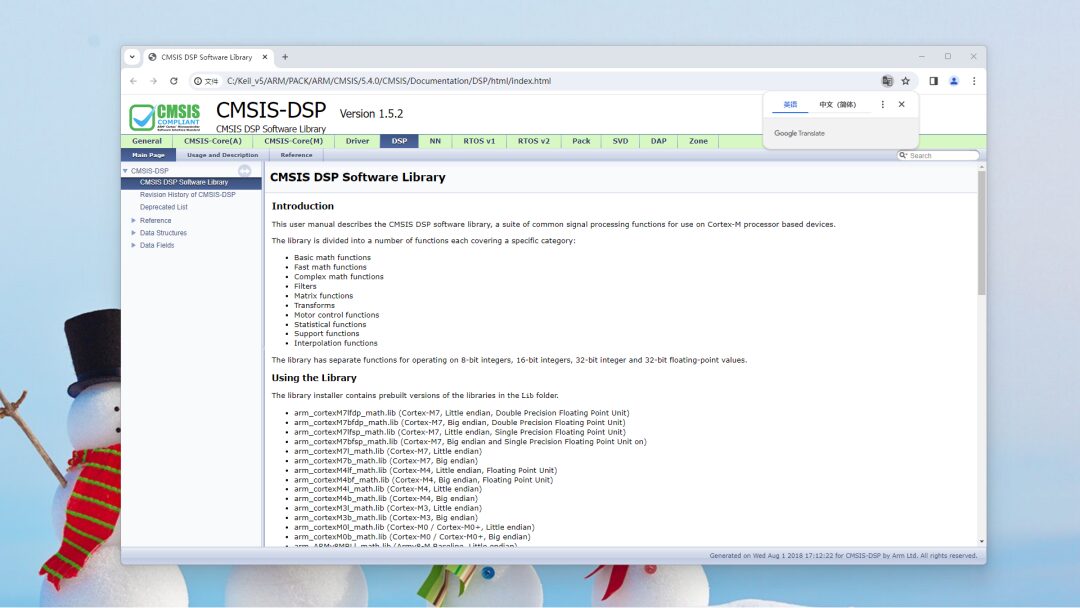

In ARM microcontroller development, there is a CMSIS DSP library provided for digital signal processing functions. This library includes basic data functions, fast mathematical operations, complex operations, filters, matrices, transformations, click control, statistics, support functions, and interpolation functions, covering most algorithms used in engineering applications.

I have a question: how much speed improvement can be achieved by using the DSP functions in CMSIS compared to the functions in a regular mathematical library?

Below, I will compare the speed of square root calculations and sine trigonometric functions, which will help in selecting different mathematical libraries for different scenarios in the future.

2. Testing Method

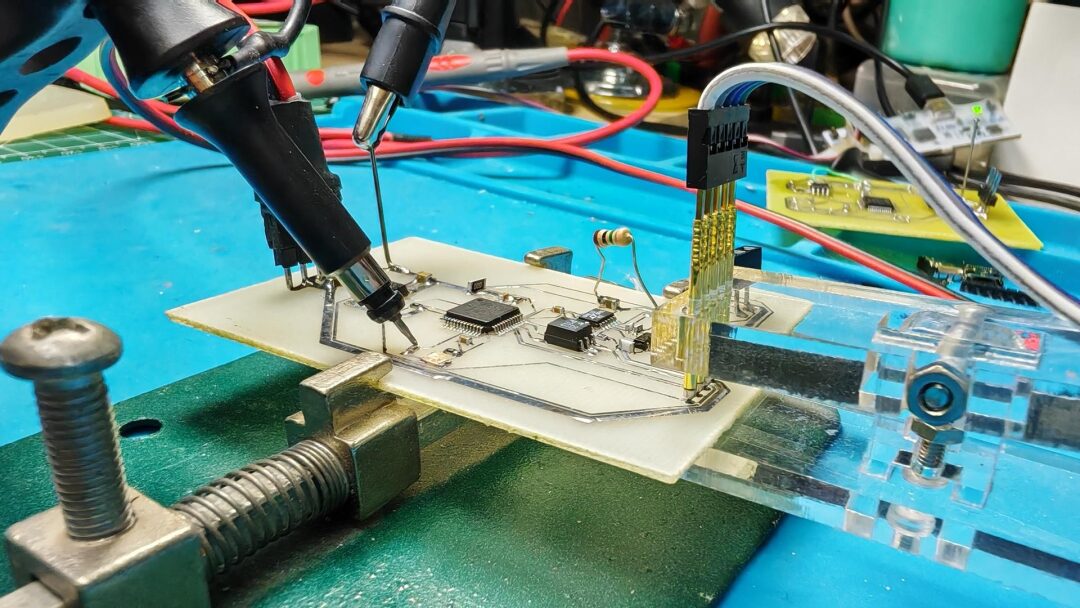

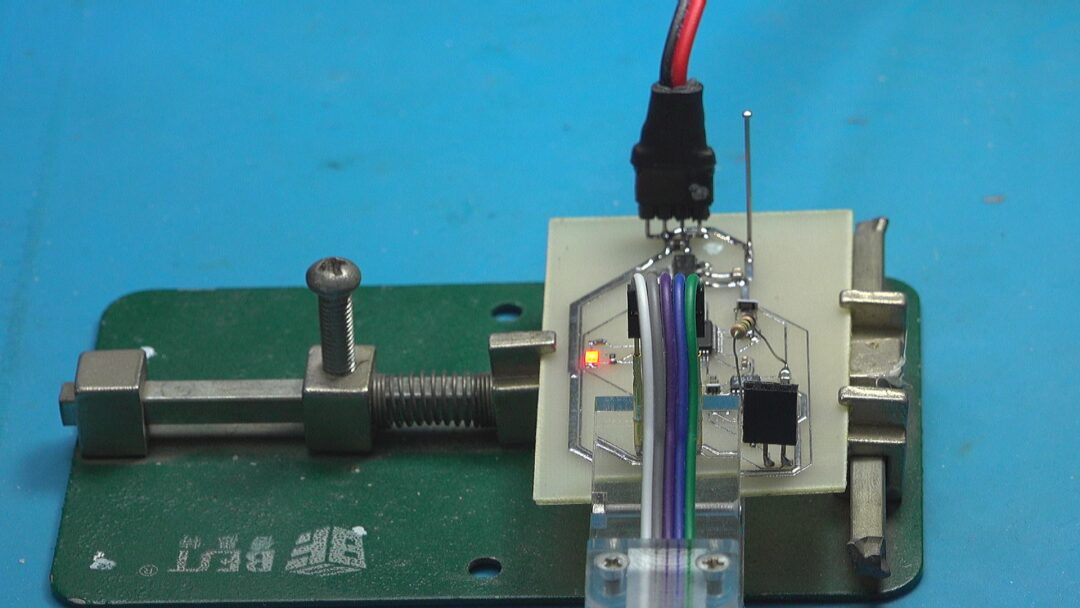

The testing hardware platform is the STM32F103 microcontroller produced yesterday, which is an ARM microcontroller with an M3 core. This microcontroller is quite simple and popular. Let’s take a look at its mathematical computation speed by using a port to output high and low levels to indicate the time required for calculations.

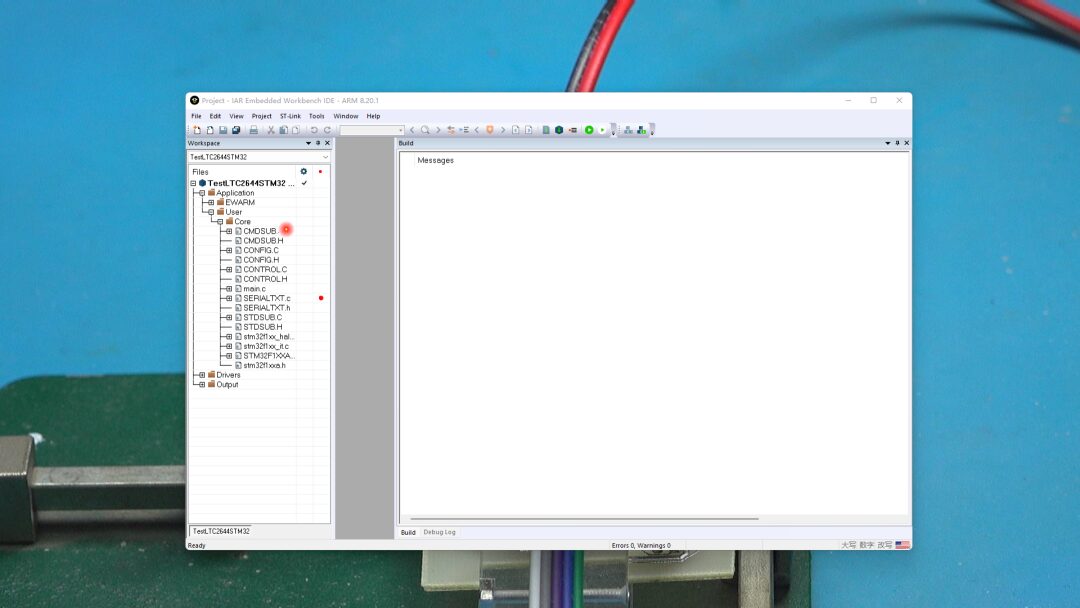

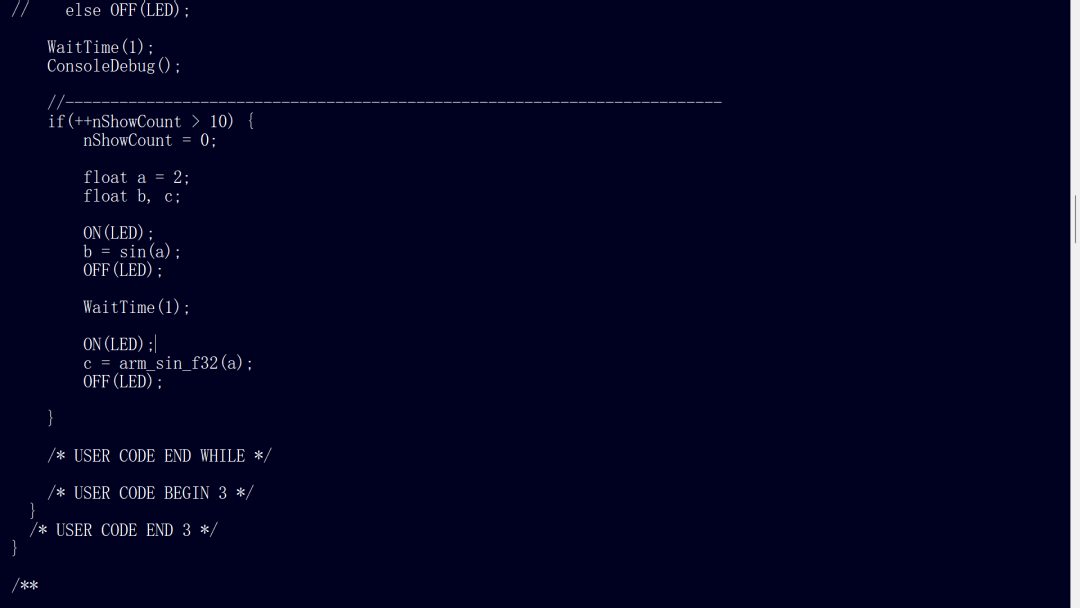

To use the DSP database, you need to select the CMSIS DSP in the connection library settings under the General options of the IAR development environment. Simply add the arm math header file in the program. In the main loop of the test program, I execute the regular sine trigonometric function calculation and set the LED output pin high and low before and after, so the width of the high pulse indicates the calculation time of the sine function. After a 1ms interval, I execute the sine function from the DSP library, also using the LED pin to indicate execution time. Finally, through an oscilloscope, I can visually compare the differences in execution speed between the two functions.

3. Test Results

Using the oscilloscope to measure the waveform of the LED pin, we can see two pulse signals before and after. The first signal is from the sine function in the regular mathematical library, which takes a longer time, while the second signal is from the DSP library sine function, which is clearly shorter. This indicates that for microcontrollers with the M3 core, the efficiency of using the DSP mathematical library is indeed very high.

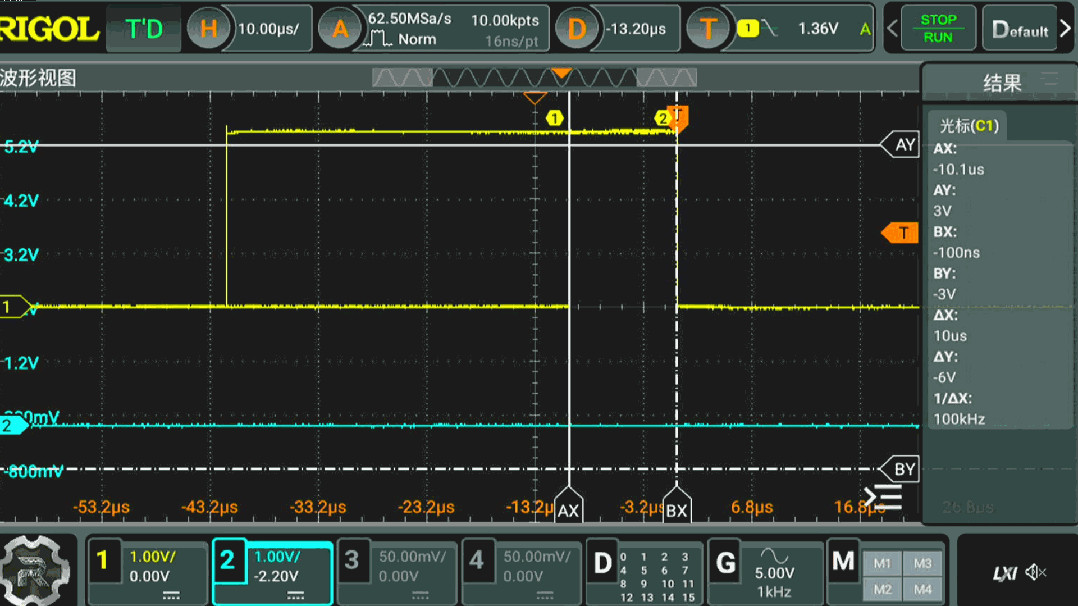

It should be noted that the microcontroller system clock is currently set to 64MHz. To make a more precise comparison of the execution times of the two mathematical libraries, I expand the waveform. Using the cursor measurement function of the oscilloscope, I measure the time width of the pulses. The regular sine function takes 41.7 microseconds, while the DSP sine function executes in only 10 microseconds. This comparison shows that for the calculation of the sine trigonometric function, the DSP algorithm library is about four times faster than the regular mathematical function.

  ● Comparison of sine operations:    math：41.7us   DSP：10us

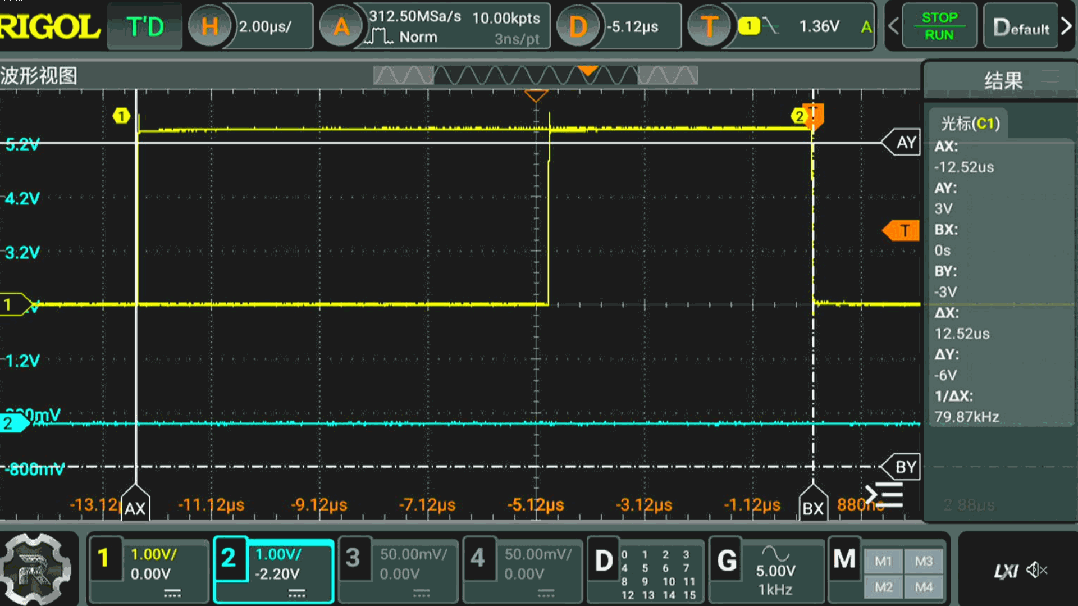

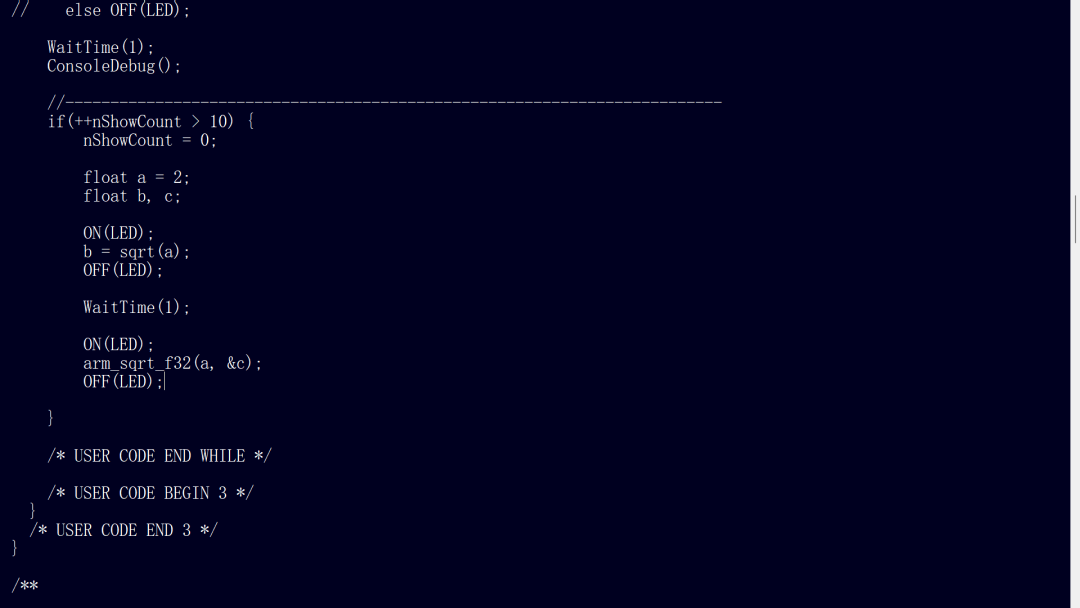

  ● Comparison of square root operations:    math：12.52us   DSP：4.9us

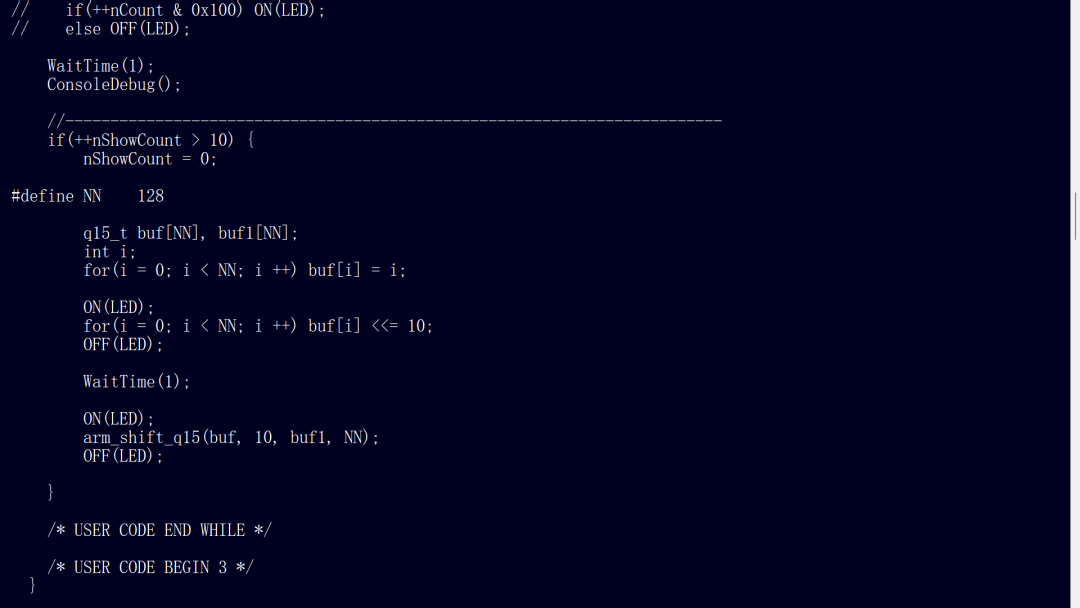

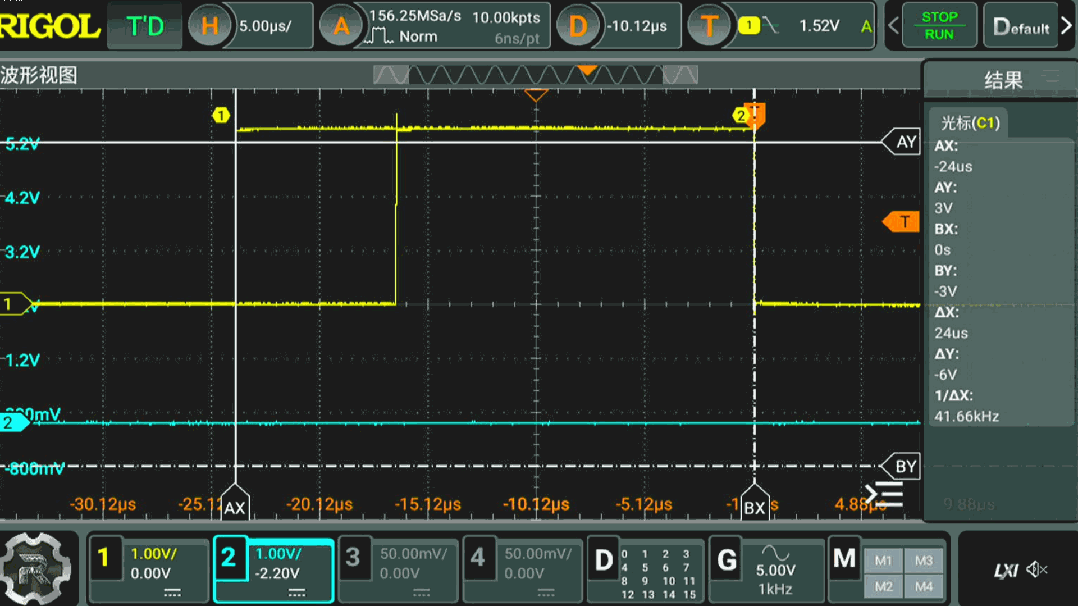

  ● Comparison of two-bit shifts:    C：24us   DSP：16.65us
