With the rapid development of the Internet of Things, industrial automation, and automotive electronics, 32-bit MCUs have become a core pillar of embedded development. FMD (FeiMang Microelectronics), leveraging its deep expertise in ARM Cortex-M0/M3 cores, has launched a family of 32-bit microcontrollers covering general-purpose, automotive-grade, and low-power scenarios. This article summarizes the most representative models based on the latest selection guide for 2025, helping you quickly identify the “soul chip”.
General High Performance: FT32F0 Series – “Small Size, Big Energy”
Keywords: 72MHz main frequency, 2.0~5.5V wide voltage, -40~105℃ industrial grade
Star Models: FT32F030K6AT7: 32KB Flash + 4KB RAM, 25 GPIOs, LQFP32 package, suitable for motor control and smart sensors. FT32F030C8AT7: 64KB Flash + 8KB RAM, 39 GPIOs, QFN48 package, integrates 2 USARTs and 2 I²C, known as “mini PLC”.Highlights: All models come standard with 12-bit ADC (up to 16 channels), hardware CRC, and DMA acceleration, offering a cost-performance advantage over the STM32F0 series.

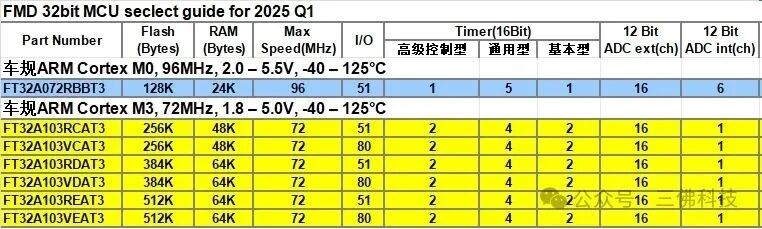

Automotive Grade Hardcore: FT32A Series – “The Pinnacle of Automotive Certification”
Keywords: AEC-Q100 certified, 125℃ high-temperature resistance, CAN-FD interface
Star Models: FT32A103RCAT3: 256KB Flash + 48KB RAM, 51 GPIOs, LQFP64 package, dual CAN channels + USB OTG, designed specifically for automotive gateways. FT32A072RBBT3: 128KB Flash + 24KB RAM, LQFP64 package, integrates 24-channel capacitive touch, the “invisible button” for smart cockpits.Automotive Black Technology: ESD ±8kV protection, clock failure detection, Flash ECC error correction, pre-certified for ISO 26262 ASIL-B functional safety.

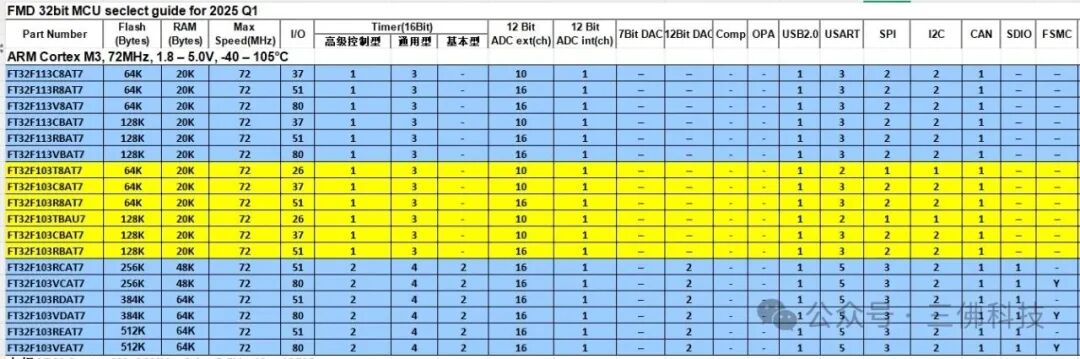

High-Energy Storage Faction: FT32F103 Advanced Series – “Large Capacity is King”
When projects require “massive code + complex algorithms” dual buffering, the FT32F103 advanced series shines: FT32F103RDAT7 384KB Flash + 64KB RAM, 51 GPIOs, LQFP64 package, dual CAN + USB OTG, capable of handling motor FOC control in one chip.
FT32F103VEAT7 512KB Flash + 64KB RAM, 80 GPIOs, LQFP100 package, 5 USARTs + 3 SPIs, easily cascades for HMI gateway.Hidden Skill: Supports external FSMC to expand SRAM, can connect 8MB Nor Flash, transforming into a “mini Linux terminal”.

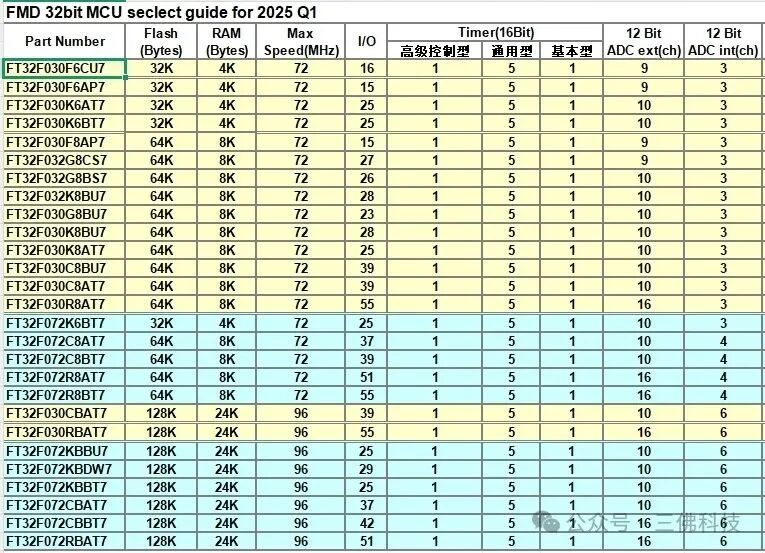

Three-Dimensional Decision-Making Chart for Model Selection
| Dimension | Recommended Model | Key Feature |
|---|---|---|
| Cost Sensitive | FT32F030F6AP7 | TSSOP20 package, unit price < ￥5 |
| Rich Interfaces | FT32F072C8AT7 | USB + CAN + Touch, full interface jackpot |
| Automotive Grade | FT32A103VCAT3 | 100Pin LQFP, standard for automotive central control |
| Ultra-Low Power Consumption | FT32L031F6P7 | 0.5μA sleep current, IoT marvel |
Development Support: From Zero to Mass Production
Toolchain: Supports three platforms: Keil MDK / IAR / GCC, providing both HAL and LL library APIs. Ecosystem: Accompanying libraries for motor control, capacitive touch, and OTA upgrades, open-source demo board (FT32F072-Nucleo compatible with Arduino). Supply: Offices in Shenzhen/Zhongshan/Ningbo, 48-hour shipping from Shenzhen, ample stock of the entire series in Q1 2025.

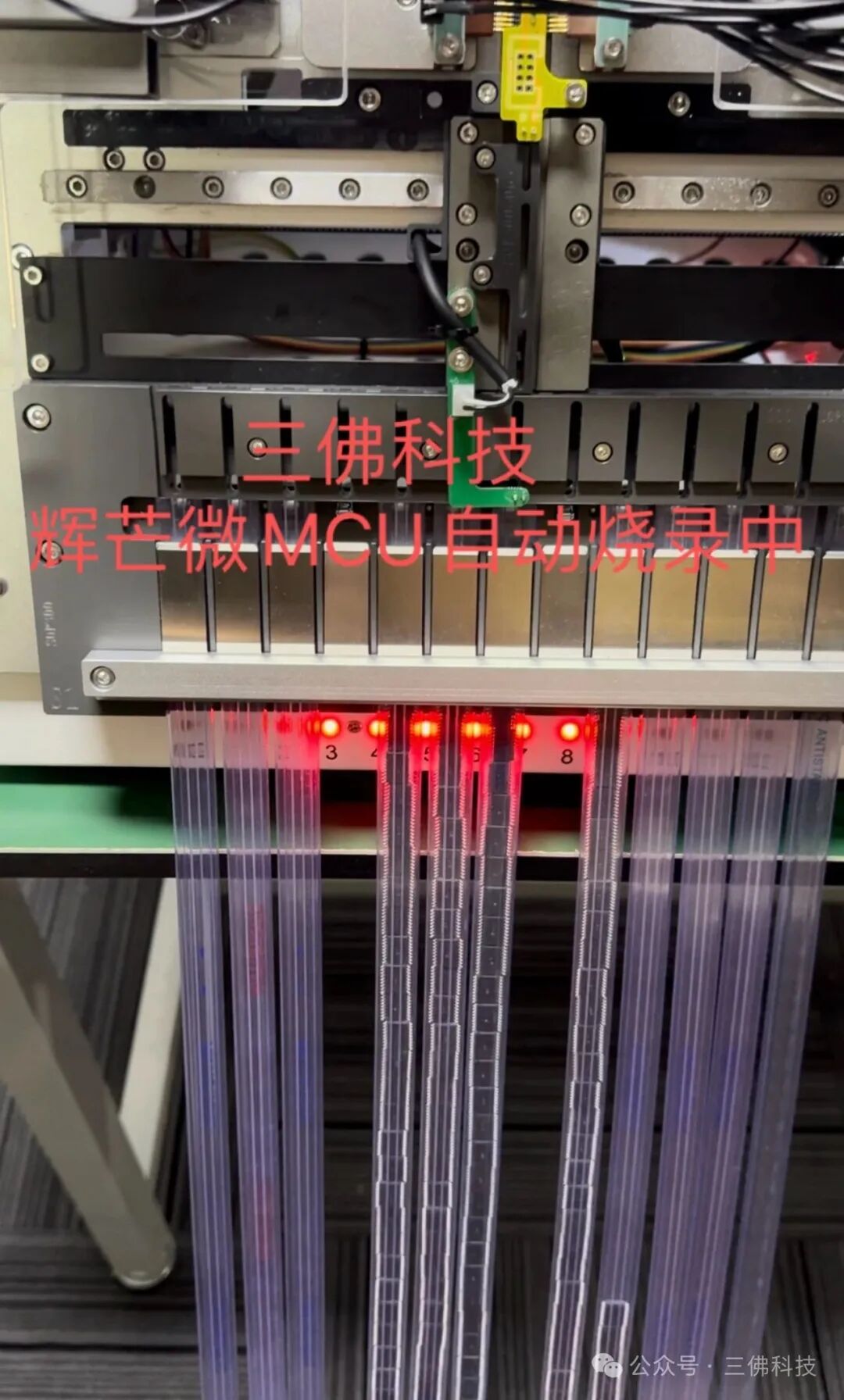

Shenzhen Sanfo Technology provides samples, technical support, and program burning~
Conclusion
From industrial control to automotive electronics, from consumer electronics to energy metering, FMD’s 32-bit MCUs are redefining the standards for domestic alternatives with the “three high principles” of high performance, high reliability, and high usability. Now, you only need to select the above models based on project requirements to seize the opportunity in the wave of intelligence in 2025!
