Recently,I flashed the ECU of my car, and it’s a stage two upgrade.

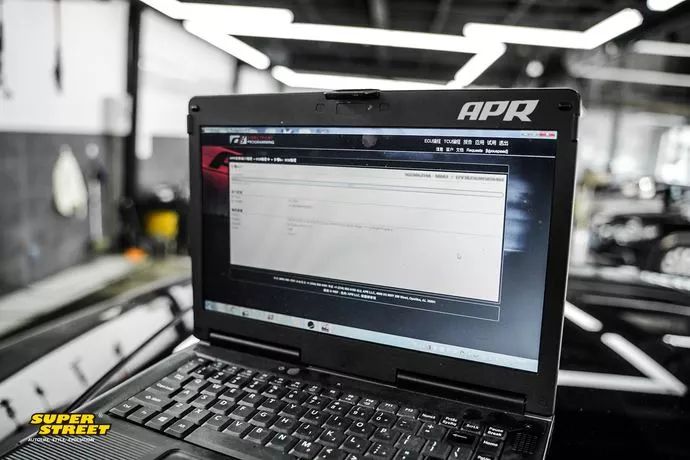

OBD Direct Flashing
First, what does “flashing the ECU” mean?
Flashing the ECU refers to ECU tuning, which modifies the intake, fuel injection, ignition, etc., through the vehicle’s onboard computer program, adjusting the air-fuel ratio, ignition timing, and more. There are two methods: writing through the vehicle’s OBD interface and opening the ECU computer board for flashing.The main goal is usually to enhance power.

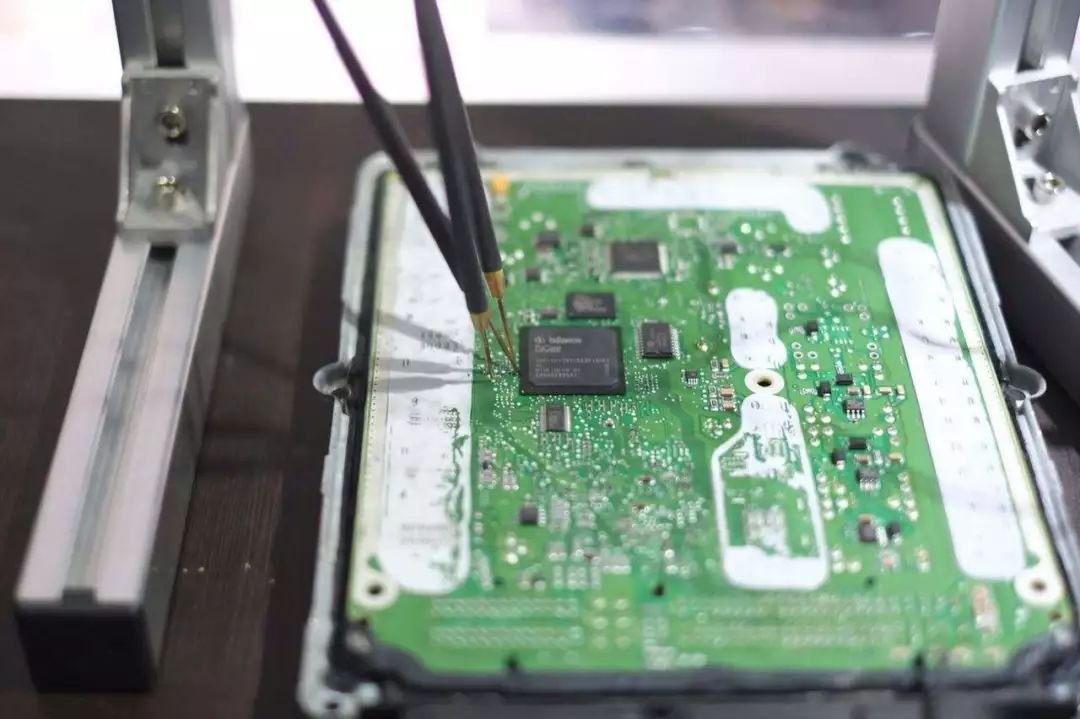

Open Cover Flashing
So, why didn’t the factory consider these factors?
Factory engineers must take into account different road conditions, climates, fuel types, and various driving habits and needs of different people, while also achieving acceptable fuel consumption and emissions.This ultimately leads to a conservative program.
Therefore, for many tuning enthusiasts, all modifications revolve around flashing the ECU; for the average person, flashing the ECU also positively impacts the driving experience.
Psychological Preparation
Sounds great, right? But now I have to pour some cold water on it. Many people get carried away and blindly flash their ECU, only to regret it later.The reason is that they haven’t prepared mentally:
At the very least, you should know that flashing the ECU carries risks; if it’s a new car, it may void the warranty.
There have been numerous reports online about issues arising from flashing the ECU, such as cylinder pulling, cylinder explosions, and turbo failures… However, in this day and age, even a new car straight from the dealership can have engine oil leaks,so it’s hard to say whether some problems are caused by flashing the ECU. This is a world where appearances matter; even if you do nothing, the risks are still there. Even if you do everything, you only minimize the risks. After flashing, go home and wash your face well.
Then there’s the warranty issue. If a problem arises during the warranty period of a new car, you can go to the dealership, but once the ECU is flashed, the dealership can find various reasons to refuse warranty service. Especially when the engine has issues, the dealership’s computer can easily detect that the ECU has been tampered with, and crying on the hood won’t help.
Secondly, flashing the ECU affects future resale value.
Many people are wary of cars that have been flashed or modified, fearing that these cars are unstable, not durable, or may fail inspection. For example, when two used cars of the same age and mileage are placed in front of you, one is stock, and the other is modified; no matter how much money was spent on the modified car, the stock car will always sell for a better price.
This is also why many owners of flashed or modified cars will spend a lot of effort restoring their vehicles to stock before selling.
Finally, the cost of maintenance will be higher after flashing the ECU.
As mentioned earlier, cars with flashed ECUs are generally less stable and durable than stock cars. If there are no issues, a stock car can last 20 years, while a flashed car might last 15 years. Flashing the ECU isn’t that scary; as long as maintenance is done properly, changing the oil and spark plugs early, occasionally using some additives (not the ones sold at gas stations), and upgrading to a higher octane gasoline… all of these can add up to significant expenses.
For me personally, maintaining a car after flashing the ECU will cost at least one-third more than a stock car, because I believe that maintaining a car’s condition is“30% repair, 70% maintenance”, but some people think this is unnecessary excessive maintenance.
Hardware Preparation

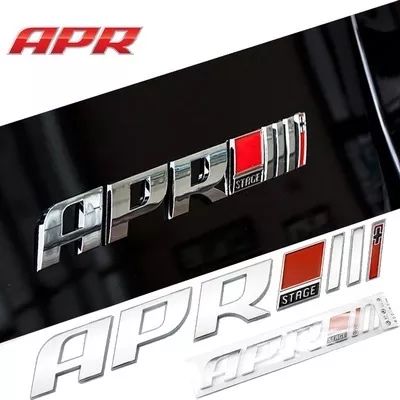

If you can accept it mentally, remember one thing: hardware is meant to serve the program. Unless focusing on handling, appearance, or stance, usually better hardware modifications are to match faster programs (this doesn’t mean that suspension or brakes aren’t important; modifications are systematic, but typically start with power).Therefore, major program providers categorize ECUs into “stage 1”, “stage 2”, and “stage 3”, corresponding to different levels of hardware. For example, flashing a stage 2 or stage 3 on a stock car is purely self-inflicted; if you want to flash it, the tuning shop may not even want to do it:
Stage 1 increases power based on the stock setup. In theory, stage 1 is within the tolerable range of stock hardware; in simple terms, you can directly upgrade to stage 1 after buying the car, and you may feel a qualitative change in power after flashing.
Stage 1 is the least invasive and provides the most noticeable improvement, so many people only choose to flash stage 1.

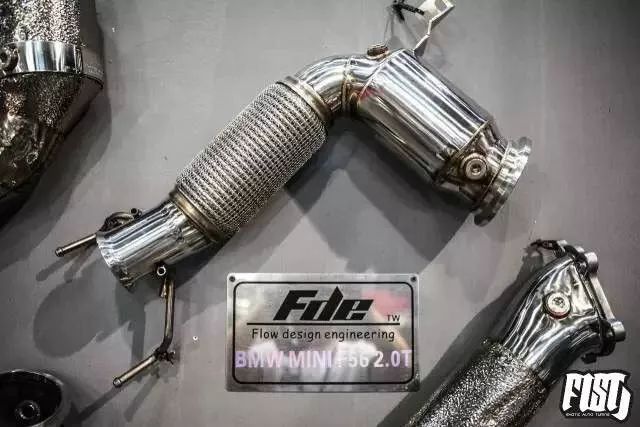

Stage 2 is a relatively aggressive power upgrade. At this point, the stock intake and exhaust may not hold up, so at least a high-flow intake and possibly a straight pipe or high-flow downpipe are needed to stabilize temperature and pressure.
Compared to stage 1, the improvement of stage 2 is not as dramatic, and most performance car owners I know usually stop at stage 2.As a car’s performance reaches a higher level, the cost and effort required for each additional improvement grow exponentially. It’s like a stock car that can go from 0 to 100 km/h in 7 seconds; spending 10,000 can make it 6 seconds, but if you want it to reach 5 seconds, be prepared to spend 100,000 more.

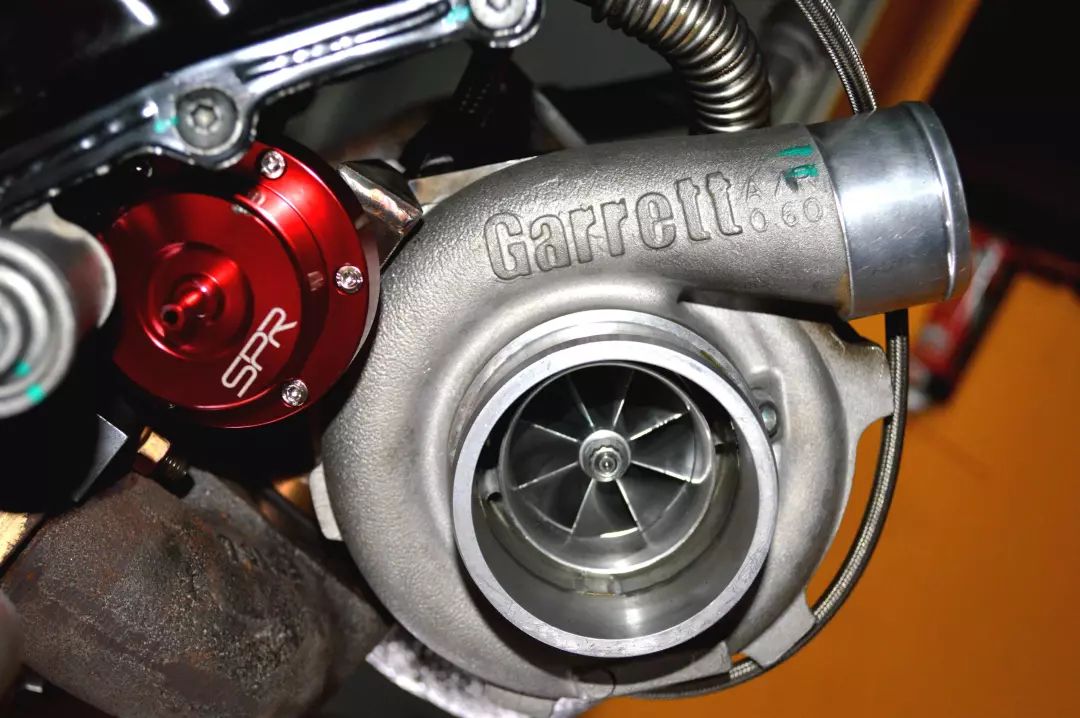

Stage 3 is an upgrade that breaks the factory limits. The factory hardware can hardly handle the power of stage 3, so it involves modifying the core components of the engine, starting with upgrading to a larger turbocharger. Not much more needs to be said; most people don’t need stage 3, and those who do have their understanding.
Stage 3 is about the limit for civilian cars, but it is far from the limit for modifications.
Ready to Flash
(The following actions carry risks)
We are all adults; once you decide to flash, don’t be afraid. Stage 1 is sufficient for the vast majority, so the following content is only applicable tostock stage 1 flashing:

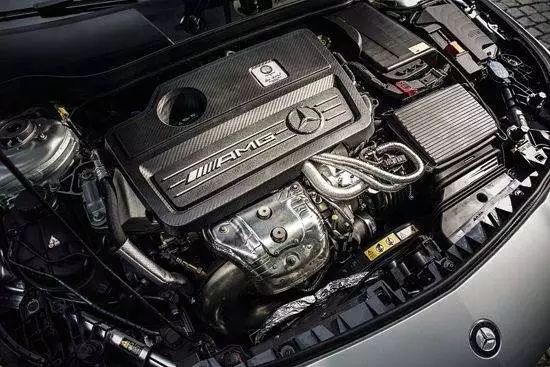

First, fully understand your engine and transmission.
First of all,if your car takes more than 10 seconds to go from 0 to 100 km/h, don’t bother. Don’t make futile struggles. Secondly, turbocharged engines are more suitable for flashing than naturally aspirated engines. Some turbo engines can improve by more than 30%, while naturally aspirated engines only improve by about 5% to 15%, which is quite pitiful.

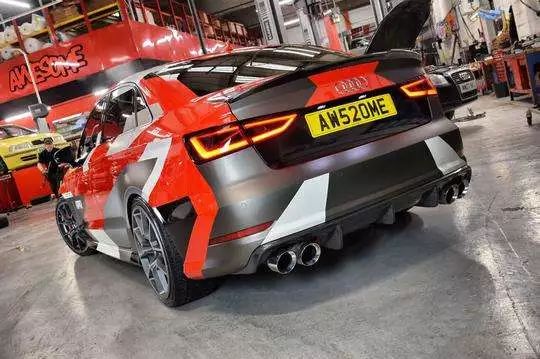

At the same time, even though factory programs are conservative, there is still a lot of potential left in some cars, while others have been nearly maxed out.So you should at least have a rough idea of how much potential your car has left, such as how much extra horsepower and torque the engine and transmission can handle. For cars known to have issues when flashed, it’s better to be cautious, while for cars like the Audi S3, known for their durability and mature tuning atmosphere, the psychological burden of flashing is much lighter.
The most important point is not to blindly believe the saying, “Buy a low-power model for tens of thousands less, then spend a few thousand to flash it into a high-power model.”Some low-power engine versions have different hardware from high-power versions. You can flash, but don’t go all out.
Secondly, choose a reliable tuning company.
Have you ever heard of a car being slower after flashing the ECU than it was stock? I have. Flashing the ECU is a very mature industry abroad, but it has just started in China; some people may mislead you and leave you with a broken vehicle. When choosing a program, you can check online or ask tuning enthusiasts. Every car model has its own community, and there will be recognized tuners within that community.In short, don’t choose those with bad reputations, avoid those where not many people have flashed the same model, and try to choose those that offer post-flash warranties(although these warranties are generally not as reliable as factory ones), to minimize risks.
At this point, you may also encounter “piggyback” and “custom tuning”.

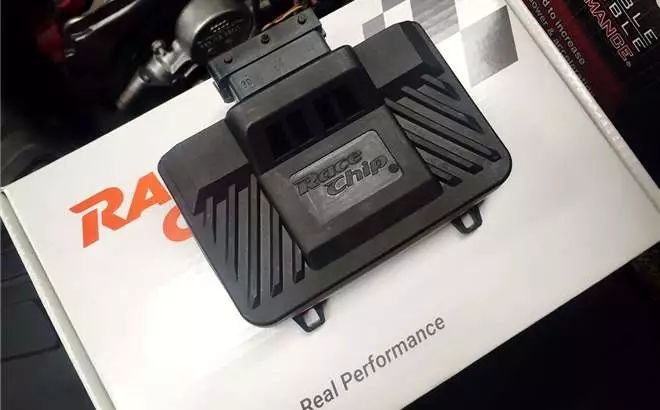

Piggyback differs from flashing the ECU; it looks like a plug-and-play box that modifies engine sensor data to deceive the ECU into adjusting existing parameters to enhance power.The biggest advantage of a piggyback is that you can remove it, and it will be as if nothing happened, generally not affecting the warranty.

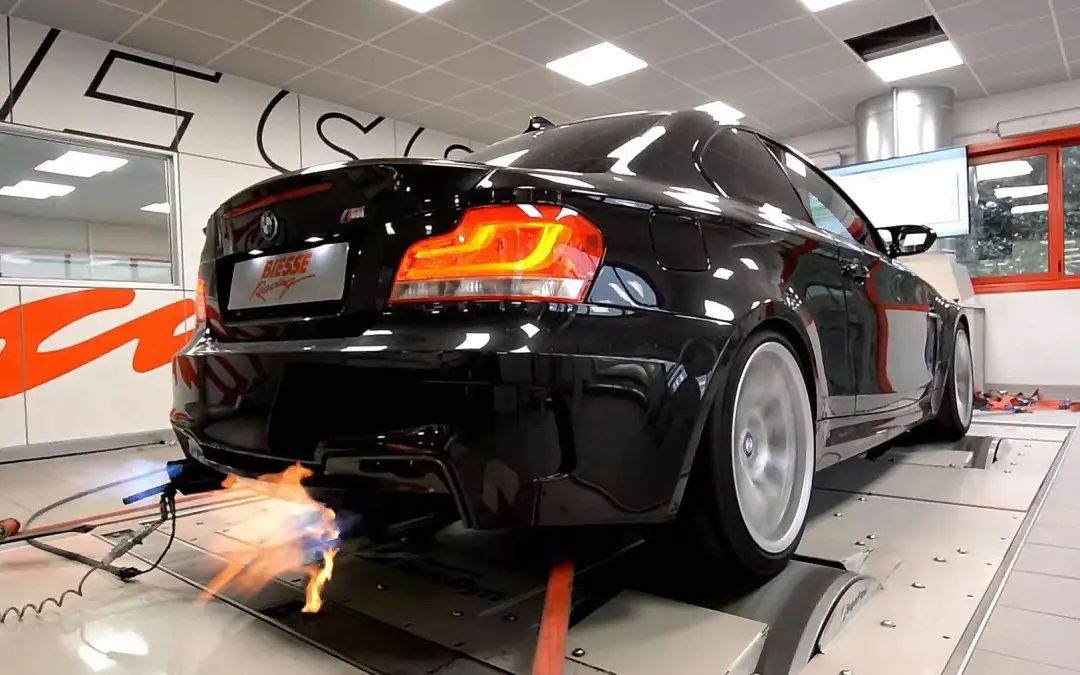

Custom tuning sounds more sophisticated. Before flashing, you first read the vehicle data and send it to engineers (often abroad) for one-on-one optimization based on the existing data, which is then returned for import into the ECU. Next, there are repeated testing and adjustments; if conditions allow, a dynamometer is used; if not, street testing is done until satisfied. You can also make some small requests, such as wanting to hear backfire sounds, by adjusting the ignition timing, much like tailoring a suit when the right size isn’t available in stores.But the problem is, you can’t see who is sitting at the computer tuning for you; you have to rely on their credibility and whether they are competent.
And the most common way to flash the ECU is called “canned” tuning, which, as the name suggests, consists of pre-made programs by tuners for different models and hardware. As long as the car matches, they can directly apply it. Canned tunes, piggybacks, and custom tunes all aim to enhance power; there’s no inherent superiority among them, as there are excellent piggybacks and disappointing custom tunes.However, typically, piggybacks are cheaper with smaller gains; custom tunes are more expensive with larger gains; canned tunes are the most convenient.
A friend of mine who enjoys tuning says that flashing the ECU is like getting a tattoo; some people feel that the experience makes them more perfect, while others may overly demonize it. Once you decide, go for it without hesitation; if you regret it, you can restore it to stock, but it’s like removing a tattoo; there will always be remnants left behind.
However, I think this is more like a gamble between the individual and the car manufacturer.The manufacturer provides you with a warranty, betting that your new car won’t have issues, while you flashing the ECU bets that it won’t have problems before you sell it. The tuning companies in between are like those sexy dealers at online casinos, tempting you to gamble.We can only try to increase our chips through various means to improve our odds.

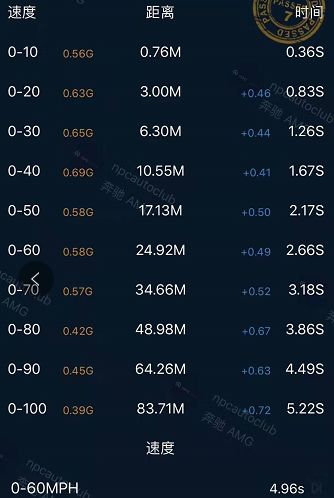

Stock performance: 5.22 seconds from 0 to 100 km/h, weaker than the official rating

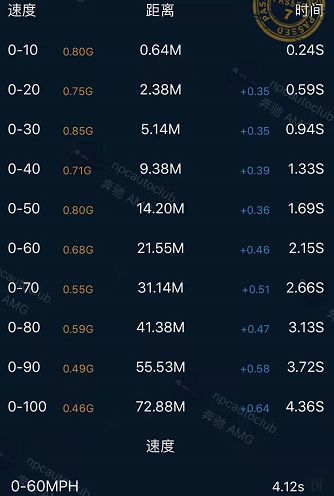

After stage 2, approximately 450 horsepower, 4.36 seconds from 0 to 100 km/h
In a few days, I will update an article about my journey fromgetting into tuning, choosing an ECU, to directly upgrading to stage 2; it’s a process from resistance to realization. There are sacrifices, but also rewards.Here are two pictures before and after the flash to warm things up; can you guess what car it is (SUV)?
*Some images are sourced from the internet
