ET-UARTSWD: An Efficient Tool for Motor and Power Circuit Development
In the process of electronic engineering R&D, the quality of debugging tools directly affects project progress and product quality. From the physical image, we can see that ET-UARTSWD, as a debugging tool specifically designed for engineers, is not only made with high-quality materials in hardware design but also features comprehensive functions, deeply optimizing motor control and power circuit debugging, making it a reliable assistant for multi-platform development such as FPGA, DSP, and ARM. The following analysis of this tool will be detailed from three aspects: material design, functional characteristics, and practical applications.
—
Solid Material: Enduring Industrial Environment

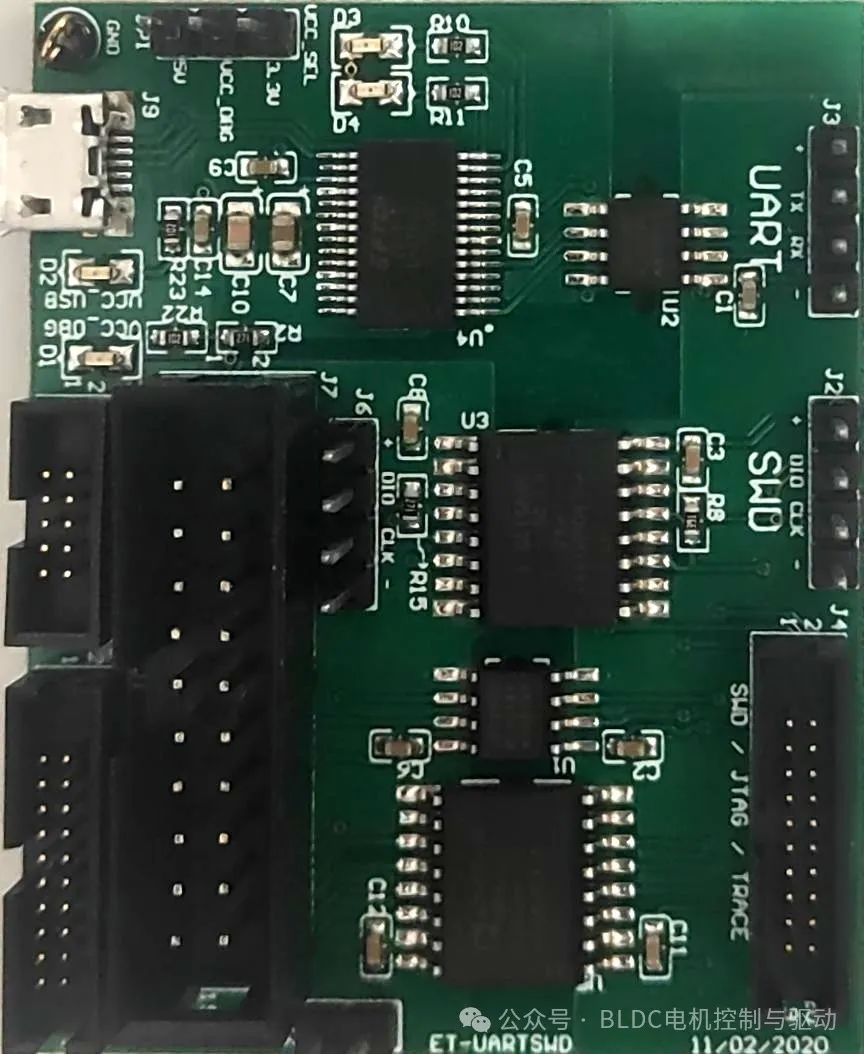

As can be seen from the physical image, the ET-UARTSWD is extremely meticulous in hardware material selection. It adopts a multi-layer PCB design, with outstanding signal integrity and anti-interference capability, providing a solid guarantee for high-speed signal acquisition. Key components such as FPGA and voltage regulator modules are industrial-grade, capable of stable operation in complex environments like high temperatures and vibrations. Additionally, the design of the interface module pin section is compact with clear wiring, reducing the risk of signal crosstalk and improving signal quality.
It is worth mentioning that ET-UARTSWD uses multi-channel power management design, including LDO and DCDC circuit modules, to provide high-quality power supply for different functional units. Moreover, its short-circuit protection and over-voltage and over-current protection features enhance the tool’s durability and lifespan. For engineers frequently dealing with high-power motor drives and high-current power circuits, such hardware quality is undoubtedly trustworthy.
—
Excellent Design: Functional Details Close to Actual Needs
The design details of ET-UARTSWD reflect a deep understanding of user needs. From the physical image, it can be seen that the device provides various interfaces and expansion functions:
1. Multi-interface Compatibility: The device supports common protocols such as UART, SWD, SPI, and I2C, and meets various connection needs through different types of pin interfaces. The pin section is clearly marked to prevent engineers from misconnecting wires during busy debugging work.
2. Modular and Expandable: The modular design of ET-UARTSWD greatly facilitates subsequent expansions. For example, the multiple expansion ports shown in the image not only support separate UART or SWD signal acquisition but can also be used in parallel to meet the multi-task debugging needs of complex circuits.
3. Portable and Reliable: Despite its powerful functions, the ET-UARTSWD has a compact design, making it easy for engineers to carry. While being miniaturized, it still maintains a stable mechanical structure, such as reinforced designs for interfaces and solder joints, ensuring reliability under high-frequency plug-in and unplugging.
—
Comprehensive Functionality: Compatible with Mainstream Platforms like FPGA, DSP, and ARM
FPGA Debugging: FPGA development requires precise analysis of complex logic and timing. ET-UARTSWD can capture multi-channel signals through its high-speed logic analysis function, enabling timing verification and logic waveform analysis. Additionally, the accompanying software supports integration with mainstream development environments (such as Xilinx and Intel FPGA tools), greatly facilitating usage for engineers.
DSP and ARM Debugging: For DSP and ARM platforms, ET-UARTSWD supports in-depth single-step debugging, variable monitoring, and real-time register analysis functions. In motor drive development, this real-time analysis capability helps optimize control algorithms, such as dynamic performance tuning of current and speed loops.
Protocol Adaptability and Compatibility: The interface design of the device shown in the image reflects a high degree of compatibility. Whether it is the TI C2000 series DSP or the NXP ARM Cortex-M platform, ET-UARTSWD can be quickly connected and provide a full set of debugging functions, avoiding the hassle of users needing to purchase additional tools due to platform switching.
—
Application Scenarios: An Efficient Tool for Motor and Power Circuit Debugging
ET-UARTSWD performs exceptionally well in motor drive and power circuit debugging:
1. Motor Control System Debugging: The development of motor control algorithms requires high real-time performance, especially for PI parameter debugging and PWM signal capture. ET-UARTSWD’s high-speed data acquisition function can monitor changes in the current loop and speed loop in real-time, helping engineers quickly optimize parameters. Additionally, it supports high-precision capture of encoder signals, providing reliable data for improving servo control system performance.
2. Dynamic Characteristic Analysis of Power Circuits: In the development of switch power supplies and inverters, ET-UARTSWD’s multi-channel synchronous sampling function can capture voltage and current waveforms in real-time, helping engineers quickly evaluate the dynamic characteristics of power circuits. Its signal acquisition frequency and accuracy are industry-leading, meeting the debugging needs of high-power devices.
3. Automated Testing and Report Generation: The accompanying software supports the writing of automated testing scripts, allowing rapid testing of device performance under different load conditions and generating reports. For instance, when debugging the motor operating state, the system can automatically record parameter changes under different speeds and torques, reducing human operational errors.
—
Conclusion: A Powerful Tool for Engineers
Based on the physical image and functional performance, ET-UARTSWD, with its solid hardware materials, excellent design, and comprehensive functions, has become a top tool in the field of motor and power circuit debugging. Whether it’s complex FPGA timing analysis or motor control algorithm optimization, it can provide stable and reliable support. For engineers focused on motor drive control and power electronics development, ET-UARTSWD is a highly recommended efficient tool.
