Dian Dian Xia wants to learn about RTOS, but doesn’t know where to start, sigh.Real-Time Operating Systems? I’m familiar with them, let me explain slowly.
Ke Ke Jun
Real-Time Operating Systems (RTOS) are widely used in consumer electronics, entertainment products, home appliances, industrial equipment, medical instruments, military weapons, and scientific research equipment. They play a critical role in safety-critical fields such as aerospace control systems, automotive industry, banking and finance, robotic systems, security and telecommunications, and traffic control.
Dian Dian Xia The application fields are really broad, I also want to know what the key to learning RTOS is.That must be scheduling, scheduling, scheduling…Ke Ke Jun
RTOS must at least support priority preemptive scheduling, task synchronization and communication should avoid priority inversion, and provide high-precision timers. RTOS often runs on resource-constrained devices, where scheduling resource determinism and scheduling time determinism are important requirements, ensuring that system resources are used within a predetermined time.
Dian Dian Xia I understand a bit, Ke Ke, please continue.Next, we will explore priority-based preemptive scheduling.Ke Ke Jun

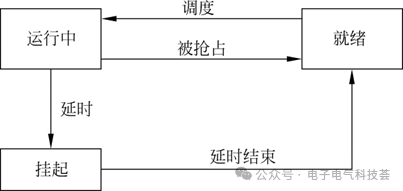

In our example, when a higher-priority task enters the ready state, the current task will stop running. This means a task can be in one of three states: running (executing), ready, and suspended. The behavior of tasks in preemptive scheduling can be described using the following state transition diagram.
Dian Dian Xia So when is a task in the running state? When is it in the ready state?A task can only enter the running state when scheduled by the RTOS; before that, it must be in the ready state, and in a priority-based system, it must also be at the front of the ready queue.Ke Ke Jun
A task leaves the running state when it is suspended or preempted. When a task finishes execution or cannot continue for some reason, it will be suspended, for example, in this case, the task needs to delay for a specific duration. When a task enters the suspended state, it releases the processor’s control, allowing other tasks to run (see the diagram below). The release can be triggered by the task itself or enforced by the RTOS. A running task can release the processor in two ways: either the task completes the necessary operations and exits, or the task relinquishes control of the processor due to an internally generated signal (internal event).
The diagram below lists the reasons for forcibly releasing the processor.Ke Ke Jun

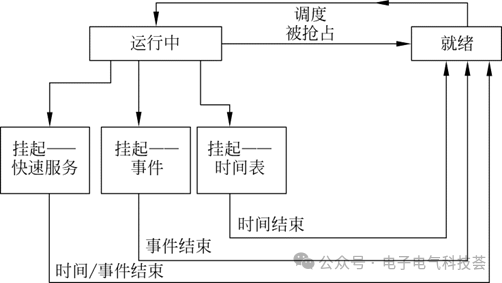

Dian Dian Xia Is there a task state model for reference?The diagram below is a general model of task states, and the detailed process is described below.Ke Ke Jun
When preemption occurs, a task will be forced to relinquish the processor even if it has not completed, at this point the task is not suspended but will return to the ready queue. The position of the task in the queue is determined by its priority, and it will wait in the queue until the next scheduling. When conditions are met, the task will transition from the suspended state to the ready state, for example, after completing an event, after a specific time, or a combination of certain events and time. Different tasks have different suspended states.
Simple Example

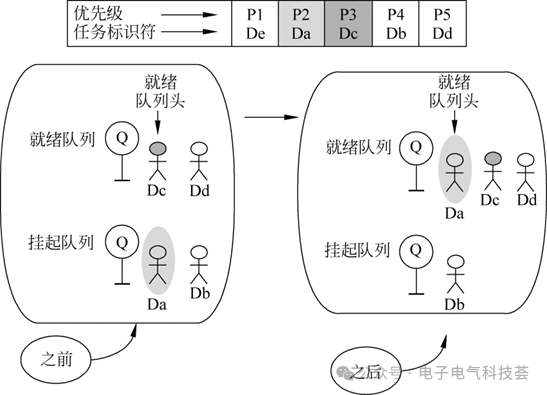

If needed, the task model can be further expanded to show task creation and deletion. In a priority-based system, the readiness and rescheduling of tasks can become quite complex. The diagram below is a simple example that shows the impact of priority on the position of tasks in the ready and suspended queues, and how the ready queue changes when tasks become ready.
Dian Dian Xia I’ve learned a lot, but I still have a small question. Can you explain “rescheduling”?Rescheduling is the process of determining which task to run next, and can also be translated as re-scheduling.Ke Ke Jun
