Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

This Issue’s Paper Share

2024

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

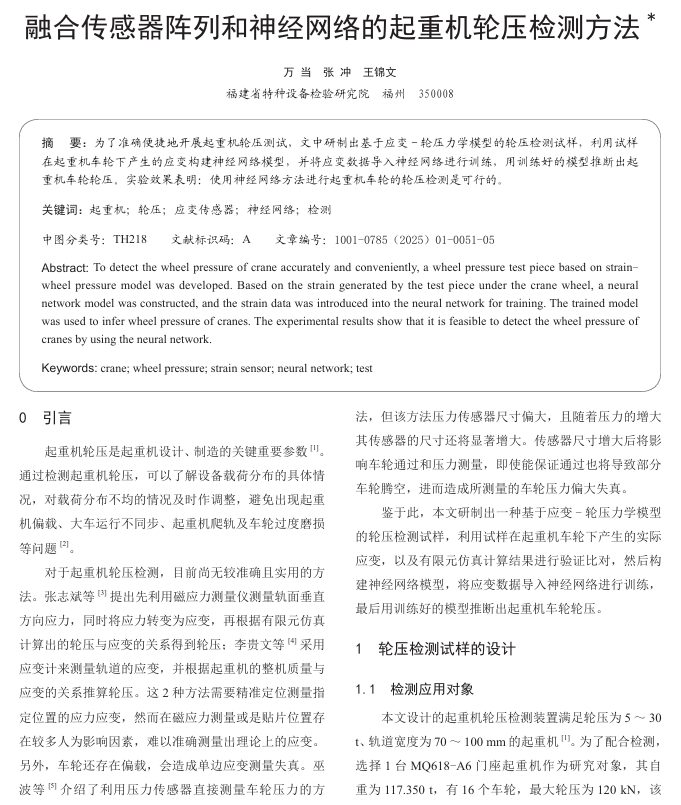

Authors: Wan Dang, Zhang Chong, Wang Jinwen

Abstract: To accurately and conveniently conduct crane wheel pressure testing, this paper develops a wheel pressure detection sample based on the strain-wheel pressure model. The strain generated under the crane wheel is used to build a neural network model, and the strain data is imported into the neural network for training. The trained model is then used to infer the crane wheel pressure. Experimental results show that using the neural network method for crane wheel pressure detection is feasible.

Keywords: Crane; Wheel Pressure; Strain Sensor; Neural Network; Detection

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

Crane Wheel Pressure Detection Method Using Sensor Array and Neural Network

– END –
