For many IoT devices, having a small and flexible file system is crucial.
There are not many file systems that run on MCUs, and most people should know about the FatFS file system. Today, I will talk about the content of FatFS and LittleFS, as well as some differences between them.
1. File System FatFS
FatFs is a generic file system (FAT/exFAT) module for implementing the FAT file system in small embedded systems.
Website:
The FatFs component is written following ANSI C (C89) and is completely separated from the disk I/O layer, thus it does not depend on the hardware platform. It can be embedded into resource-constrained microcontrollers such as 8051, PIC, AVR, ARM, Z80, RX, etc., without any modifications.
— from Baidu Encyclopedia
Features
a. DOS/Windows compatible FAT/exFAT file system.
b. Platform-independent and easy to port.
c. Very small footprint for program code and working space.
d. Supports various configuration options:
-
Long file names in ANSI/OEM or Unicode. -
exFAT file system, 64-bit LBA, and GPT can store large amounts of data. -
Thread safety for RTOS. -
Multiple volumes (physical drives and partitions). -
Variable sector size. -
Multiple code pages, including DBCS. -
Read-only, optional API, I/O buffers, etc…
If you use STM32CubeMX, it is very easy to use FatFS; with just a few steps, you can turn STM32 into a USB flash drive.
2. File System LittleFS
Few people know about the LittleFS file system, but most people who have used the Mbed OS system should know about it.
Mbed OS is a free and open-source embedded operating system developed by Arm for Cortex-M series processors, specifically designed for IoT development.

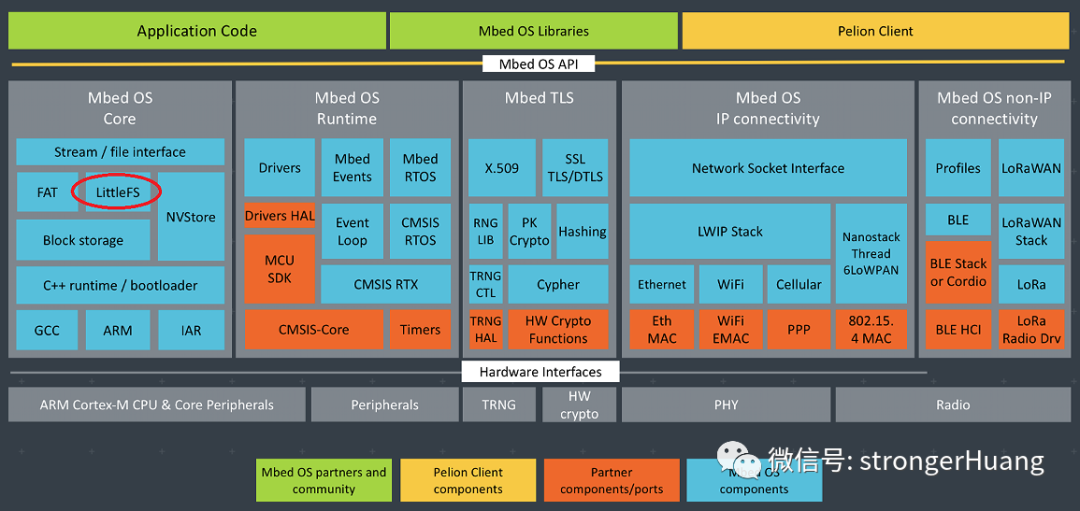

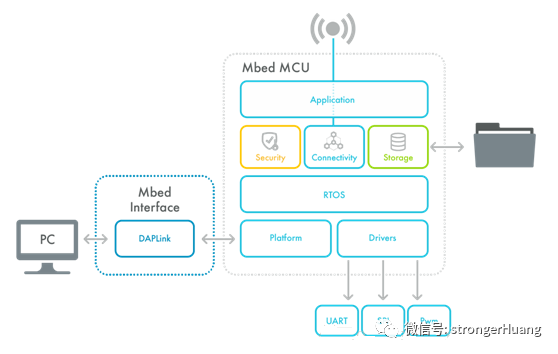

LittleFS is just a part of Mbed, as shown in the block diagram below:
Source code address:

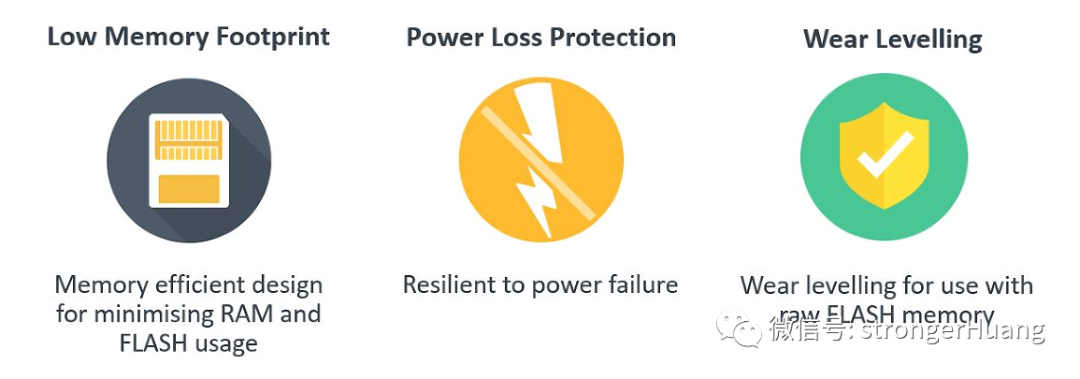

LittleFS Features:
-
Small resource usage: IoT devices are limited by ROM and RAM.
-
Power failure recovery capability: requires the file system to maintain consistency and flush data to the underlying storage.
-
Average wear leveling: Generally, storage supports a limited number of erasures per block, so using the entire storage device is crucial for reliability.
The usage is also quite simple; refer to the official example:
#include "LittleFileSystem2.h"
#include "SPIFBlockDevice.h"
// Physical block device, can be any device that supports the BlockDevice API
SPIFBlockDevice bd(PTE2, PTE4, PTE1, PTE5);
// Storage for the littlefs
LittleFileSystem2 fs("fs");
// Entry point
int main() {
// Mount the filesystem
int err = fs.mount(&bd);
if (err) {
// Reformat if we can't mount the filesystem,
// this should only happen on the first boot
LittleFileSystem2::format(&bd);
fs.mount(&bd);
}
// Read the boot count
uint32_t boot_count = 0;
FILE *f = fopen("/fs/boot_count", "r+");
if (!f) {
// Create the file if it doesn't exist
f = fopen("/fs/boot_count", "w+");
}
fread(&boot_count, sizeof(boot_count), 1, f);
// Update the boot count
boot_count += 1;
rewind(f);
fwrite(&boot_count, sizeof(boot_count), 1, f);
// Remember that storage may not be updated until the file
// is closed successfully
fclose(f);
// Release any resources we were using
fs.unmount();
// Print the boot count
printf("boot_count: %ld\n", boot_count);
}
3. File System Comparison
Every product has its value, and file systems are no exception; each has its advantages and disadvantages. Below are some simple points listing their differences.
1. Resource RAM / ROM Size

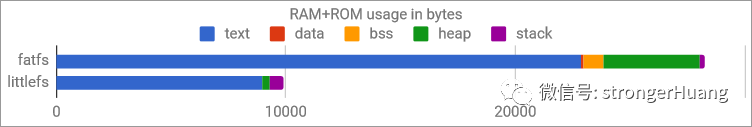

LittleFS is a high-integrity embedded file system in Mbed OS, optimized for use with limited RAM and ROM MCUs.
LittleFS uses 13K ROM and less than 4K RAM, significantly less than FAT.
2. Power Failure Recovery Capability
LittleFS has strong copy-on-write guarantees, and the storage on the disk is always kept in a valid state, making it suitable for systems that may experience random power failures.
3. Wear Leveling
Most storage chips used in embedded devices support a limited number of erasures per sector, and without leveling, the lifespan of embedded devices may be affected.
Reference source:
Disclaimer: This article is sourced from the internet, and copyright belongs to the original author. If there are any copyright issues, please contact me for removal.
