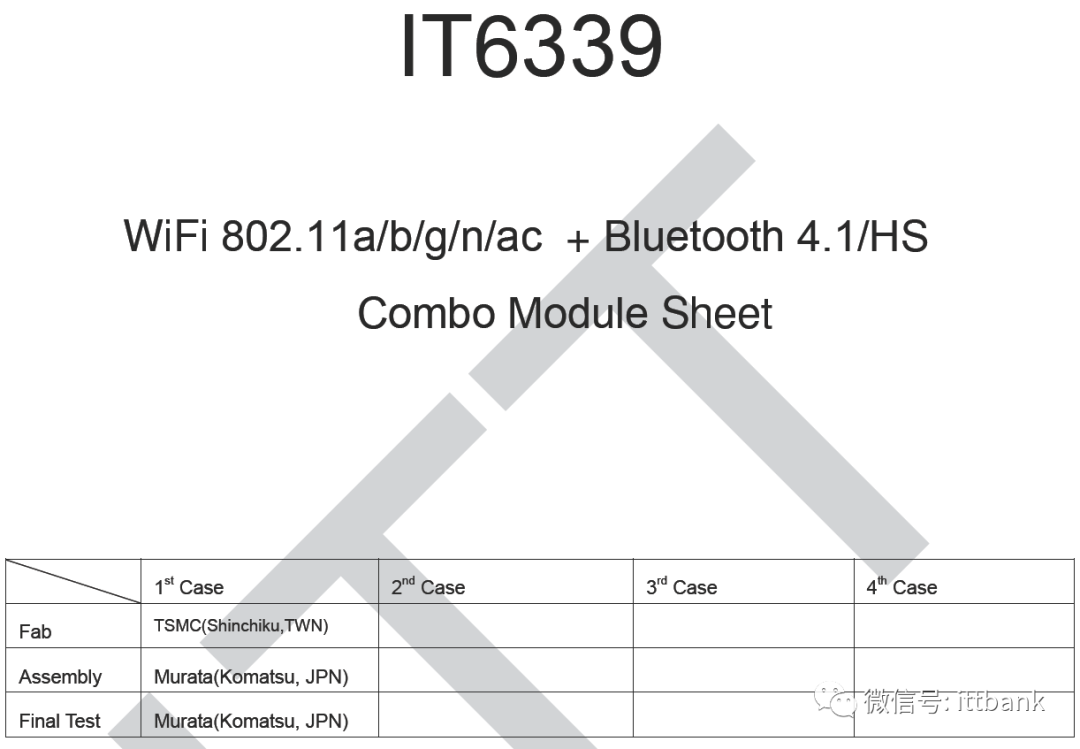

Broadcom 1T1R WiFi Module IT6339 Overview

Overview of IT6339 WiFi Module

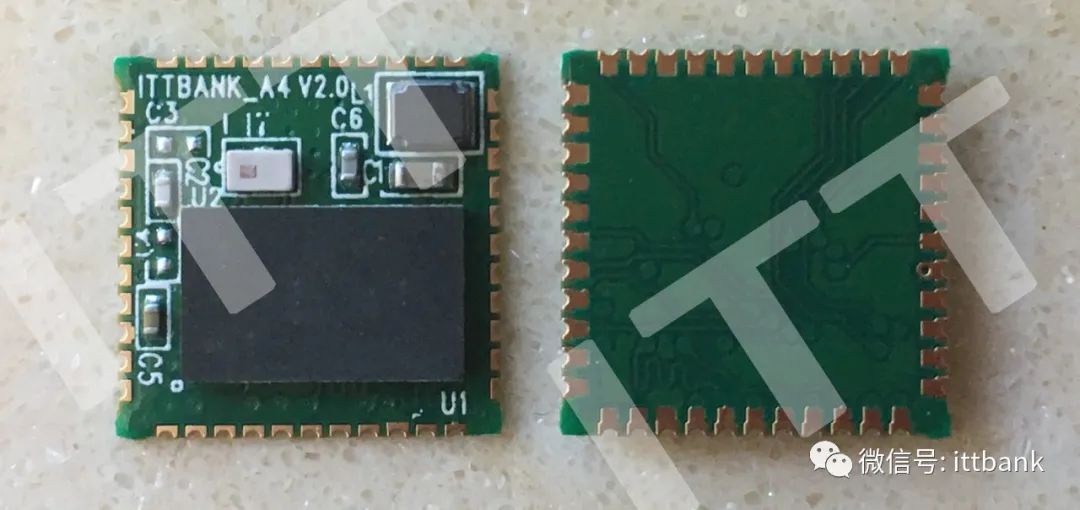

1T1R WiFi Module:

This module supports dual-band 2.4G + 5G, compliant with 802.11a/b/g/n/AC; supports Bluetooth 4.1; equipped with PA amplification function.

It has the following advantages:

• 1. Fast Speed: Supports the latest WiFi standards, 802.11a/b/g/n/AC; supports Bluetooth 4.1;

• 2. Strong Signal: Supports 5G WiFi, with less interference and faster speed, avoiding interference and competition from Bluetooth, Zigbee, and regular 2.4G WiFi signals;

• 3. Bandwidth: 20T/40T/80T;

• 4. Rate: 433.3Mbit/s 1T1R;

• 5. Size: 12mm x 12mm x 2.1mm;

• 6. Low Power Consumption: Widely used in smartphones and tablets, meeting the most stringent mobile power consumption standards;

• 7. High Quality: The module uses top-tier Broadcom WiFi chips and Murata chip-level packaging technology;

• 8. Competitive Price: Significant price advantage compared to similar specifications from Taiwanese AP6255 and AP6335 series;

• 9. Stable Performance: The module integrates a built-in crystal oscillator in a very small size, saving costs for customers and avoiding frequency calibration production processes, as well as issues like frequency offset and oscillation failure from external oscillators;

• 10. Good Compatibility: For customers using the Zhengji series modules, we provide a pin-compatible adapter board for free, allowing customers to produce without modifying hardware design files.

Broadcom BCM4339 Chip + Murata Chip-Level Packaging Technology:

• Supports IEEE802.11a/b/g/n/AC;

• Supports Bluetooth V4.1 + HS;

• SDIO V3.0 interface, compatible with SDIO V2.0;

• Ultra-small size: 8.7mm * 5.4mm * 1.30mm, weight: 158mg;

• ROHS certified;

• Integrated FM;

• Supports dual-band 2.4G/5G;

• Bandwidth: 20T/40T/80T;

• Rate: 433.3Mbit/s 1T1R;

• Supports simultaneous WiFi/BT operation;

• Equipped with PA amplification function;

• Provides compatibility with AP6255/AP6330/AP6335 and Qualcomm 9377 pin adapter boards;

• Provides Android and Linux drivers.

Application Platforms Include:

• Amlogic (Amlogic): S905 S905X S905X2 S905X3 S905W S905D S912;

• Rockchip (Rockchip): RK3128 RK3288 RK3328 RK3368 RK3399;

• Allwinner (Allwinner): H6 H8

• Freescale (Freescale): iMX6 series

• Samsung (Samsung)

Main Applications Include:

OTT boxes, set-top boxes, projectors, tablets, and WiFi-enabled smart devices.

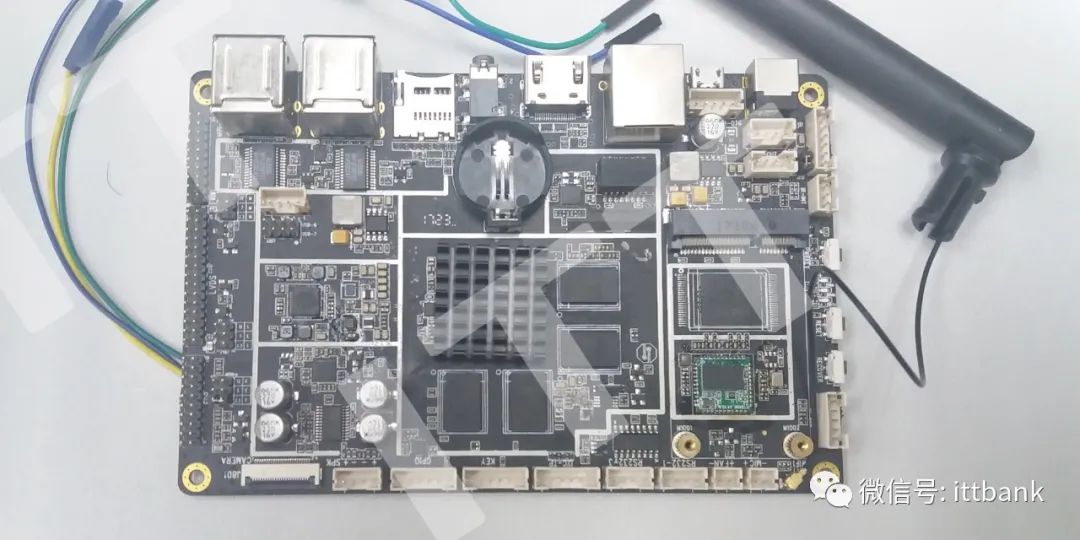

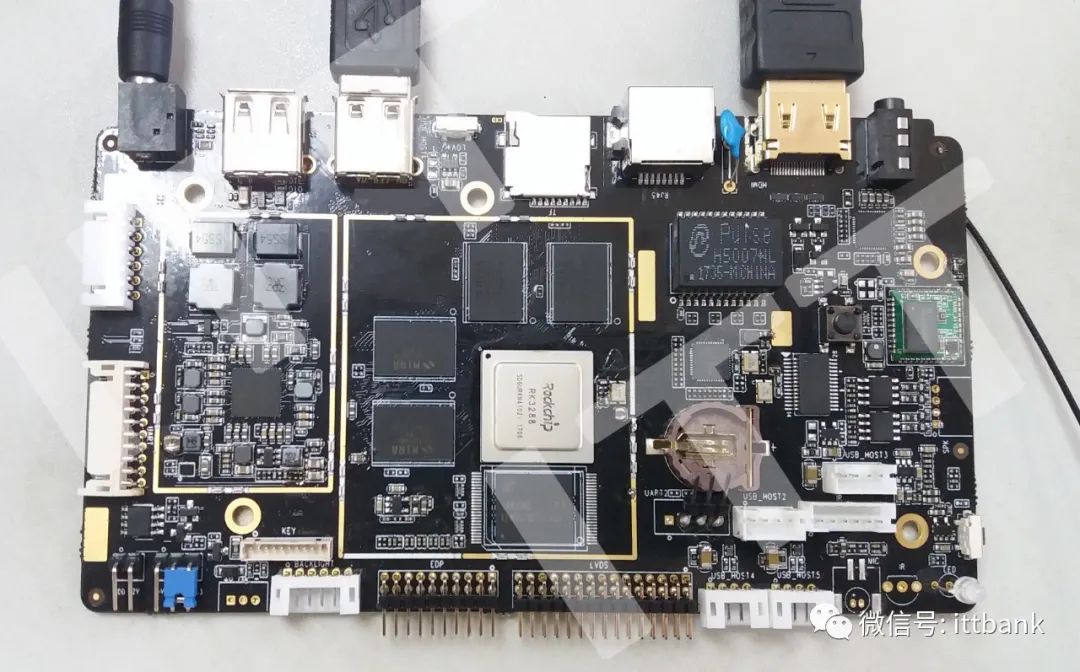

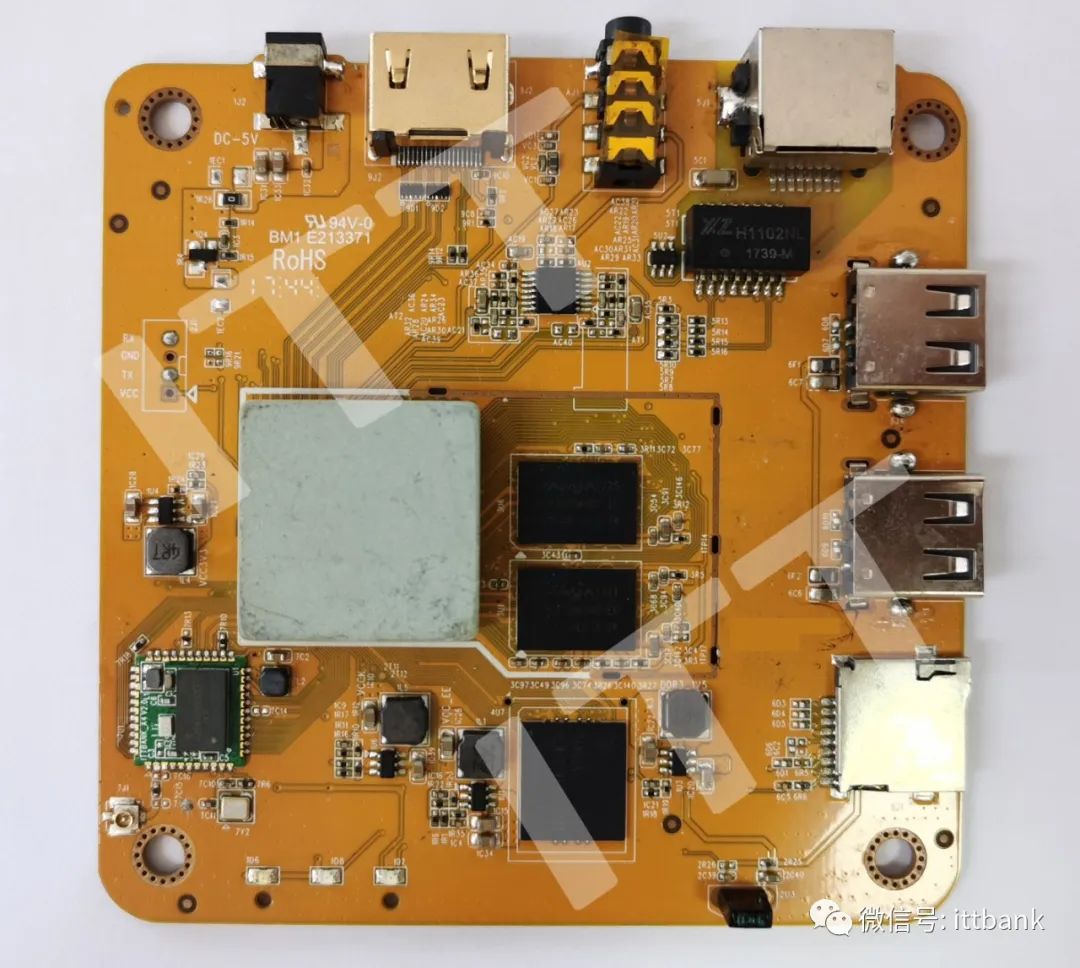

Successful Cases of IT6339 WiFi Module

Contact Information

For inquiries regarding WiFi modules, contactMr. Wu 15999663534

0755-25839333
