In the previous article, we discussed the TLE9877, an intelligent BLDC SoC. Infineon’s H-bridge driver SoC is also very competitive, and the TLE9854 is such a product.
The key features are as follows:1. Integrated 32-bit ARM Cortex M0 core, 40MHz main frequency.2. Built-in 64K Flash, 4K EEPROM, 4KB RAM.3. Built-in MOSFET driver, Charge Pump;4. 10 GPIOs;5. Rich analog ADC interfaces;6. Abundant Timer resources;7. Capture/compare unit for PWM signal generation (CCU6) unit;8. Built-in power LDO;9. Built-in LIN transceiver;Applicable fields:Window and door lifting devices;Sunroofs;Various brushed pumps, etc.;

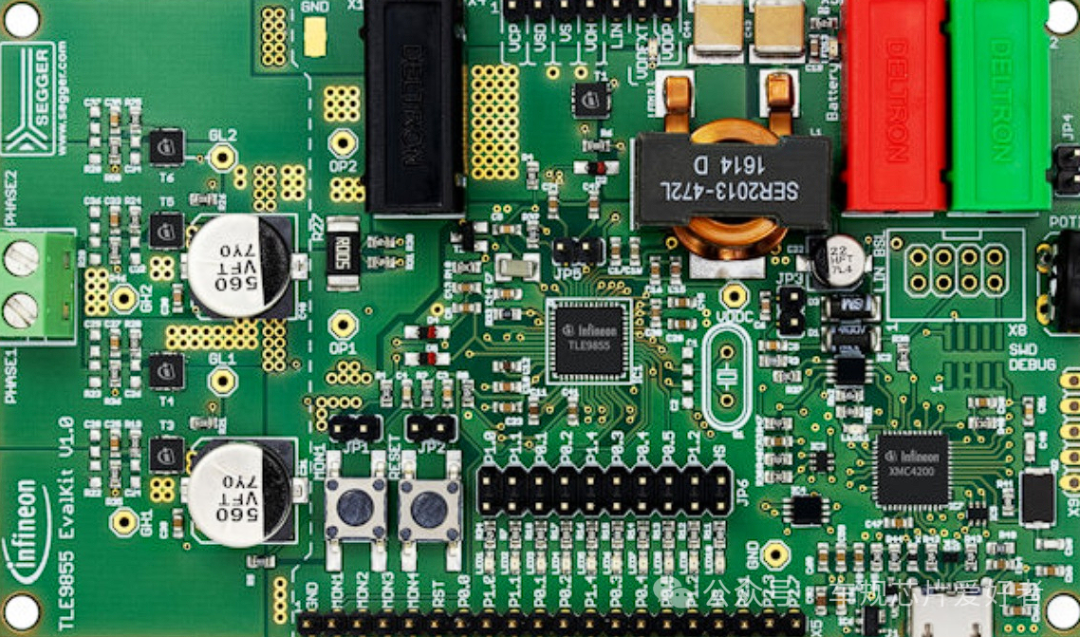

The development board is as follows
