With the rapid development of electronic technology, DC power modules play an increasingly important role in various electronic devices. Optocouplers, as an important electronic component, are widely used in DC power modules for signal isolation and transmission. This article will explore the working principle, characteristics, and specific applications of optocouplers in DC power modules.
01

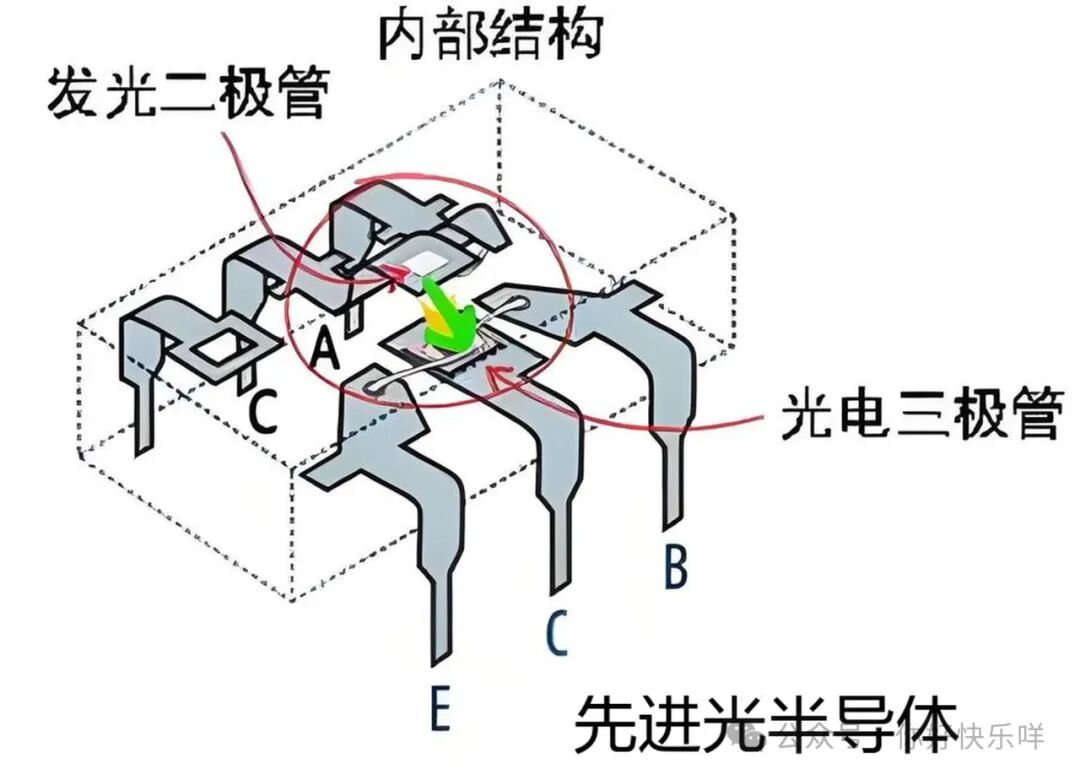

Optocouplers are devices composed of a light-emitting diode (LED) and a light-sensitive element (such as a photodiode, phototransistor, etc.). Their working principle can be simply described as follows: when the LED at the input end is excited by current, it emits a light signal, which is received by the light-sensitive element and converted into an electrical signal. The main characteristics of optocouplers include:
Electrical Isolation: The most significant feature of optocouplers is their ability to achieve electrical isolation between the input and output, with isolation voltages typically reaching several kilovolts (kV), effectively preventing high voltage from affecting downstream circuits.
Signal Transmission: Optocouplers can convert input signals into light signals and transmit them via optical communication, which is almost unaffected by electromagnetic interference, making them suitable for use in noisy environments.
Fast Response: Optocouplers can achieve rapid switching responses, suitable for high-frequency signal transmission, meeting the demands of modern electronic devices for quick responses.
Miniaturization: Optocouplers are relatively small in size, making them convenient for use in space-constrained power modules.
02
The applications of optocouplers in DC power modules mainly focus on the following aspects:
Input-Output Isolation:
DC power modules typically require isolation between the high-voltage input and low-voltage output to protect downstream circuits and user safety. Optocouplers achieve electrical isolation between input and output in the form of light signals, significantly reducing potential safety risks.
Feedback Control:
In switch-mode power supplies, feedback control is a crucial step in achieving voltage stability. Optocouplers can be used to feedback changes in output voltage information to the control circuit, adjusting the conduction time of switching elements (such as MOSFETs) to achieve stable output voltage control.
Current Monitoring:
By using optocouplers in DC power modules, designers can achieve real-time monitoring of output current. Optocouplers can convert current signals into light signals for transmission, ensuring the accuracy and reliability of monitoring signals.
Fault Protection:
In the event of overload or short-circuit faults, optocouplers can quickly transmit fault signals to the control circuit, allowing timely measures to cut off power and protect circuits and load devices.
Switching Power Supplies (SMPS):
Switching power supplies are one of the most common DC power modules, widely used in various electronic devices. Optocouplers in SMPS are mainly used for output voltage feedback control, feeding back the output voltage to the control circuit to achieve closed-loop control, ensuring the stability of the output voltage.
LED Driver Power Supplies:
With the popularity of LED lighting, the demand for optocouplers in LED driver power supplies is also increasing. In LED driver power supplies, optocouplers are used for output current monitoring and control, ensuring that the operating current of the LED remains within a safe range while also achieving efficient power management.
Battery Chargers:
In battery chargers, optocouplers can be used for detecting and controlling charging current. By using optocouplers to feedback the charging status, safety and efficiency during the charging process can be ensured, preventing overcharging or over-discharging that could damage the battery.
03
Power Electronic Devices:
In some industrial power electronic devices, the application of optocouplers is also indispensable. They are used to measure and monitor electrical energy, providing necessary isolation protection to ensure stable operation of the equipment.
When designing DC power modules, selecting the appropriate optocoupler is crucial. Here are some considerations for selection and design:
Isolation Voltage:
Select the appropriate isolation voltage based on the application scenario to determine whether the optocoupler can meet the isolation requirements of the power module.
Response Speed:
For high-frequency switching power supplies, choose optocouplers with fast response speeds to ensure effective signal transmission and feedback.
Operating Temperature:
The performance of optocouplers may vary at different operating temperatures, so consider the temperature range of the working environment when selecting.
Input and Output Current:
Determine the input and output current specifications of the optocoupler to ensure it can operate normally in the power module and meet application requirements.
Package Type:
Select the appropriate package type based on the spatial constraints of the actual application scenario for easy integration into the power module.
Future Development Trends of Optocouplers
With the continuous advancement of electronic technology, the application of optocouplers is also evolving. In the future, the application of optocouplers in DC power modules may present the following trends:
Integration:
With the development of IC technology, future optocouplers may be integrated with other functional modules to form more compact and efficient solutions.
Intelligence:
With the increasing demand for smart power supplies, optocouplers will combine with smart control technologies to achieve more advanced monitoring and control functions, enhancing the intelligence level of power systems.
High-Frequency Applications:
As switching frequencies increase, future optocouplers will need to possess higher response speeds and frequency characteristics to meet the demands of high-frequency switching power supplies.
Application of New Materials:
With the development of new material technologies, new types of optocoupler materials may emerge in the future, offering superior performance to meet the needs of higher-performance power modules.
04
Conclusion
As an indispensable component in DC power modules, optocouplers play an important role in modern electronic devices with their unique electrical isolation and signal transmission characteristics. From switching power supplies to LED driver power supplies, the applications of optocouplers continue to expand, enhancing the safety and stability of power systems. With ongoing technological advancements, the future of optocouplers will be even broader, providing stronger support for the development of the electronics industry. By selecting and applying optocouplers appropriately, designers can fully leverage their advantages, bringing higher performance and reliability to various power modules.
