After completing the previous three in-depth articles on Rust iterators, in this article we will attempt to write our own Rust iterator, that is, to add iterator functionality to our own data.

If any readers want to review the previous articles:

In-Depth Rust Iterators (Part 1)
In-Depth Rust Iterators (Part 2)
In-Depth Rust Iterators (Part 3)

Before We Start

Rust’s native Vec and arrays already support iterator-related functionality:

let mut a = vec![1, 2, 3];

for i in &a {
    println!("{}", i);
}

a.iter_mut().for_each(|i| {
    *i = 100;
});

println!("{:?}", a);

// output
// 1
// 2
// 3
// [100, 100, 100]

If the vec![1, 2, 3] is changed to [1, 2, 3], the effect is the same.

If your data structure is based on Vec or arrays to implement iterators, you can actually use the iterators of Vec or arrays directly, and there is no need to implement it yourself.

However, to better understand the internal principles of iterators and related implementation details, in this article we will attempt to implement an iterator for our own data.

First, you need a simple class:

#[derive(Debug)]
struct Rect {
    a: f32,
    b: f32,
    c: f32,
    d: f32,
}

Implementing an Iterator for the Class

As mentioned in In-Depth Rust Iterators (Part 1), if we want to implement an iterator for our own data, we need to implement the Iterator trait.

impl Iterator for Rect {
    type Item = f32;

    fn next(&mut self) -> Option<Self::Item> {
        //...
    }
}

The function that this trait requires to implement is very simple — just next.

next returns an Option, and if the iterator ends, it directly returns None.

To enable iterator functionality, we need to make a slight modification to Rect, adding an iterator index:

#[derive(Debug)]
struct Rect {
    a: f32,
    b: f32,
    c: f32,
    d: f32,

    iter_index:u8, // Used to count the current iteration position
}

Then, implement the iterator for Rect:

impl Iterator for Rect {
    type Item = f32;

    fn next(&mut self) -> Option<Self::Item> {
        let next = match self.iter_index {
            0 => {
                Some(self.a)
            }
            1 => {
                Some(self.b)
            }
            2 => {
                Some(self.c)
            }
            3 => {
                Some(self.d)
            }
            _ => None,
        };

        self.iter_index += 1;

        next
    }
}

Now you understand why the parameter required by next is &mut self!

Each time next is called, we first return the current value, then increment the iteration index by +1.

If the iteration ends, it returns None.

let rect = Rect {
    a: 1.0,
    b: 2.0,
    c: 3.0,
    d: 4.0,
    iter_index: 0,
};

for i in rect {
    println!("{}", i);
}

// output
// 1
// 2
// 3
// 4

OK, very simple.

However, this implementation has two serious issues:

iter_index greatly affects the iteration; if this value is set incorrectly, the iteration cannot start from the beginning.
It cannot be reused for iteration, meaning you cannot use for i in rect again.

Let’s look at the first issue; if we set iter_index to 3, the result will be:

Yes, it will only output a 4, because our next implementation is based on iter_index.

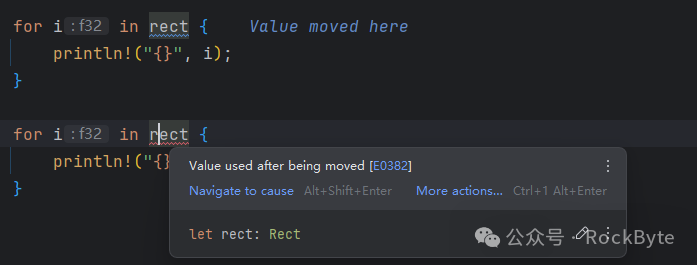

The second issue is that when we try to iterate over rect again:

We get an error like this.

The reason is that for i in rect is syntactic sugar provided by Rust, and that code will actually be compiled into the following code:

let mut iter = IntoIterator::into_iter(collection);
loop {
    match iter.next() {
        Some(i) => {
            println!("{}", i);
        }
        None => break,
    }
}

Looking at the source code of IntoIterator::into_iter, we find:

#[inline]
fn into_iter(self) -> I {
    self
}

IntoIterator::into_iter takes ownership of the parameter, which is why we cannot write for i in rect twice.

To solve the above two problems, let’s see how a correct iterator is implemented.

IntoIterator

Rust provides a trait — IntoIterator — which serves to convert an “iterable thing” (like a container) into an “iterator”.

Here, our Rect is an iterable data structure, and by implementing IntoIterator, it can become an iterator.

#[derive(Debug)]
struct Rect {
    a: f32,
    b: f32,
    c: f32,
    d: f32,
    // Removed iter_index here
}

struct RectIter {
    data: Rect,
    iter_index: u8,
}

impl Iterator for RectIter {
    type Item = f32;

    fn next(&mut self) -> Option<Self::Item> {
        match self.iter_index {
            0 => {
                self.iter_index += 1;
                Some(self.data.a)
            }
            1 => {
                self.iter_index += 1;
                Some(self.data.b)
            }
            2 => {
                self.iter_index += 1;
                Some(self.data.c)
            }
            3 => {
                self.iter_index += 1;
                Some(self.data.d)
            }
            _ => None,
        }
    }
}

impl IntoIterator for Rect {
    type Item = f32;
    type IntoIter = RectIter;

    fn into_iter(self) -> Self::IntoIter {
        RectIter {
            data: self,
            iter_index: 0,
        }
    }
}

Readers will find that we have implemented IntoIterator for Rect, which requires returning a IntoIter type, and IntoIter is actually type IntoIter: Iterator<Item = Self::Item>;, which is an iterator.

Here, we define a new iterator type RectIter and implement Iterator, and finally, the into_iter(self) in IntoIterator returns RectIter.

Now, let’s see the effect:

let rect = Rect {
    a: 1.0,
    b: 2.0,
    c: 3.0,
    d: 4.0,
};

for i in rect {
    println!("{}", i);
}

// output
// 1
// 2
// 3
// 4

We no longer need to define the iteration index in Rect; when using the iterator, the iteration index in RectIter will always start at 0.

However, it still does not solve the problem of reusing it, meaning we cannot iterate over Rect again.

Iteration &

What we actually need to do is very simple: provide an iterator for &Rect, so we can iterate over &Rect.

// Create an iterator structure for &Rect (borrowed type)
struct RectRefIterator<'a> {
    rect: &'a Rect,
    index: usize,
}

// Implement Iterator trait for RectRefIterator
impl<'a> Iterator for RectRefIterator<'a> {
    type Item = f32;

    fn next(&mut self) -> Option<Self::Item> {
        let result = match self.index {
            0 => Some(self.rect.a),
            1 => Some(self.rect.b),
            2 => Some(self.rect.c),
            3 => Some(self.rect.d),
            _ => None,
        };
        self.index += 1;
        result
    }
}

// Implement IntoIterator trait for &Rect (borrowed type)
impl<'a> IntoIterator for &'a Rect {
    type Item = f32;
    type IntoIter = RectRefIterator<'a>;

    fn into_iter(self) -> Self::IntoIter {
        RectRefIterator {
            rect: self,
            index: 0,
        }
    }
}

We directly define the implementation of &Rect for IntoIterator, and the syntax here is a bit long:impl<'a> IntoIterator for &'a Rect.

'a is a lifetime annotation; if you are not familiar with lifetime annotations, you can skip this for now. We can simply understand it as needing to help the compiler determine how long this reference can live if you have a reference type.

At this point, the returned IntoIter type requires us to redefine a RectRefIterator<'a>, which will hold a &'a Rect, that is, a &Rect type.

Thus, we can iterate multiple times.

let rect = Rect {
    a: 1.0,
    b: 2.0,
    c: 3.0,
    d: 4.0,
};

for i in &rect { // Note that this is &rect
    println!("{}", i);
}

for i in &rect {
    println!("{}", i);
}

for i in &rect {
    println!("{}", i);
}

If you want to consume rect, just use for i in rect.

Now, what if I want to support &mut?

Iteration &mut

for i in &mut rect generally indicates that I want to modify elements during iteration, for example, the following modifies values inside an array during iteration:

for i in &mut a {
    *i = 100;
}

Alright, this should be the most complicated one to write among all iterators.

Let’s try to write an iterator according to the above syntax:

struct RectMutRefIterator<'a> {
    rect: &'a mut Rect,
    index: usize,
}

impl<'a> Iterator for RectMutRefIterator<'a> {
    type Item = &'a mut f32;

    fn next(&mut self) -> Option<Self::Item> {

        let index = self.index;
        self.index += 1;

        match index {
            0 => Some(&mut self.rect.a),
            1 => Some(&mut self.rect.b),
            2 => Some(&mut self.rect.c),
            3 => Some(&mut self.rect.d),
            _ => None,
        }
    }
}

Actually, it just changes &Rect to &mut Rect.

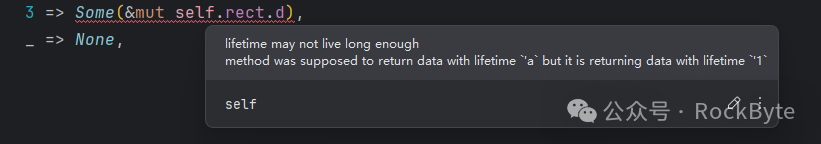

However, this code will not compile; you will get an error message like this:

Here’s a brief explanation: fn next(&mut self) -> Option<Self::Item> is actually fn next(&'a mut self), and this function needs to return a reference with a 'a lifetime, but the Rust compiler does not know where this 'a comes from; the lifetime annotations of Rust functions must have a source.

What if we change it to fn next(&'a mut self)?

That won’t work either, because impl<'a> Iterator function definitions are not like that, and at this point, it seems we are stuck…

Due to the complexity of this part, we will not delve deeper; I will provide one correct answer:

// ----------------------------------------------------
// 1. Custom iterator structure
// ----------------------------------------------------
pub struct RectMutIterator<'a> {
    // Raw mutable pointer to the current f32 element inside Rect.
    ptr: *mut f32,
    // Remaining number of elements.
    len: usize,
    // Lifetime marker: binds the iterator's lifetime 'a to the &mut borrow of Rect.
    _marker: PhantomData<&'a mut f32>,
}

// ----------------------------------------------------
// 2. Implement IntoIterator for &mut Rect
// ----------------------------------------------------
impl<'a> IntoIterator for &'a mut Rect {
    type Item = &'a mut f32;
    type IntoIter = RectMutIterator<'a>;

    fn into_iter(self) -> Self::IntoIter {
        let ptr_f32 = self as *mut Rect as *mut f32;

        RectMutIterator {
            ptr: ptr_f32,
            len: 4, // Total number of fields
            _marker: PhantomData,
        }
    }
}

// ----------------------------------------------------
// 3. Implementing the iterator
// ----------------------------------------------------
impl<'a> Iterator for RectMutIterator<'a> {
    type Item = &'a mut f32; // Returns mutable reference to f32

    fn next(&mut self) -> Option<Self::Item> {
        // 1. Check if iteration is complete
        if self.len == 0 {
            return None;
        }

        // 2. Decrease the count of remaining elements
        self.len -= 1;

        // 3. Core unsafe logic
        unsafe {
            // Get the pointer to the current element
            let current_ptr = self.ptr;

            // Move the internal pointer to the next element
            // offset(1) is a safe abstraction, but it performs unsafe pointer arithmetic internally
            // It ensures that `self.ptr` now points to the next f32 (i.e., the next field)
            self.ptr = self.ptr.offset(1);

            // 4. Convert the current raw pointer back to a safe &mut f32 reference
            // This is safe because we manage the current element through len and ptr,
            // ensuring that the current element is exclusive and its lifetime is correctly bound.
            Some(&mut *current_ptr)
        }
    }
}

Let’s test it:

let mut rect = Rect {
     a: 1.0,
     b: 2.0,
     c: 3.0,
     d: 4.0,
 };

for i in &mut rect {
     *i += 10.0;
 }

println!("{:?}", rect);

// output
// Rect { a: 11.0, b: 12.0, c: 13.0, d: 14.0 }

The result is correct.

Alright, we have implemented several basic iterator types. Except for &mut, which is relatively complex, the others are quite straightforward.

Some Rust Conventions

In fact, there are some conventions regarding iterators in Rust. In In-Depth Rust Iterators (Part 1), we mentioned that there are three equivalent cases in Rust iterators:

for i in &vec is equivalent to for i in vec.iter().
for i in &mut is equivalent to for i in vec.iter_mut().
for i in vec is equivalent to for i in vec.into_iter().

Therefore, we will add these three methods to Rect:

impl Rect {
    fn iter_mut(&mut self) -> RectMutIterator {
        RectMutIterator {
            ptr: self as *mut Rect as *mut f32,
            len: 4,
            _marker: PhantomData,
        }
    }

    fn iter(&self) -> RectRefIterator {
        RectRefIterator {
            rect: self,
            index: 0,
        }
    }

    fn into_iter(self) -> RectIter {
        RectIter {
            data: self,
            iter_index: 0,
        }
    }
}

Now we can use iterator adapter methods and pipelines:

let mut rect = Rect {
    a: 1.0,
    b: 2.0,
    c: 3.0,
    d: 4.0,
};

rect.iter_mut().for_each(|i| {
    *i += 10.0;
});

rect.iter().for_each(|a| print!("{:?} ", a));

println!();

rect.into_iter().for_each(|a| print!("{:?} ", a));

println!();

// output
// 11.0 12.0 13.0 14.0
// 11.0 12.0 13.0 14.0

Reversing

In In-Depth Rust Iterators (Part 3), we finally mentioned a rev(), which is the reverse iteration of the iterator. Here we will also implement it so you can understand why the output results were like that in that article.

We will only implement reverse iteration for &Rect.

To implement reverse iteration, we need to add an end field to RectRefIterator, which serves the same purpose as index, indicating which data should be returned currently.

struct RectRefIterator<'a> {
    rect: &'a Rect,
    index: usize,
    end: usize,
}

Next, in all places where RectRefIterator is used, set end to 4:

RectRefIterator {
    rect: self,
    index: 0,
    end: 4,
}

To allow the iterator to support rev(), we need to implement a <code>DoubleEndedIterator trait, which only requires implementing fn next_back(&mut self), which returns data in reverse.

impl<'a> DoubleEndedIterator for RectRefIterator<'a> {
    fn next_back(&mut self) -> Option<Self::Item> {
        let result = match self.end {
            1 => Some(self.rect.a),
            2 => Some(self.rect.b),
            3 => Some(self.rect.c),
            4 => Some(self.rect.d),
            _ => return None,
        };
        self.end -= 1;
        result
    }
}

Alright, everything is ready; let’s test it:

let mut rect = Rect {
    a: 1.0,
    b: 2.0,
    c: 3.0,
    d: 4.0,
};

rect.iter().rev().for_each(|a| print!("{:?} ", a));

// output
// 4.0 3.0 2.0 1.0

Perfect.

Conclusion

Alright, this series on Rust iterators has finally come to an end.

In this final article, we implemented iterator functionality for our own data.

By manually writing iterators, we not only learned how to implement iterators but also deepened our understanding of data usage in Rust. You will find that Rust always revolves around ownership, borrowing, and mutable borrowing to achieve data access.

This design is not a limitation but a guidance — it forces us to think while writing code:

Who owns the data?
Who is reading or modifying it?
Is the lifetime safe?

It is precisely these seemingly “strict” rules that allow Rust to ensure memory safety without relying on garbage collection while achieving zero-cost abstraction. And iterators are a perfect embodiment of this philosophy: they hand control to the developer while the type system silently guards the safety of every reference.

Now, when you see for x in vec, you may no longer just find it concise and elegant, but also appreciate the intricate, reliable, and intelligent mechanisms that operate silently behind the scenes.

Thank you for making it this far. May you continue to enjoy this “constrained freedom” on your journey with Rust.

A Step-by-Step Guide to Implementing Rust Iterators

Before We Start

Implementing an Iterator for the Class

IntoIterator

Iteration &

Iteration &mut

Some Rust Conventions

Reversing

Conclusion

Leave a Comment Cancel reply

Before We Start

Implementing an Iterator for the Class

IntoIterator

Iteration &

Iteration &mut

Some Rust Conventions

Reversing

Conclusion

Related posts

Leave a Comment Cancel reply
