Four-level Frequency Shift Keying (4FSK) is an important branch of digital modulation technology, representing four-level symbols (each symbol carries 2 bits of binary information) through four different frequency carrier signals. It is widely used in fields such as wireless communication and industrial control. Its core advantages lie in strong anti-interference capability and low implementation complexity, making it particularly suitable for scenarios with poor channel conditions.01Basic Principles of 4FSK4FSK groups the input binary data stream into pairs of 2 bits, mapping them to four quaternary symbols (0, 1, 2, 3), with each symbol corresponding to a unique carrier frequency. A typical frequency allocation scheme is as follows:

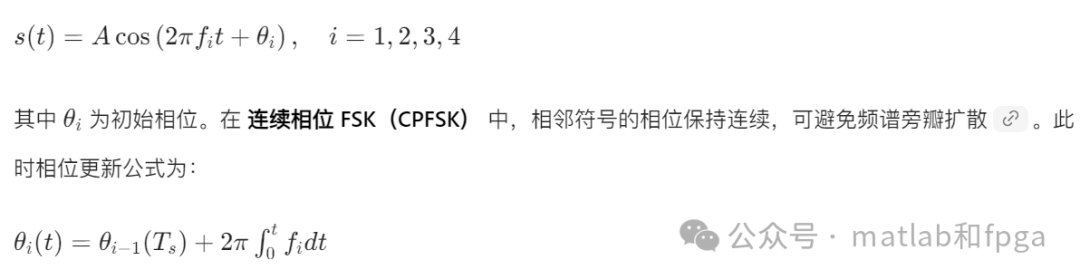

The modulator selects the corresponding carrier frequency based on the input symbol to generate the modulated signal. Assuming the symbol period is Ts and the carrier amplitude is A, the time-domain expression of the 4FSK signal is:
024FSK DemodulationBasic Principles

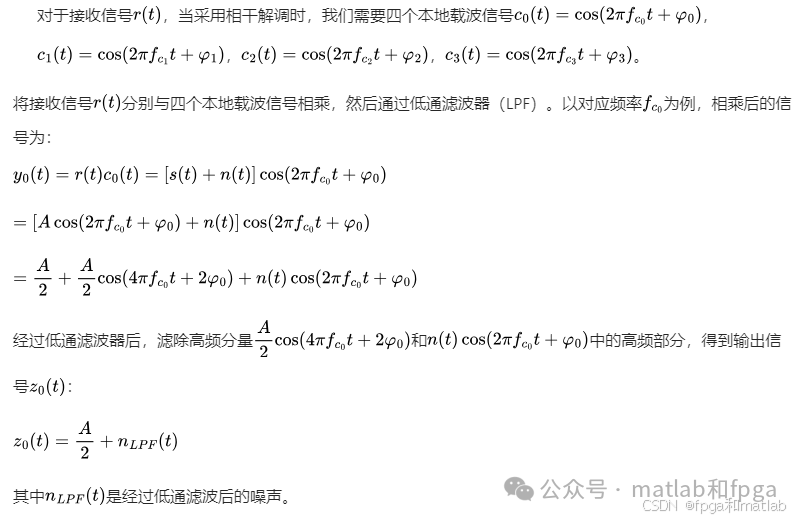

Coherent demodulation requires a reference signal that is in phase and at the same frequency as the carrier. By multiplying the received FSK signal with two reference signals (frequencies f1 and f2) and then passing through a low-pass filter to remove high-frequency components, two baseband signals can be obtained. By comparing the amplitude or phase difference of these two baseband signals, it can be determined whether the received digital information is “1” or “0”. Coherent demodulation has high performance but requires strict synchronization and phase matching. The specific demodulation circuit for coherent detection is a synchronous detector. Coherent demodulation requires locally generated carrier signals that are in phase and at the same frequency as the transmitter.
03Performance Analysis of 4FSK Modulation and Demodulation System
| Indicator | 4FSK | QPSK |
|---|---|---|
| Bandwidth Efficiency | Low (requires larger frequency spacing) | High (phase modulation saves bandwidth) |
| Noise Resistance | Excellent (frequency diversity effect) | Good (depends on phase synchronization accuracy) |
| Implementation Complexity | Low (non-coherent demodulation is simple) | High (requires strict phase synchronization) |
04
MATLAB Simulation of 4FSK Modulation and Demodulation System
Complete runnable code has been uploaded by the author to CSDN, using version matlab2022a:
(This program includes a brief explanation of the program and a video of the operation steps)
https://download.csdn.net/download/ccsss22/90240618

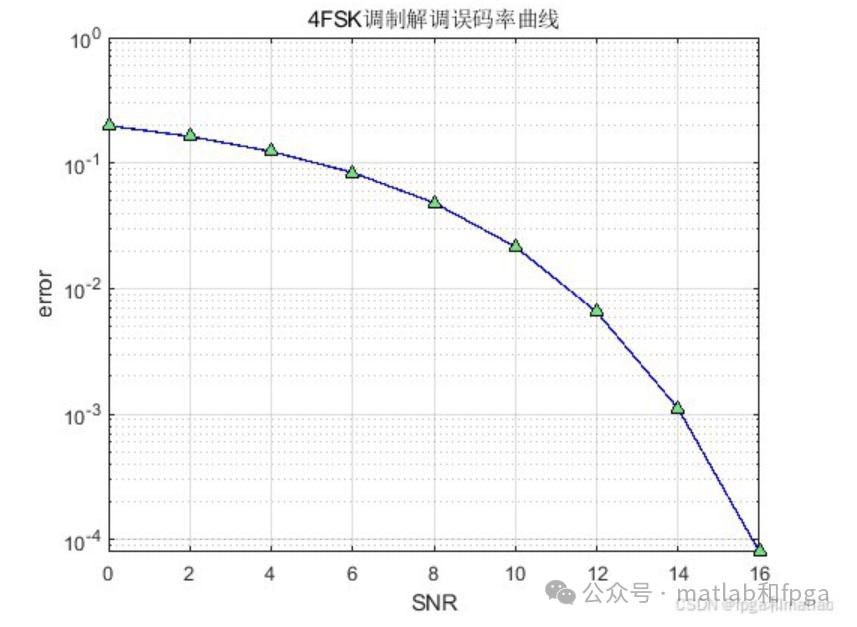

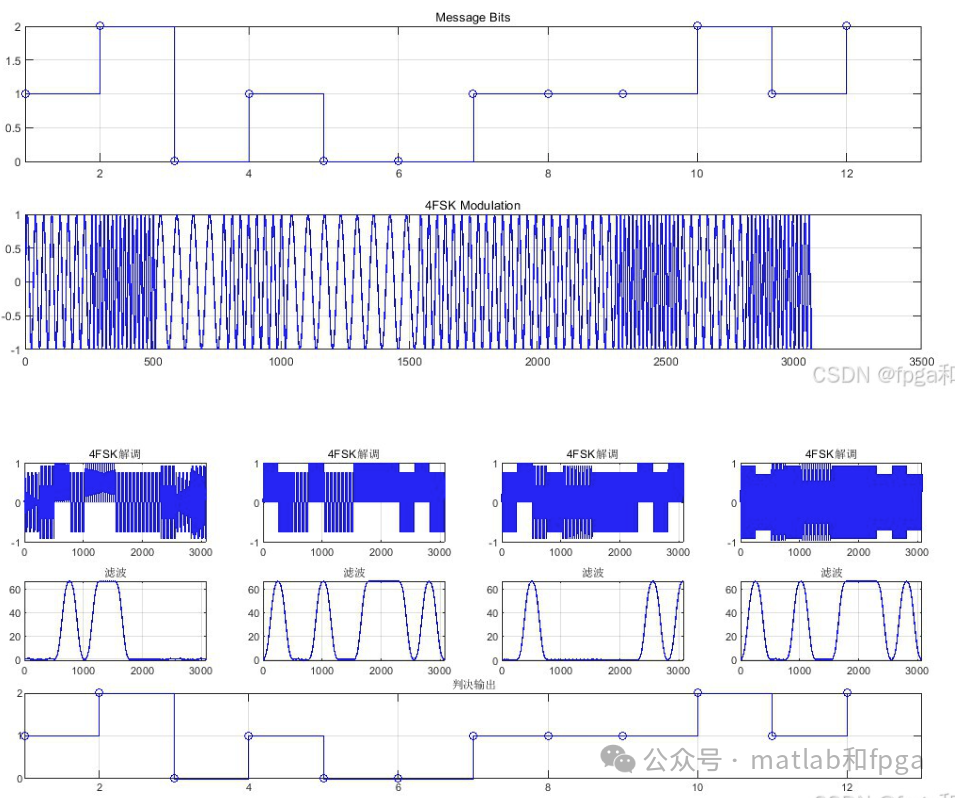

The simulation results are as follows:
04Conclusion4FSK modulation and demodulation technology occupies an important position in the field of wireless communication due to its strong anti-interference and simple implementation characteristics. Its core principle is to achieve data transmission through frequency mapping, with demodulation methods divided into coherent and non-coherent categories. The mathematical model can be quantified through spectral analysis and bit error rate formulas. In the future, combined with advanced coding technologies and Software Defined Radio (SDR) platforms, 4FSK is expected to play a greater role in emerging fields such as the Internet of Things (IoT) and Vehicle-to-Everything (V2X).
