HLK-B35S is a cost-effective wireless communication module launched by Hailin Technology, integrating BLE 5.2 Bluetooth and Wi-Fi 802.11b/g/n functionalities, focusing on ultra-low power consumption and compact design, suitable for IoT terminal devices, smart homes, wearable devices, and other scenarios sensitive to power consumption and size.
1
Product Introduction
HLK-B35S
The core competitiveness of HLK-B35S lies in its dual-mode wireless communication capability and extreme power control.
In traditional IoT applications, devices often need to support both Bluetooth and Wi-Fi simultaneously, for example, a smart lock requires Bluetooth for close-range control and Wi-Fi for remote management.
Previously, such requirements often necessitated two separate communication chips, which not only increased hardware costs but also led to higher power consumption and larger PCB footprint. The HLK-B35S effectively solves this problem by integrating two communication protocols into a single chip, enabling device manufacturers to achieve more flexible network connection solutions at a lower cost.
HLK-B35S Data Link:
https://h.hlktech.com/Mobile/download/fdetail/267.html
2
Product Features
HLK-B35S
BLE 5.2 Bluetooth + 2.4G WiFi

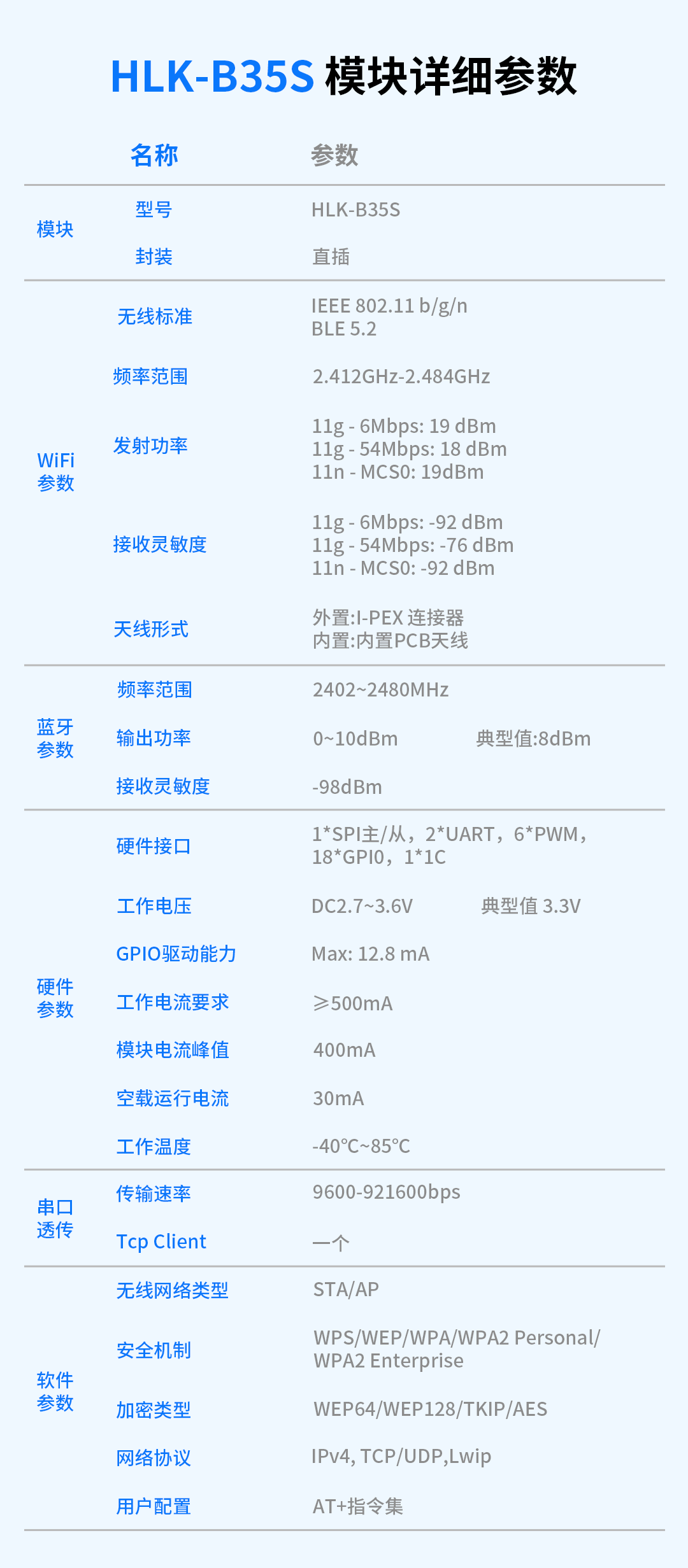

HLK-B35S Bluetooth module synchronously supports BLE 5.2 and WiFi 2.4GHz, with a Bluetooth transmission range of 40-100 meters and WiFi transmission power of 18-19dBm.
The network modes of the HLK-B35S Bluetooth module support STA/AP/mixed mode, with BLE assisting WiFi network configuration, simplifying the device networking process.
Microamp-Level Ultra-Low Power Consumption
The HLK-B35S Bluetooth module supports the BLE 5.2 Bluetooth protocol, with a receiving mode current of 30mA and a low-power standby mode consumption as low as 200uA.

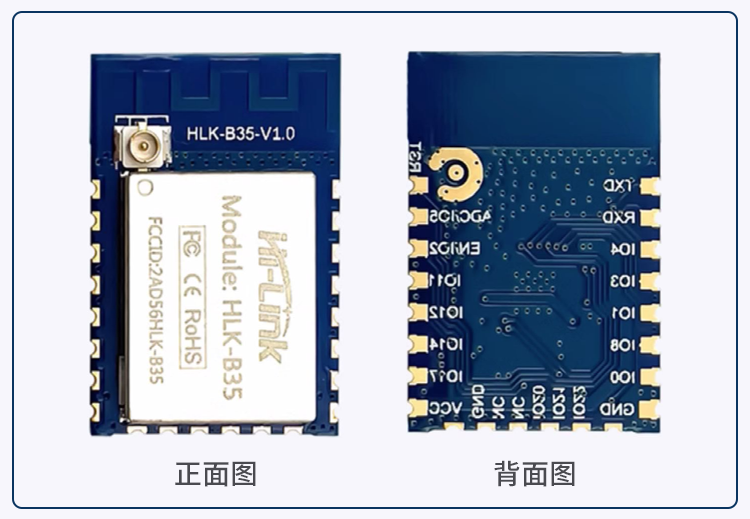

The module is compact, measuring only 24x16x2mm, making it very suitable for products such as water and electricity meters and wearable devices that have strict requirements for module size and power consumption.
High Performance with Firmware Upgrade Support
The HLK-B35S Bluetooth module adopts a 32-bit RISC architecture CPU, with 288KB RAM and 2MB Flash, supporting firmware upgrades to ensure long-term compatibility.
Rich Peripherals and Simple Applications
The HLK-B35S Bluetooth module provides UART (supporting adjustable 9600-921600bps), PWM, GPIO, SPI, and ADC, facilitating connections with various sensors and actuators.
3
Application Scenarios
HLK-B35S
The ultra-low power characteristics of the HLK-B35S module make it particularly outstanding in battery-powered devices. For example, in applications such as smart water meters and wearable devices, the module’s standby current can be as low as 200μA, while the peak power consumption during data transmission is also kept within a reasonable range, significantly extending the device’s battery life.
