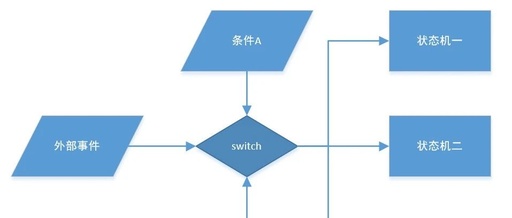

execution flow

Input Events to State Machine #include "stdio.h" #define EXECUTE_VOID(func) {if((func)!=NULL) (func());} typedef void (*select_machine_t)(void); typedef enum _event_index{ event_index_1 = 0, event_index_2, event_index_3, event_index_end} event_index_e; typedef enum _status_index{ status_index_1 = 0, status_index_2, status_index_end} status_index_e; void machine_1(void);void machine_2(void);void machine_3(void);void machine_4(void); select_machine_t select_machine[event_index_end][status_index_end] = { {machine_1, machine_2}, {NULL, machine_3}, {machine_4, NULL}}; void machine_1(void){ printf("machine_1\r\n");} void machine_2(void){ printf("machine_2\r\n");} void … Read more
