RK3128 Core Board / Custom Solutions Overview

1. Product Introduction

1. Product Overview

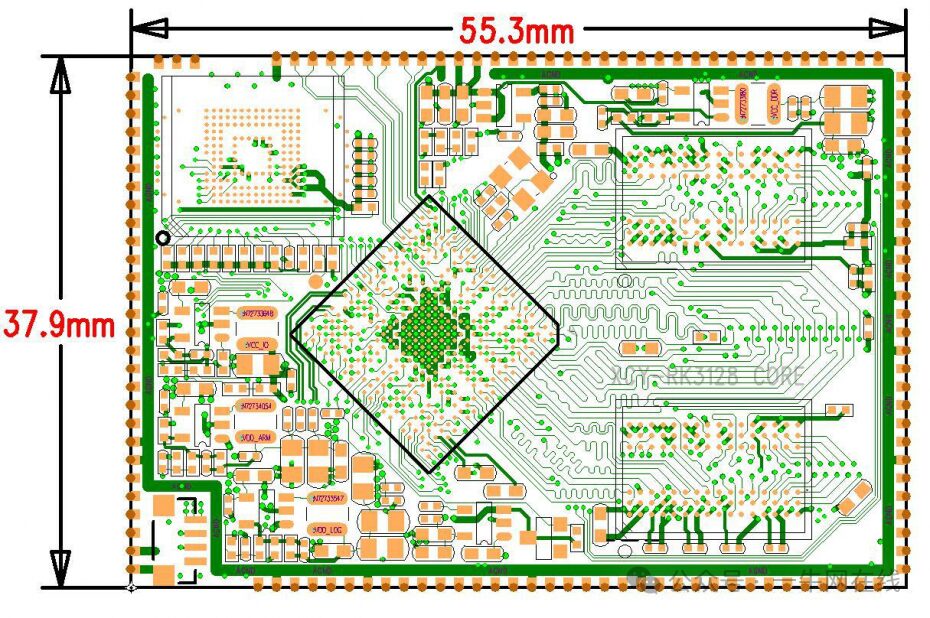

The RK3128 core board is a high-performance core board based on the quad-core Cortex-A7, using the Rockchip RK3128 quad-core Cortex-A7 1.3GHz processor. It offers various storage configuration options, allowing users to quickly implement project development by simply expanding the functional baseboard. The core board features a compact and aesthetically pleasing layout, with dimensions of only 55.3mm * 37.9mm, saving more valuable space.

RK3128 Core Board / Custom Solutions Overview

The core board design adopts a stamp hole form, which is stable and reliable, fully exposing the chip’s capabilities, with optimal performance in data transmission and expandability, featuring gold-plated pins that are corrosion-resistant.

2. Application Range

This product is mainly used in military, automotive, medical, tablets, robotics, drones, instrumentation, industrial computers, rugged machines, monitoring, human-machine interface interactions, network cameras, and other intelligent products.

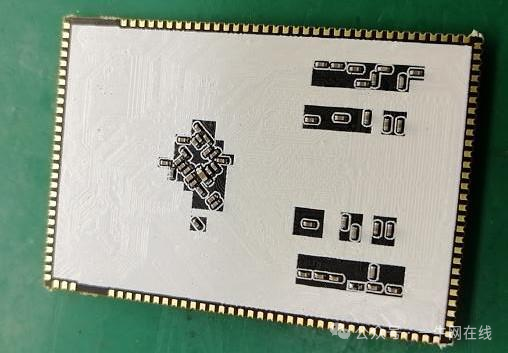

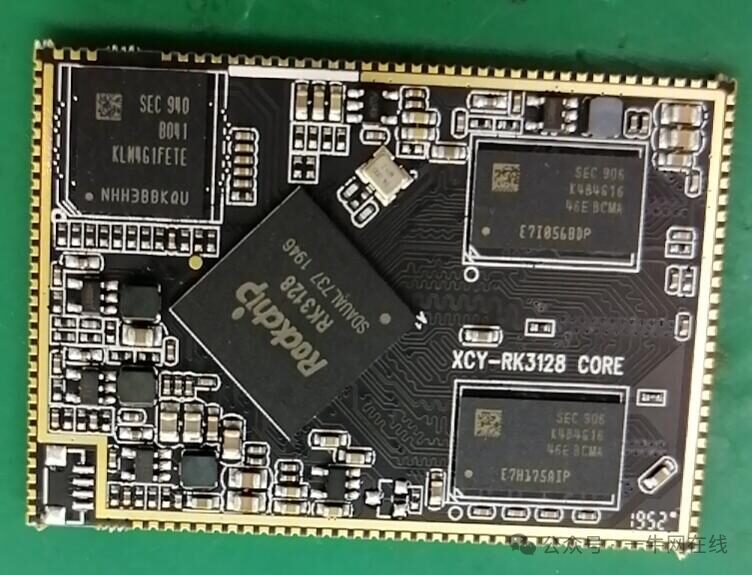

3. Product Images

RK3128 Core Board / Custom Solutions Overview

RK3128 Core Board / Custom Solutions Overview

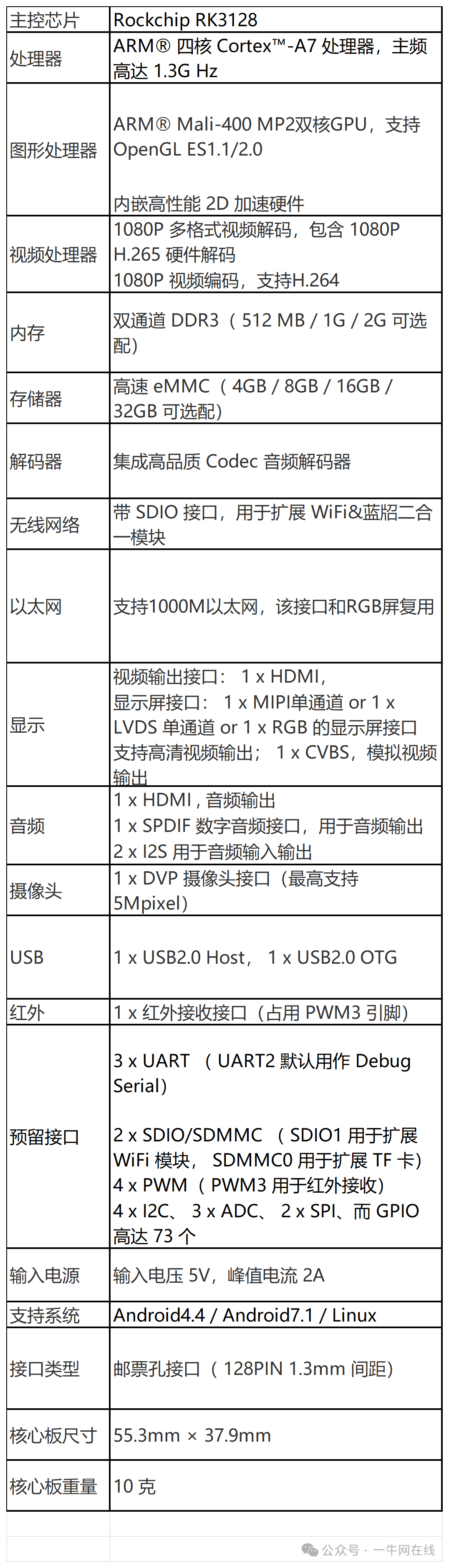

2. Specifications

RK3128 Core Board / Custom Solutions Overview
