First Impressions of High-Performance Domestic Dual-Core Bluetooth MCU

The Breadboard Community – Review Center is currently conducting a review activity for the Furui Kun Development Board. I received a board from the administrator to experience it in advance. Everyone can apply by themselves, 300 boards, with a high “hit rate”.

Scan to Apply for Furui Kun FR3068E Development Board

Now, let me give you an early experience of this high-performance dual-core Bluetooth SoC and its evaluation board. This chip features the CM33 ARM core, with a maximum clock speed of 156MHz, and a Bluetooth co-processor with a clock speed of 48MHz. This combination is quite impressive. Next, let’s explore what wonderful experiences this configuration can bring to users.

FR3068E-C Chip Resources and Performance

The FR306x-C series chips are low-power, high-security high-performance wireless MCUs, equipped with Bluetooth BR/EDR/BLE transceivers and controllers, as well as a CAN FD bus controller, making them very suitable for applications in various fields such as industrial and automotive electronics.

The FR306x-C complies with Bluetooth V5.3 standards, supporting BR 1Mbps GFSK, EDR 2Mbps π/4-DQPSK, 3Mbps 8DPSK; BLE 1M/2Mbps GFSK, 125K/500K multiple modes, supporting separate enabling and disabling of different modes, and supporting Bluetooth multi-master and multi-slave connections.

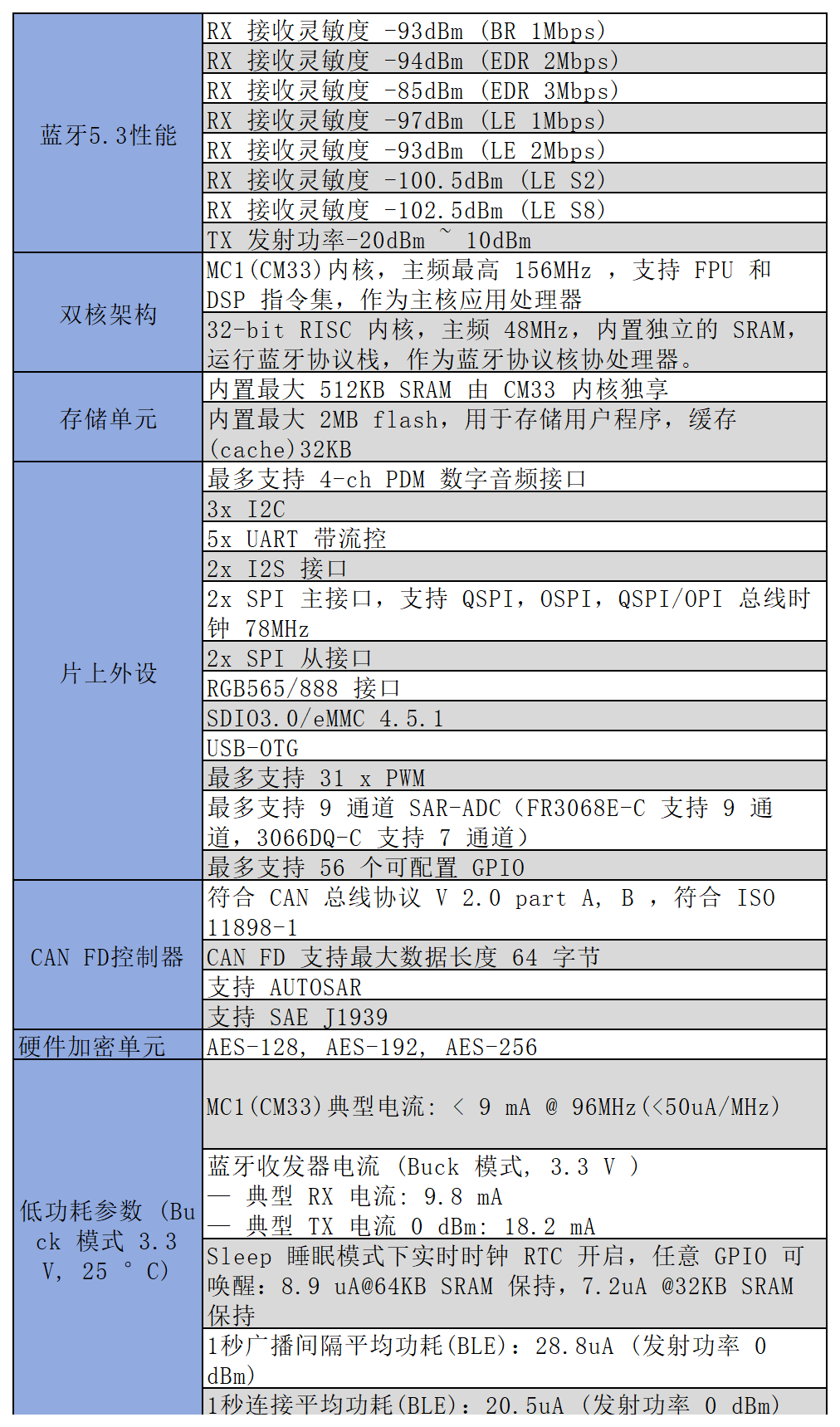

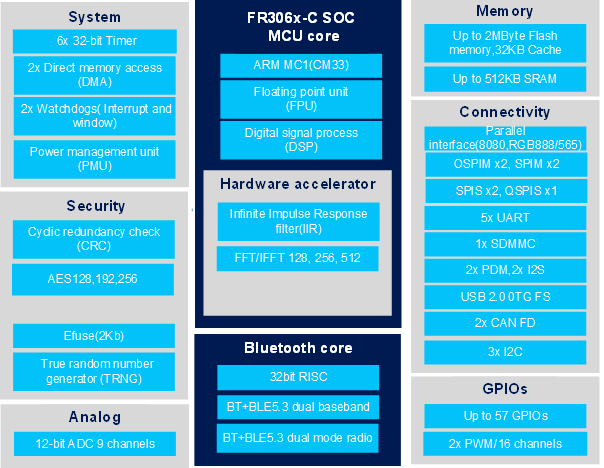

The FR306x-C supports the AUTOSAR software framework; it has up to 2 independent CAN FD controllers that are downward compatible with CAN 2.0 A/B. In addition, I have compiled a table and block diagram of detailed features and resources for everyone to refer to:

FR3068E-C Evaluation Board Resource Introduction

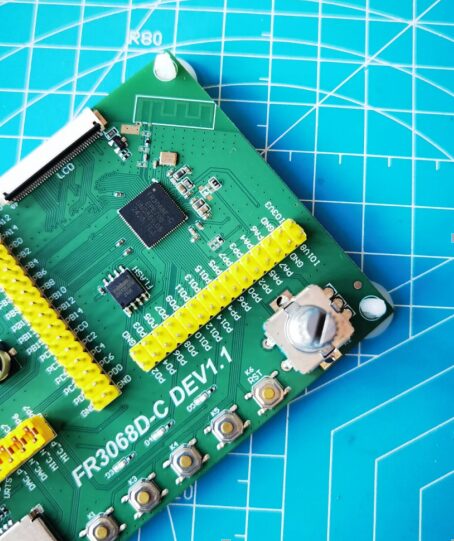

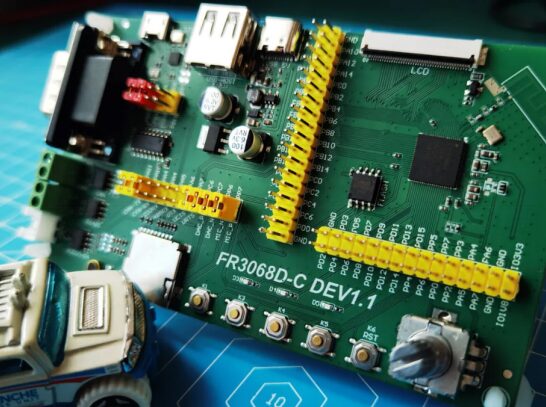

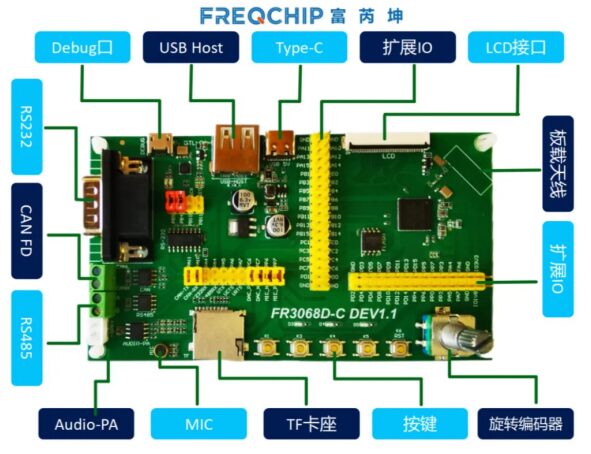

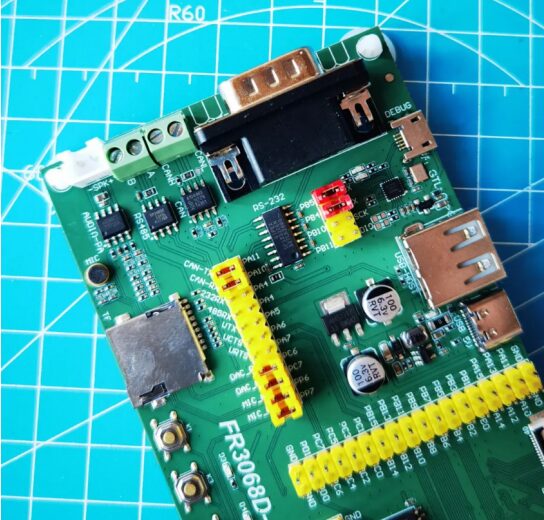

Let me first show a few static photos. The evaluation board comes with an LCD screen and peripherals including RGB888/565 interface, RS232, CAN-FD interface, RS485, Audio-PA, MIC, TF Card, KEY, RESET, rotary encoder, FLASH, LCD interface, TYPE-C for power and download, USB Host, and Debug interface. You can see that this small board covers most industrial applications and some automotive applications.

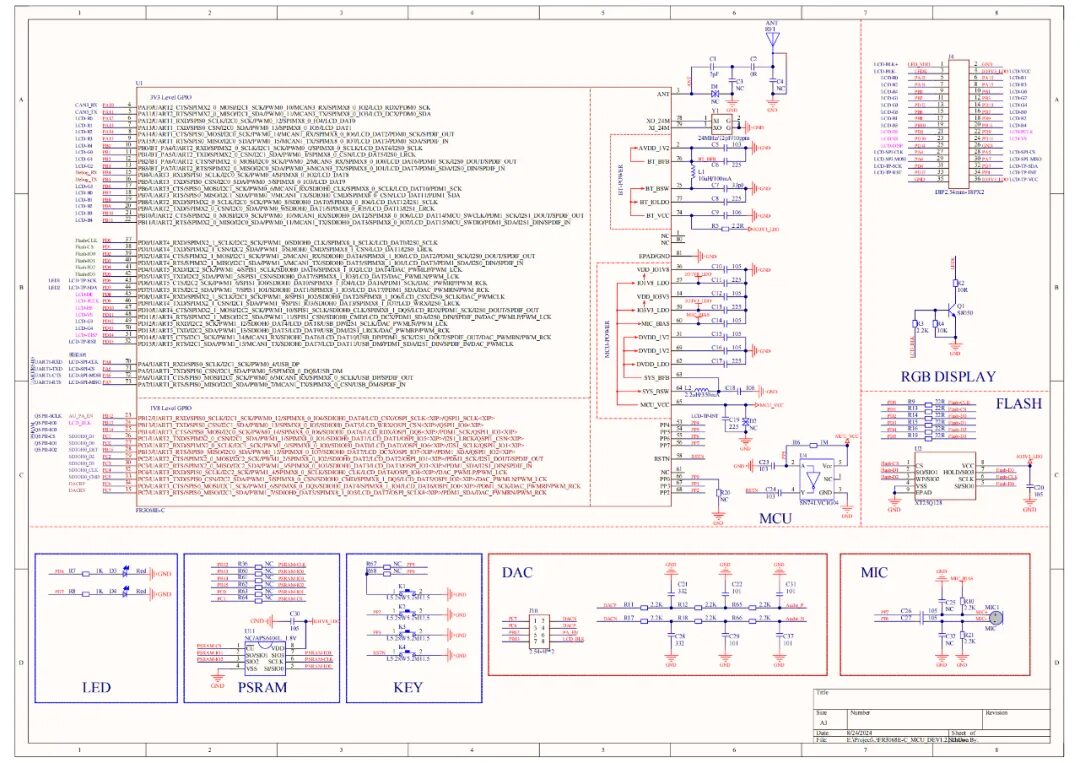

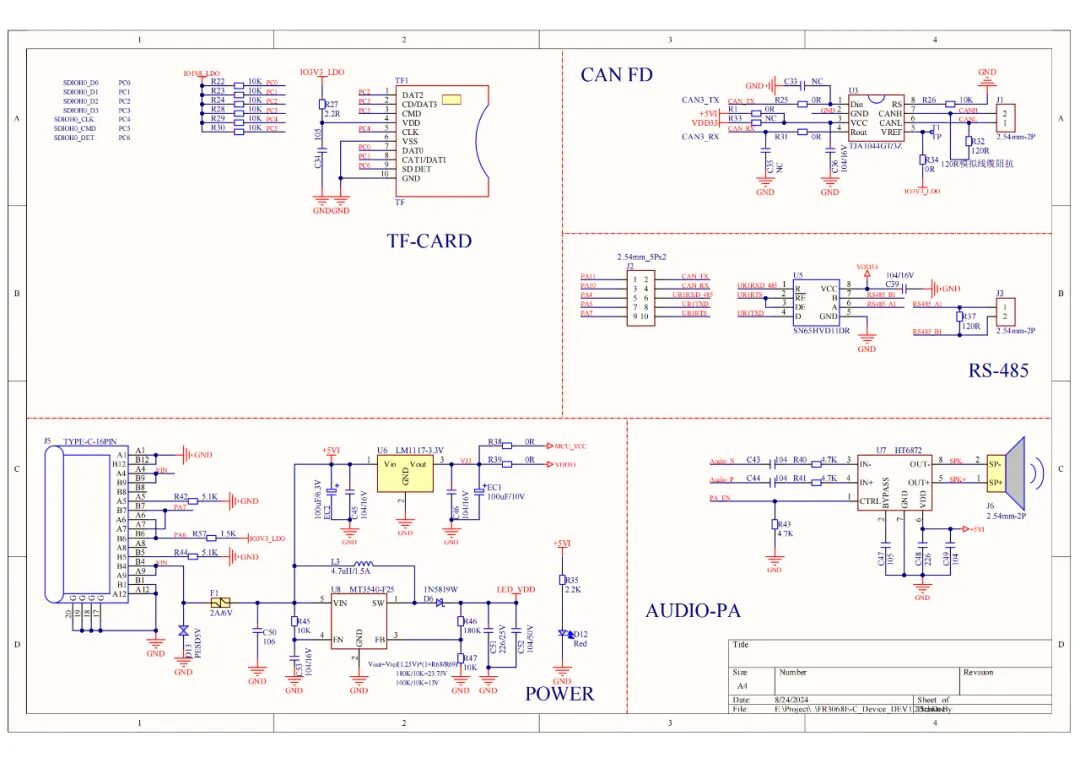

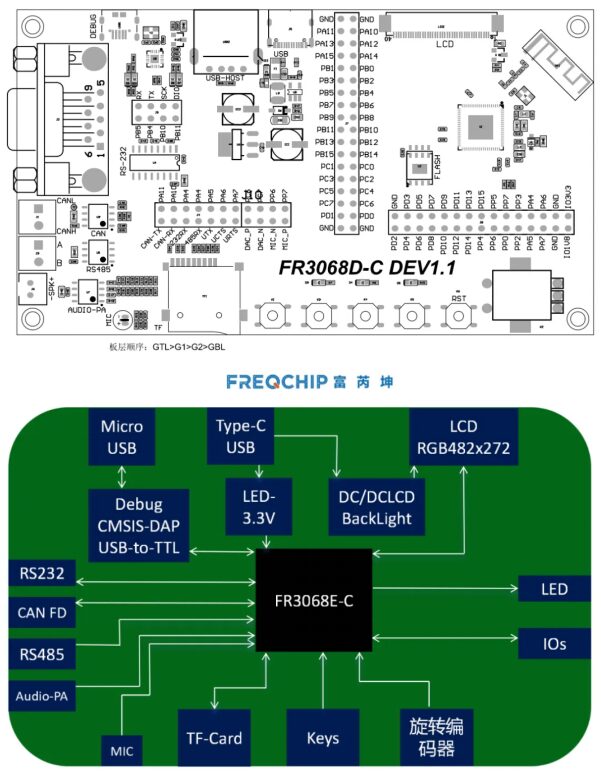

Attached is the assembly diagram provided by the official for the evaluation board. The development board itself is a 4-layer board, taking into account the 2.4G RF part, along with the hardware function block diagram organized by me to share with everyone. Comparing the functional block diagram can help better understand the hardware design of the schematic. 😃

FR3068E-C Evaluation Board Performance Demonstration

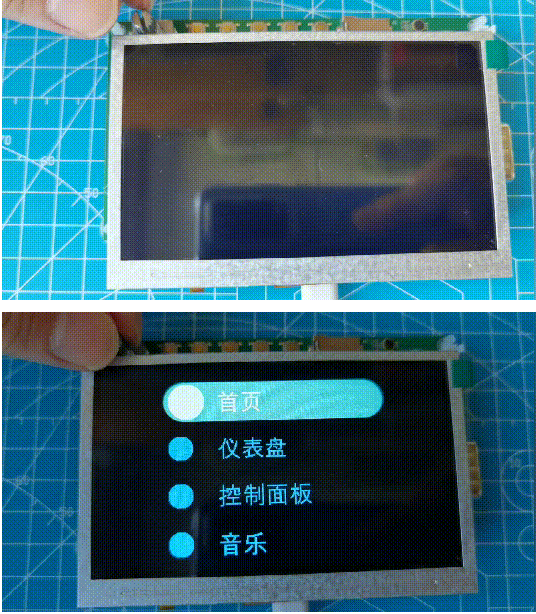

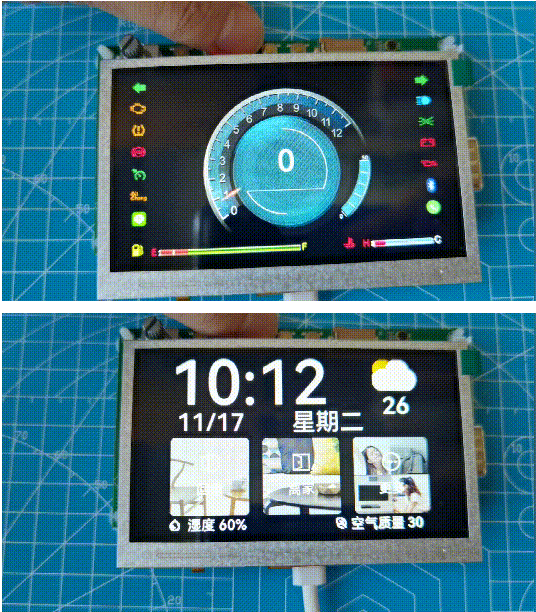

The evaluation board comes with related demo examples when it leaves the factory. Here I have made a few GIFs to show you the performance-intensive display effects, which are quite good, including boot animations, dashboard displays, media players, menu combinations, etc.

FR3068E-C Evaluation Board User Experience

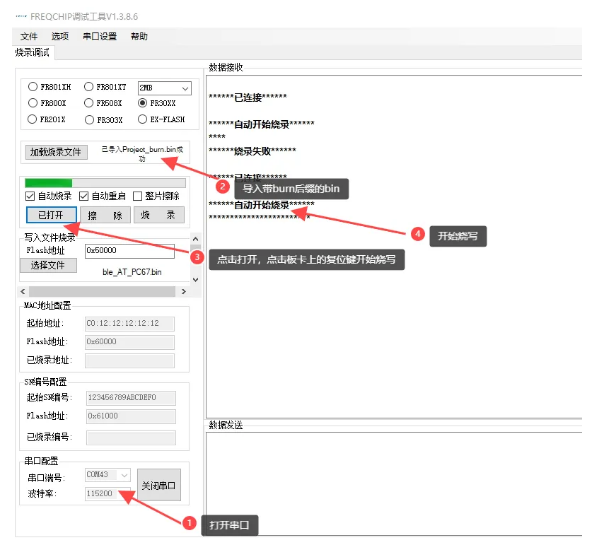

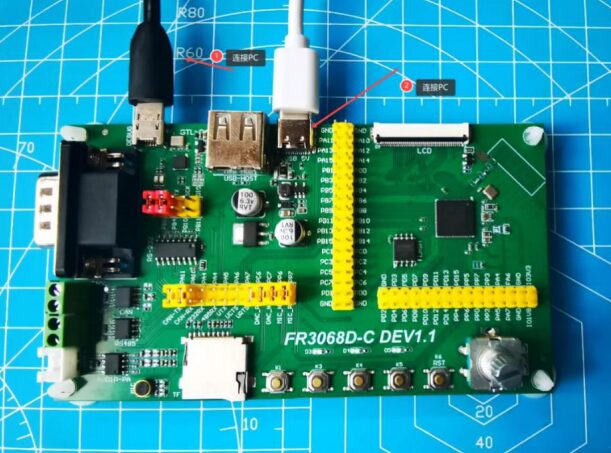

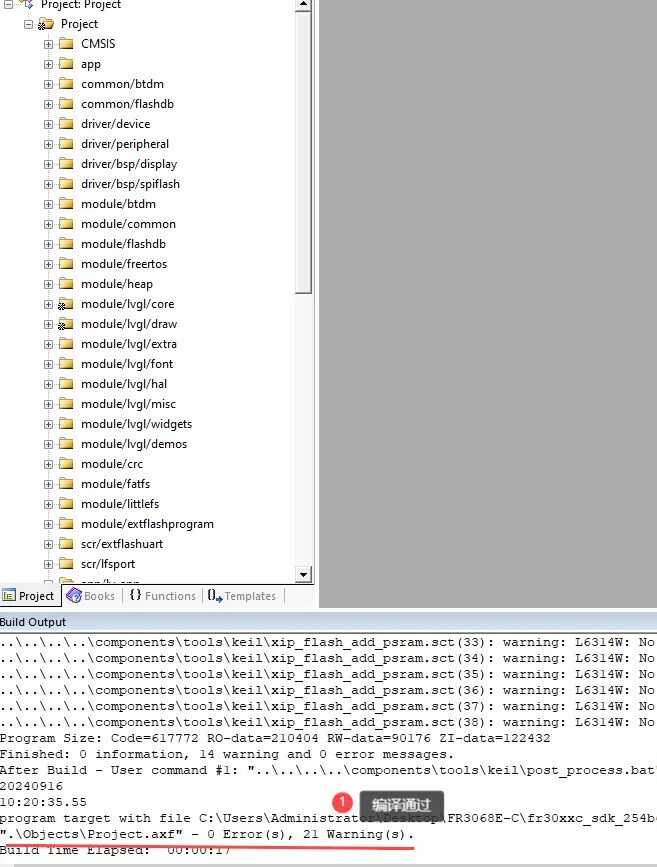

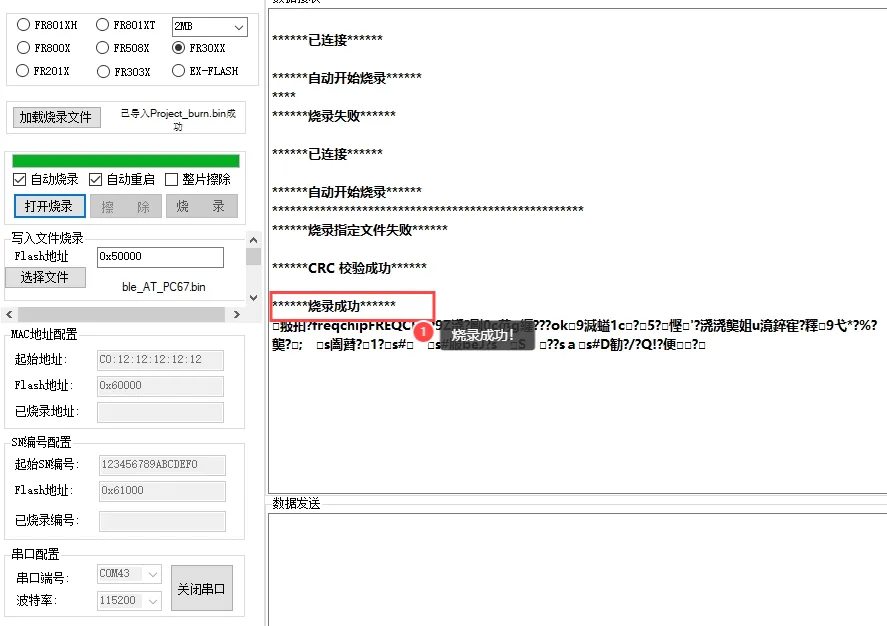

To edit the code, you first need to connect the debug port and the Type-C port to the PC. Furui Kun provides a complete SDK, which includes rich examples. Here we take the factory example for demonstration. It should be noted that the examples are opened with MDK, and the official provides a dedicated download tool that can directly download the Bin file to the chip without installation.

Evaluation Board Resource Summary

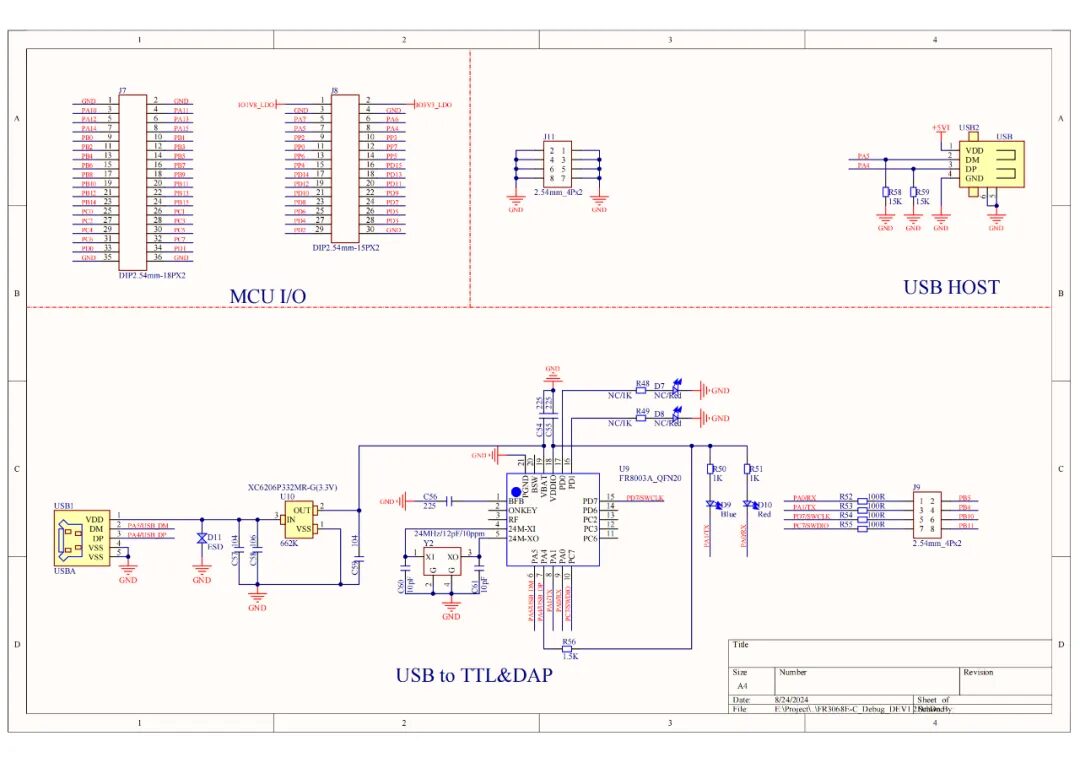

Development board schematic: Scan the image below to save

Development board SDK: Scan the image below to save

Development board user manual: Scan the image below to save

Chip programming manual: Scan the image below to save

Official download tool: Scan the image below to save

FR306x-C technical specification: Scan the image below to save

Overall Impression

This article discusses the performance of the FR3068E-C chip and briefly tests its evaluation kit, showcasing its basic capabilities with the provided example programs. The official also provides a complete set of tools and example programs, making development super easy.

Overall, the FR3068E-C chip can perfectly meet the needs in the automotive field, such as safety systems, keyless entry, and wireless battery management. In the industrial field, it can also perform excellently in areas like monitoring systems, smart buildings, and access control.
