Creating a Force Sensor Based on ESP32 and HX711

Creating a Force Sensor Based on ESP32 and HX711—— Research Project on Basic Education Reform in Hunan Province

01Working Principle

Force Sensor → HX711 → ESP32 → Bluetooth → Phyphox Mobile App

HX711 ModuleHX711 is a high-precision 24-bit analog-to-digital converter chip specifically designed for pressure sensors. Its main function is to amplify the measured small voltage signals to a range that can be read by a microcontroller, with a working voltage of 2.6-5.5V.Pin DescriptionVDD Power Positive GND Power Ground SCK Clock Signal Pin DT Data Input/Output Pin

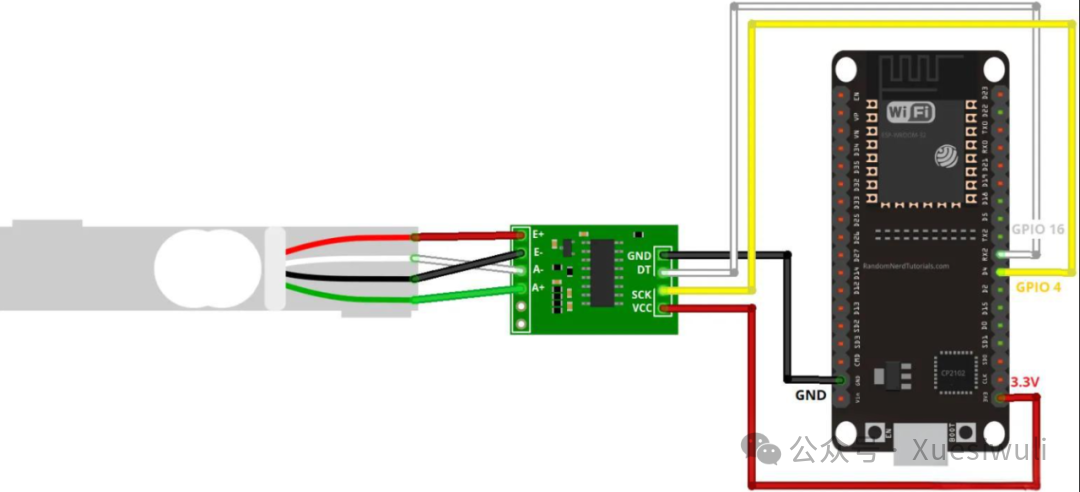

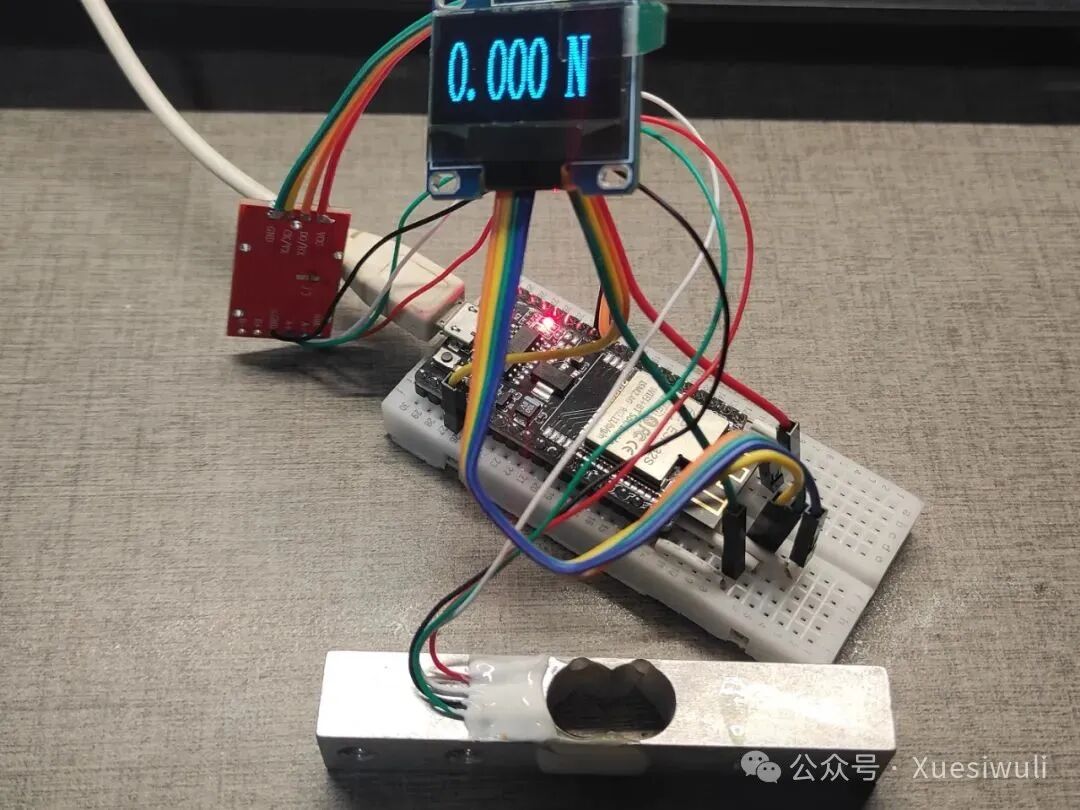

Wiring HX711 with ESP32‌

‌Power Connection‌

HX711 VCC: Connect to the 3.3V output of ESP32

HX711 GND: Connect to the common ground of ESP32‌

‌Data Communication Interface‌

HX711 DOUT (Data Output): Connect to any GPIO input pin of ESP32 (e.g., GPIO15)

HX711 PD_SCK (Clock Signal): Connect to any GPIO output pin of ESP32 (e.g., GPIO14)‌

‌Weighing Sensor Interface‌

Sensor E+ (Red): Connect to HX711 E+
Sensor E- (Black): Connect to HX711 E-
Sensor A+ (Green): Connect to HX711 A+
Sensor A- (White): Connect to HX711 A-‌

02PCB Design for ESP32 and HX711

PCB Manufacturing Platform
Jialichuang is a high-tech enterprise focused on PCB prototyping and small batch production. Jialichuang provides services including online circuit design, PCB manufacturing, component trading, SMT assembly, stencil production, and 3D printing.

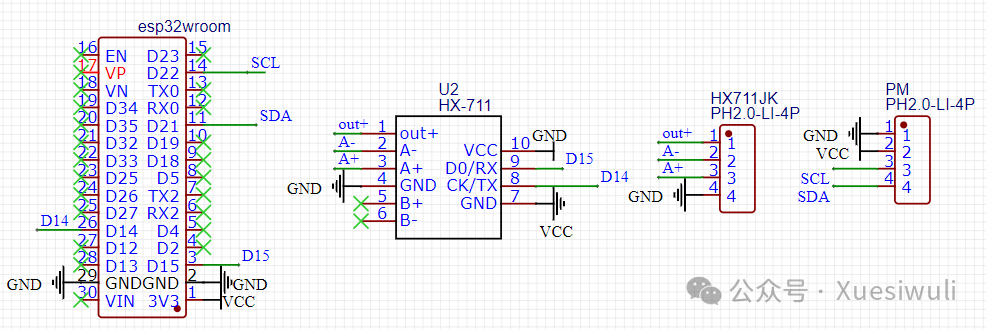

Schematic Diagram

Connect ESP32 and HX711 through the PCB, and reserve two PH2.0 interfaces, one for the strain gauge and one for the OLED display SSD1306.

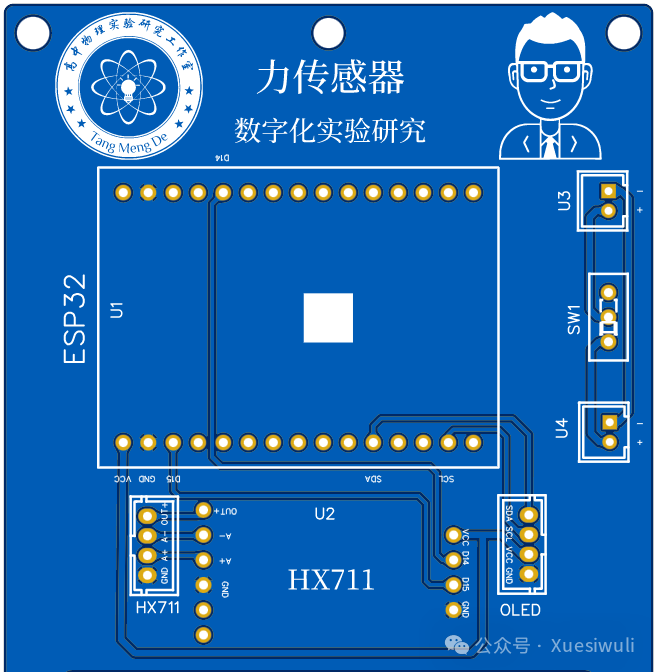

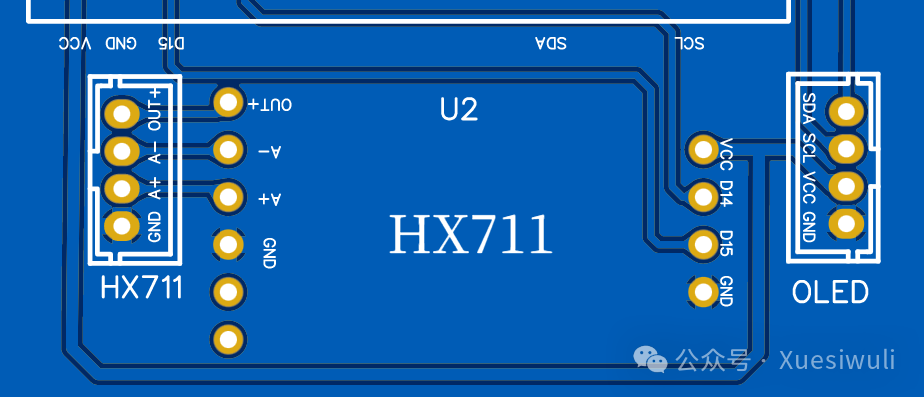

Overall Design

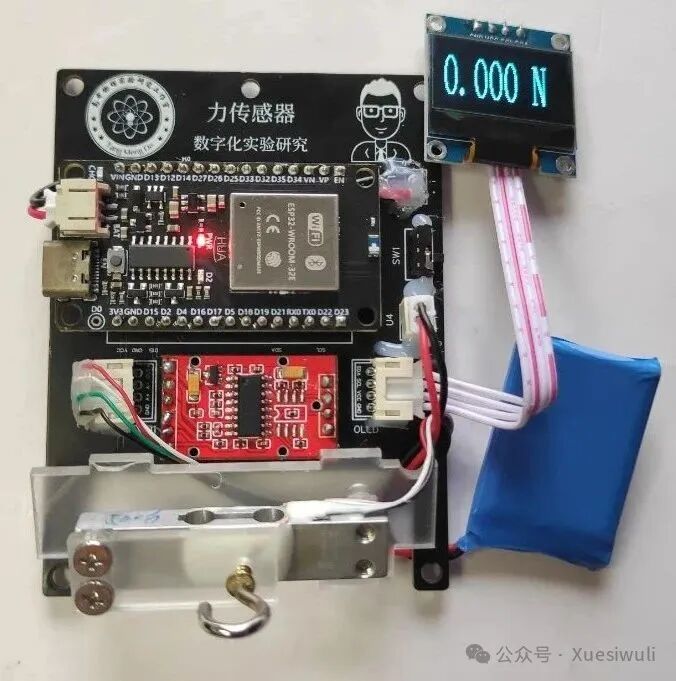

03Finished Product of the Force Sensor

Weld the ESP32 and HX711 along with the PH2.0 interface, and install all components.

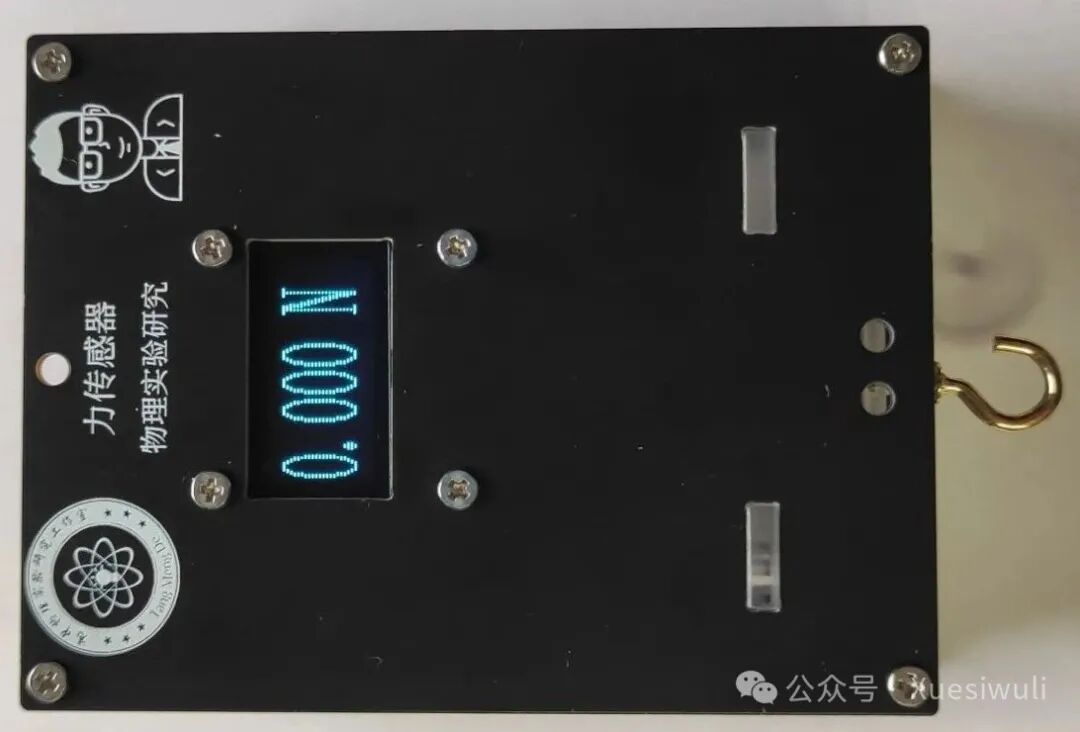

Overall effect after adding the casing

Creating a Force Sensor Based on ESP32 and HX711 04ESP32 Program Section

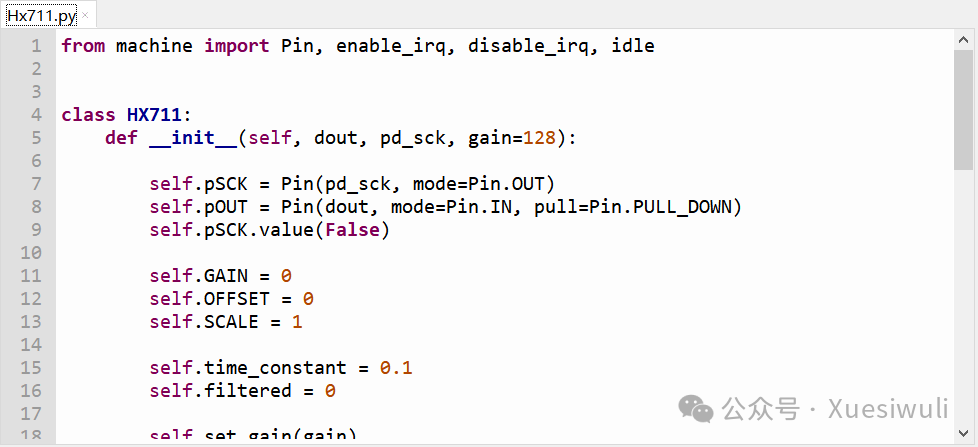

HX711 Program

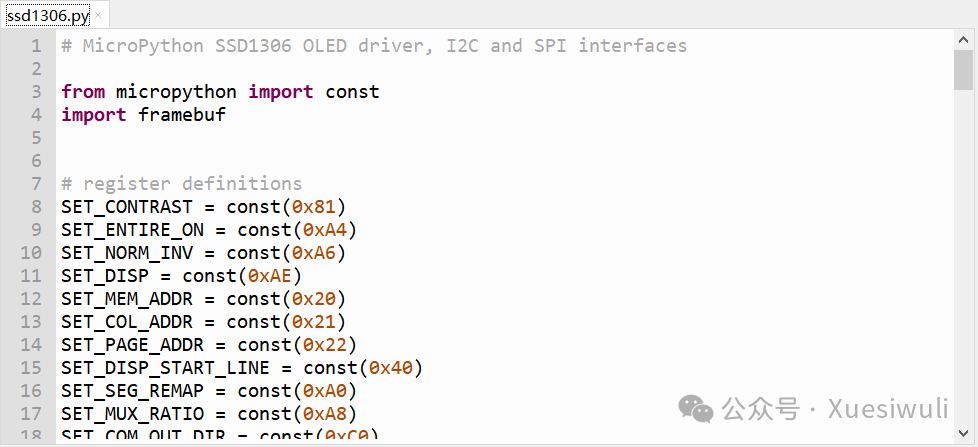

SSD1306 Program

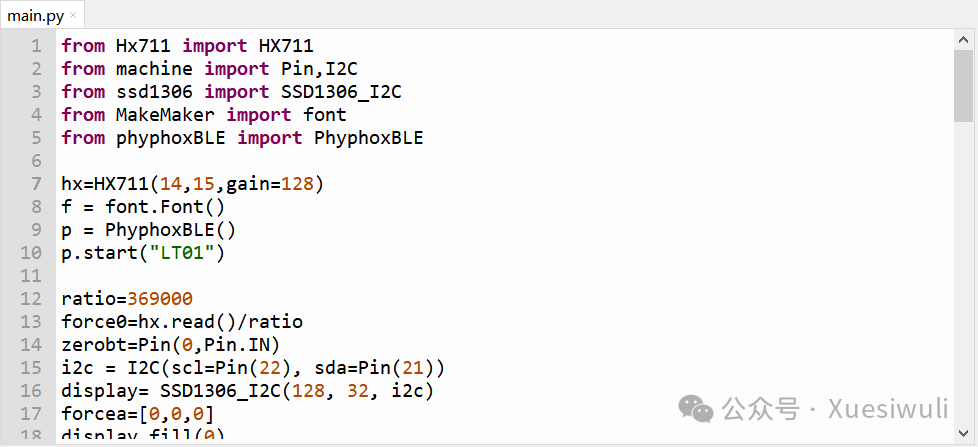

Data Reading and Bluetooth Sending Program
