Product Introduction
Bluetooth Single-Channel Control Box
1
Product Parameters
Name: Bluetooth Single-Channel Control Box
Usage Scenario: Paired with a wireless touch switch + background wall transformer + background wall light strip, it can achieve touch control for turning the background wall light strip on/off and adjusting brightness.
Dimensions: 68mm*25mm*14mm
Color: Black
Operating Voltage: Compatible with 12/24V
Power:
When operating at 12V: Maximum 36W
When operating at 24V: Maximum 72W
Communication Distance:
No obstacles, effective distance is 10m
With one wall obstruction, distance is 8m

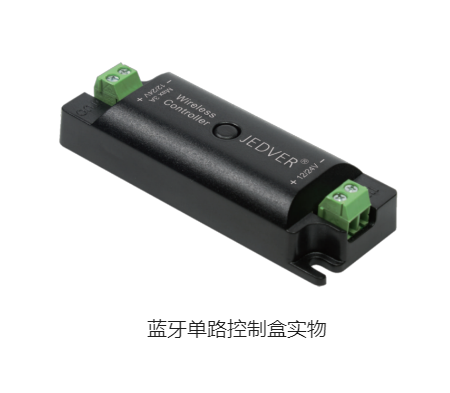

Bluetooth Single-Channel Control Box
Wireless Touch Switch
2
Software Invocation

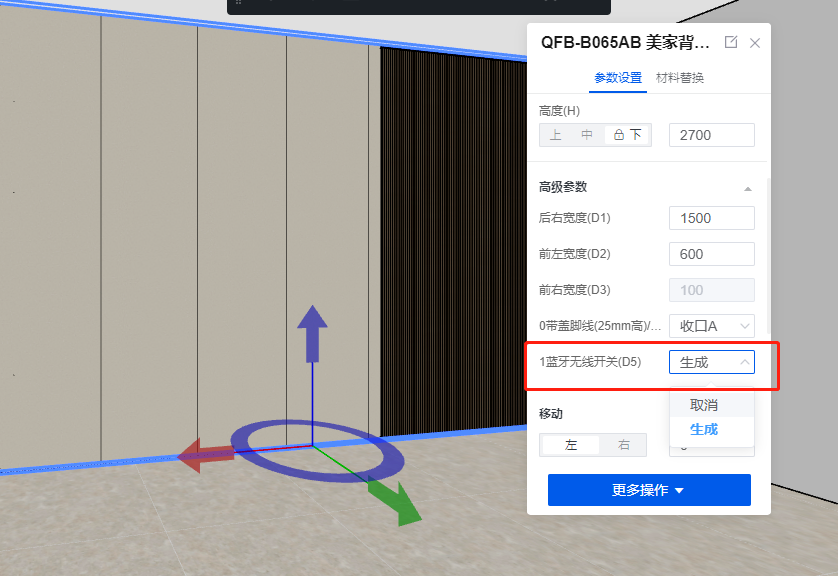

Invoke the background wall style with lights → Advanced Parameters → Select “Generate” for Bluetooth wireless switch
Configuration includes one Bluetooth single-channel control box and one wireless touch switch
3
Installation Connection Tutorial

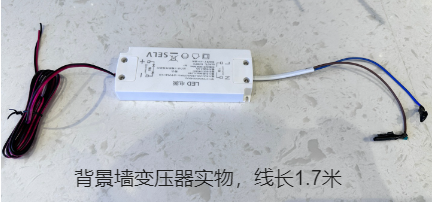

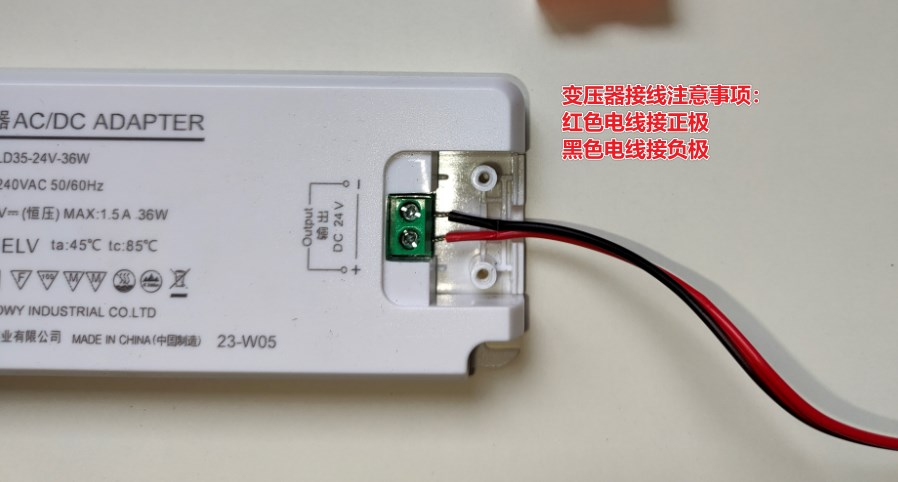

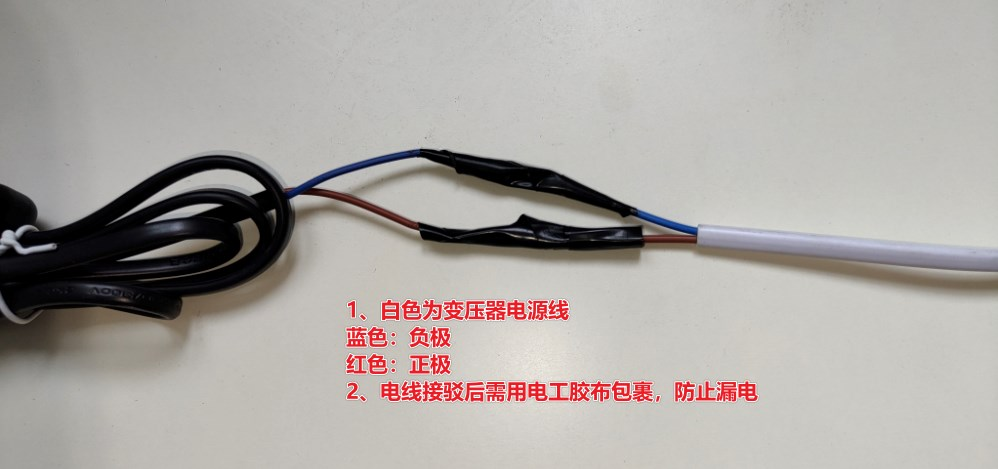

1. Connect the background wall transformer to the power line:

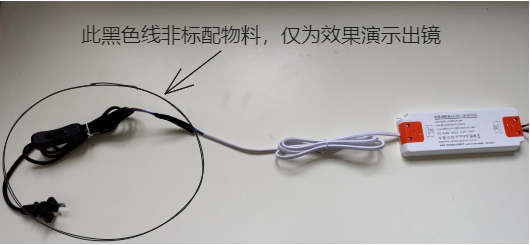

The black power line with a plug shown below is for demonstration only. During actual installation, the transformer wire must be connected to the household 220V line.
Swipe left and right to see more

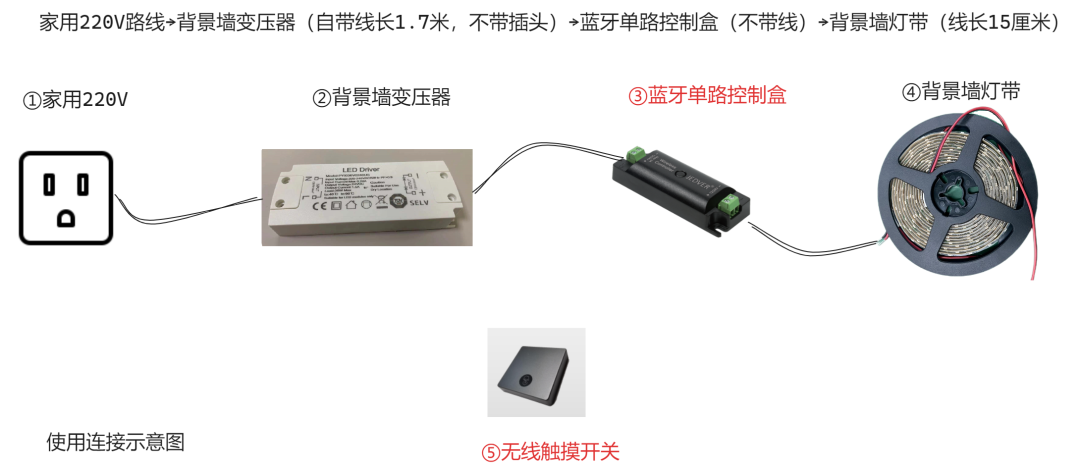

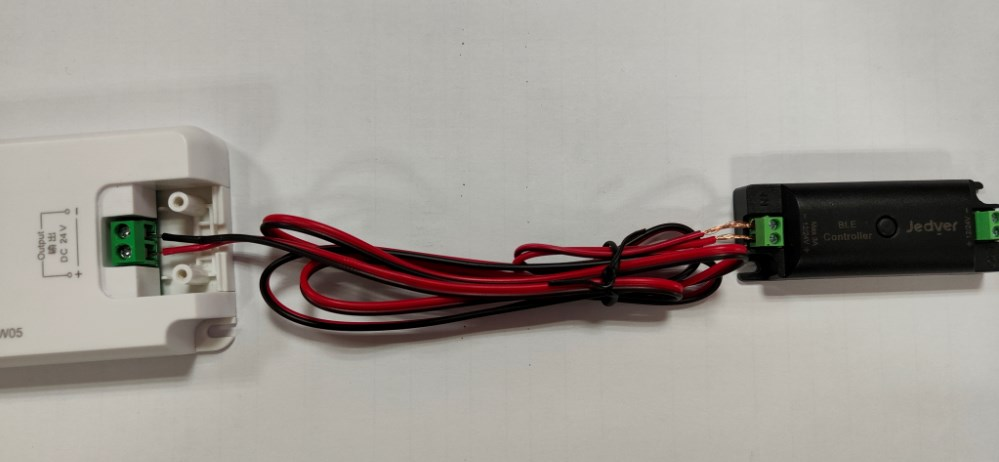

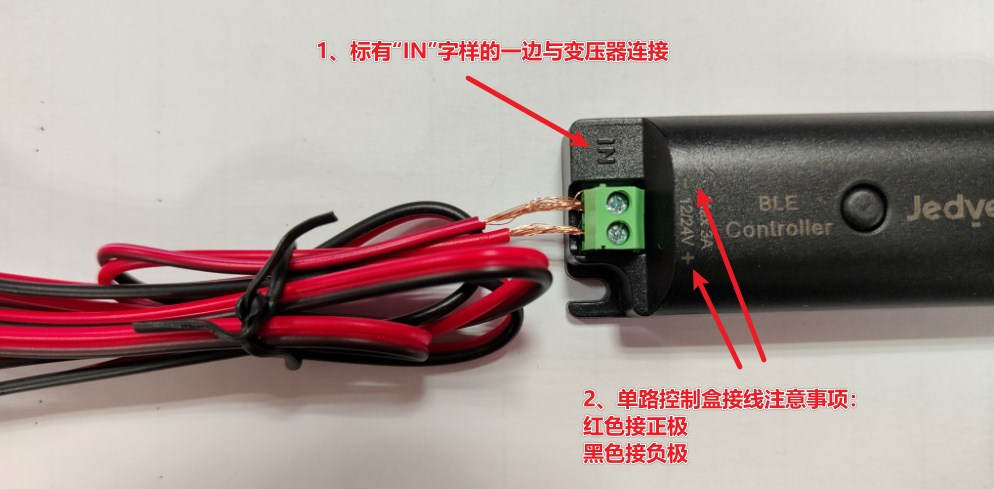

2. Use wires to connect the transformer to the Bluetooth single-channel control box
Swipe left and right to see more

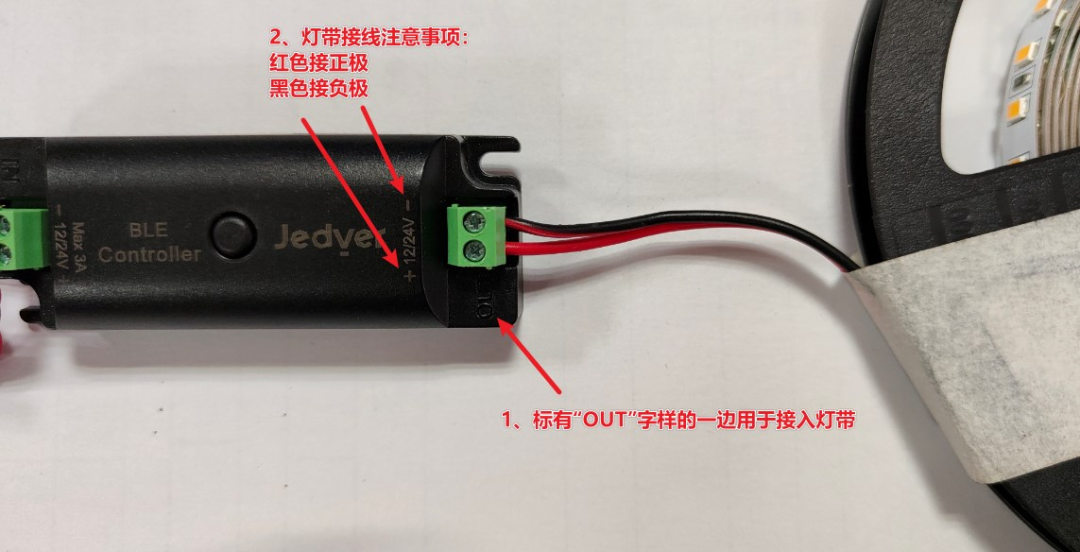

3. Connection between the Bluetooth single-channel control box and the light strip

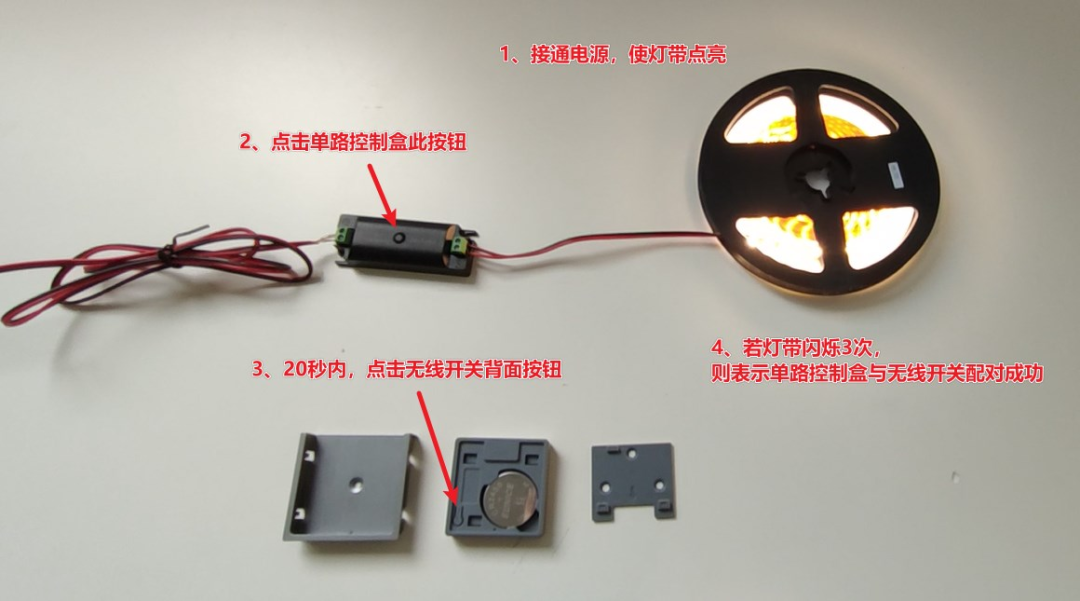

4. Pairing the Bluetooth single-channel control box with the wireless touch switch

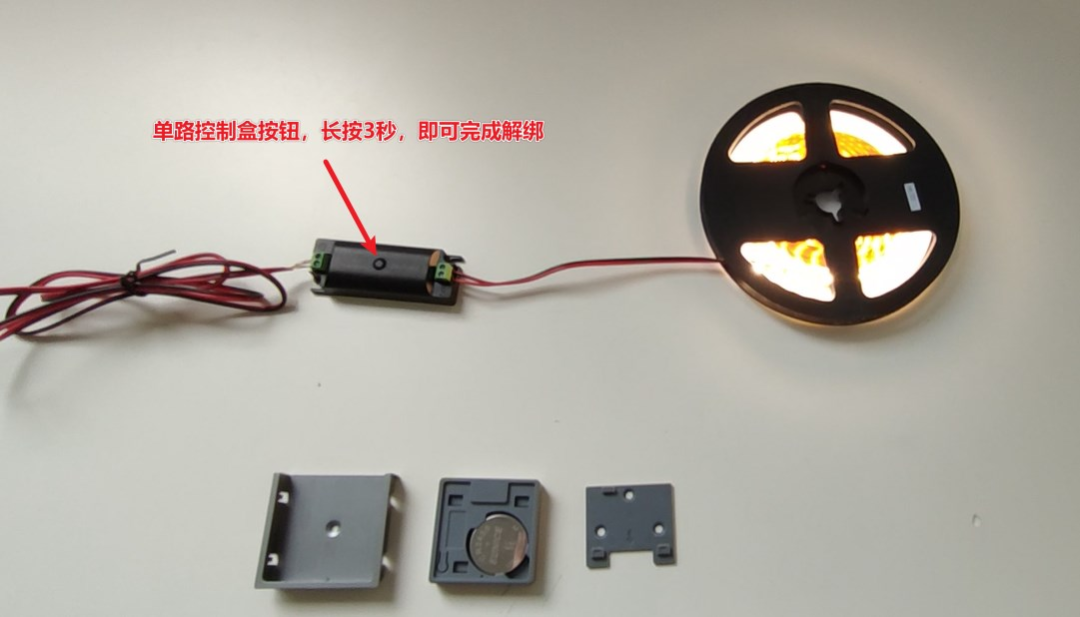

5. Unpairing the Bluetooth single-channel control box from the wireless touch switch
4
On/Off and Brightness Adjustment Operation Video
