A wireless module (RF module) refers to a module product that achieves data transmission through radio technology. The module integrates high-frequency components and has conventional interfaces (such as serial ports, SPI, digital signals, etc.), allowing users to develop wireless products without needing to master high-frequency knowledge or purchase expensive RF instruments, significantly accelerating the product mass production speed. The Zhenhao Micro TX8855S is an ASK transmission module operating at 315MHz/433.92MHz. This module features high power (13dBm) and low power consumption (<18mA). The module uses a highly integrated VI8855B chip design that provides stable and reliable performance.
01
Product Overview

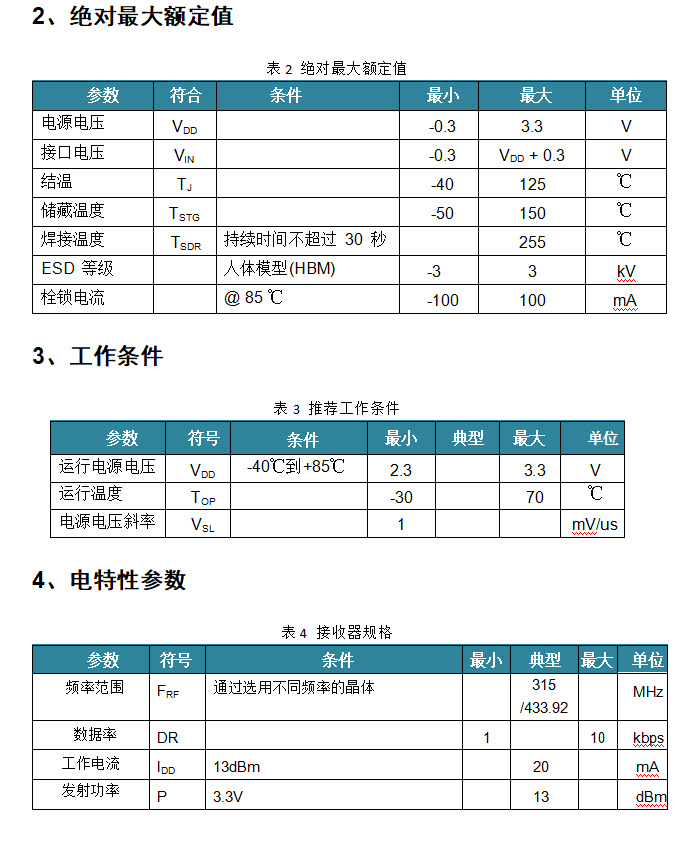

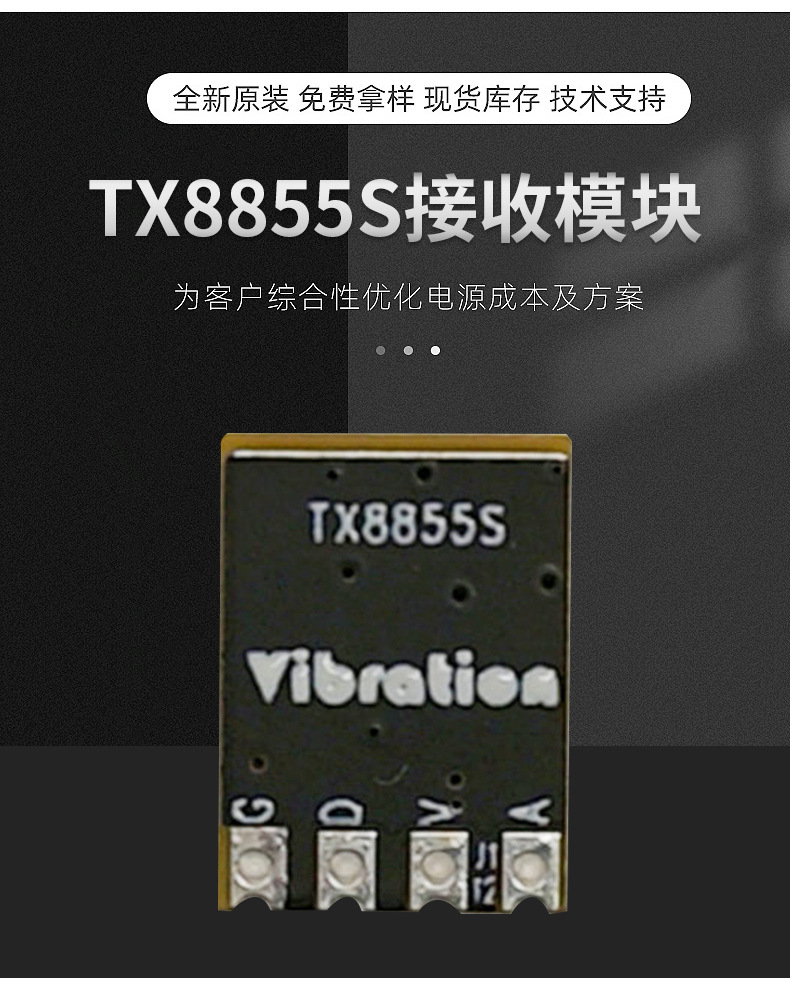

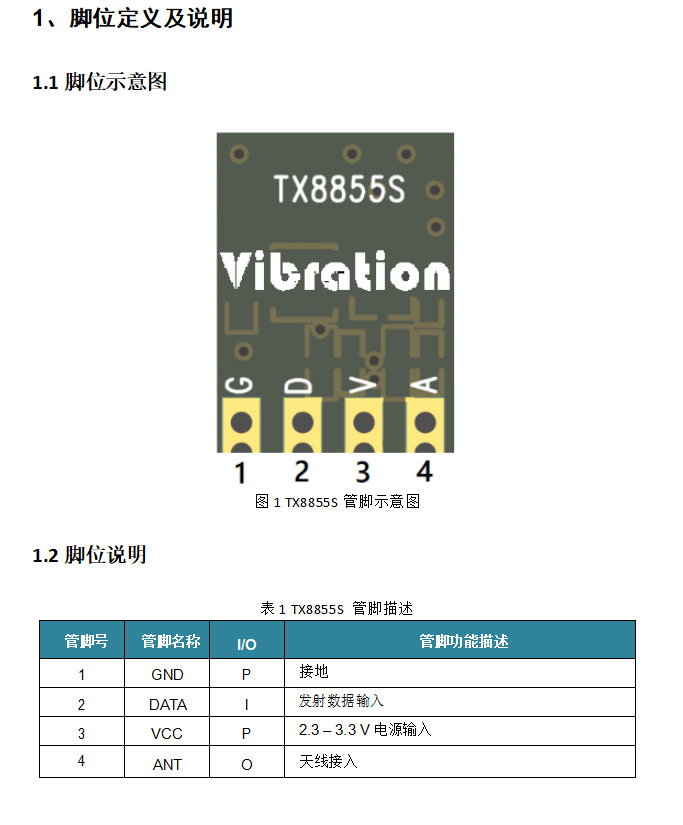

The TX8855S module uses a highly integrated VI8855B chip design that provides stable and reliable performance. The TX8855S operates within a normal voltage range of 2.2~3.6V, with a normal operating current of 18mA at 13dBm. The module dimensions are 13.2mm x 9.8mm.
02
Application Areas
Remote control access systems
Tire pressure monitoring devices
Remote control fans, lighting switches
Wireless sensor data transmission, infrared remote control replacement
Toy remote control
Conclusion
Wireless modules have been applied in many fields, including smart homes, security alarms, industrial control I/O devices, 485 wireless transmission devices, and analog data acquisition and control devices. The modules have evolved from the earliest use of key code, telegraph, and analog radio modules to the current digital radio modules, with signal transmission evolving from codes and low-speed data (300-1200bps) to high-speed data (9.6K to over 2M).
Shenzhen Zhenhao Microelectronics Co., Ltd. was established in 2015 and is a national high-tech enterprise dedicated to chip research and development and achievement transformation. The company’s products mainly focus on the physical layer applications of the Internet of Things and supporting circuits, including power chips, wireless communication chips, near-field communication chips, radar chips, and microprocessor chips. The company’s products generally possess excellent qualities such as high performance, low power consumption, high reliability, and low cost, and are widely used in smart homes, smart cities, smart agriculture, smart industry, smart logistics, and smart service industries, receiving recognition from many well-known customers in various fields.
