1.What is a Block Device Driver
A block device driver is used to operate storage devices such as hard disks.
1.1 Concept of Block Device DriversDevices that can randomly access fixed-size data chunks (1 block = 512 bytes) are called block devices. Block device files are generally used in a way that mounts a file system, which is also the usual access method for block devices. The access method for block devices is random.1.2 Sector
The smallest addressable unit in a block device is a sector, and the sector size is generally a power of two. The most common size is 512 bytes. A block is an abstraction of the file system and can only be accessed based on blocks. Physical disk addressing is done at the sector level, and all disk operations accessed by the kernel are done at the block level. A sector is the smallest addressable unit of the device, so a block cannot be smaller than a sector; it can only be a multiple of the sector size.
1.3 Kernel Requirements for Block Size
The block size must be a multiple of the sector size and less than the page size, so the block size is usually 512 bytes, 1K, or 4K.

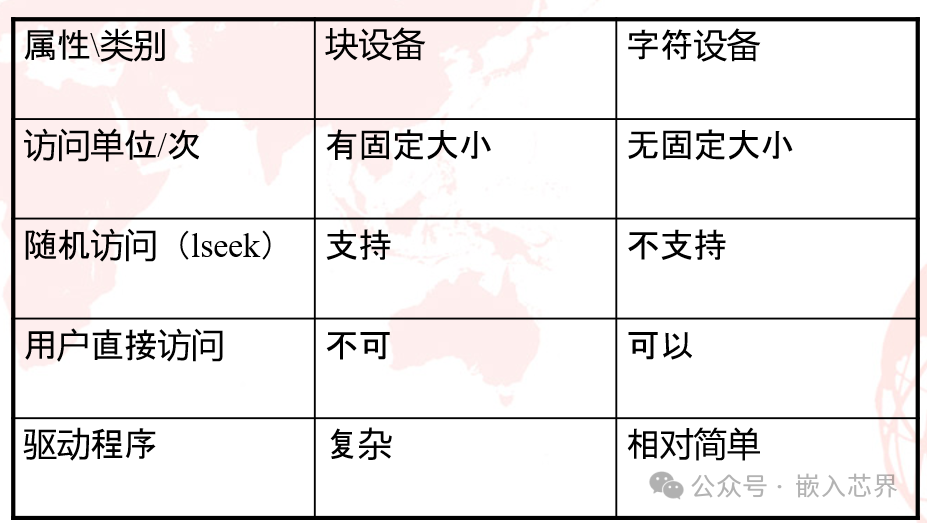

2.Comparison of Block Device Drivers and Character Device Drivers
1. The block device interface is relatively complex and not as clear and easy to use as character devices.
2. Block device drivers have a significant impact on the overall system performance; speed and efficiency are key considerations in designing block device drivers.
3. The system uses buffers and optimized management of access requests (merging and reordering) to improve system performance.

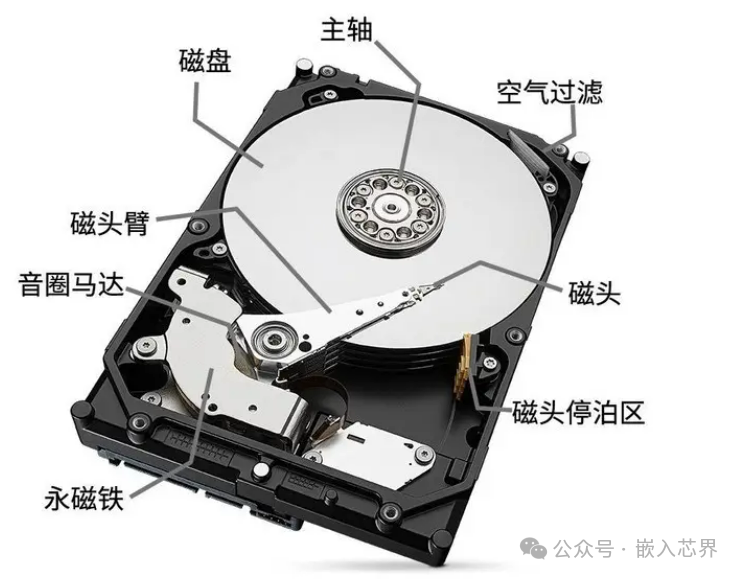

3.Introduction to Related Knowledge of Block Device Drivers

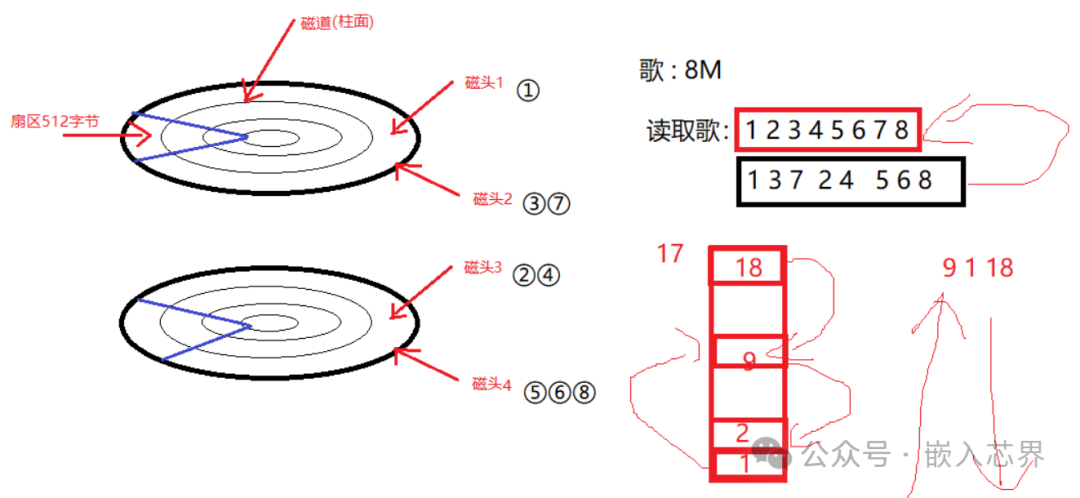

Head: A disk has as many heads as it has surfaces.
Cylinder: There can be many rings on a head, and these rings are called cylinders.
Sector: The smallest unit of data access on a cylinder is a sector, and the size of a sector is 512 bytes.
1 block = 512 bytes, 1024 bytes, 2048 bytes, 4096 bytes
1 sector = 512 bytes
The data that a block device can store = heads * cylinders * sectors * 512
4.Framework Diagram of Block Device Drivers
1. Virtual File System (VFS): Hides the specific details of various hardware, providing a unified interface for users to operate different hardware. It is based on different file system formats, such as EXT, FAT, etc. User programs operate on devices through VFS, and functions like open, close, write, and read are provided on top of VFS.
2. Disk Cache: A fast cache for the hard disk, where user caches the recently accessed file data. If it can be found in the cache, there is no need to access the hard disk, as the access speed of the hard disk is much slower.
3. Mapping Layer: This layer is mainly used to determine the block size of the file system and then calculate how many blocks the requested data contains. It also calls specific file system functions to access the file’s inode and determine the logical address of the requested data on the disk.
4. Generic Block Layer: The Linux kernel views block devices as data spaces composed of several sectors. The read and write requests from the upper layer are constructed into one or more bio structures in the generic block layer.
5. I/O Scheduler Layer: Responsible for scheduling, inserting, buffering, sorting, merging, and distributing block I/O operations from the generic block layer (elevator scheduling algorithm) to make disk operations more efficient.
6. Block Device Driver Layer: At the bottom of the block system architecture, the block device driver accesses the hardware for data based on the sorted requests.
user:open read write close-------------------(io request)-----------------------------------kernel |Intermediate Layer: (block_device) | Converts user I/O requests into BIO (block, input, output), | Consecutive bios in physical memory are merged into a request, this request | is placed in a queue in the kernel. |--------------------------------------------------------- |driver:gendisk | 1. Allocate object | 2. Initialize object | 3. Initialize a queue head----request(read)----request(write)---... | //4. Initialize hard disk device | 5. Register, unregister------------------------------------------------------------------ hardware : Allocated memory (simulating a real device) (1M)5.API of Block Device Drivers
1. Structure object of gendisk struct gendisk { int major; // Major device number of the block device int first_minor; // Starting minor device number int minors; // Number of devices, number of partitions char disk_name[DISK_NAME_LEN]; // Name of the disk struct disk_part_tbl *part_tbl; // Pointer to the partition table of the disk struct hd_struct part0; // Description of part0 partition const struct block_device_operations *fops; // Structure of block device operation methods struct request_queue *queue; // Queue (important) void *private_data; // Private data }; Structure of partition struct hd_struct { sector_t start_sect; // Starting sector number sector_t nr_sects; // Number of sectors int partno; // Partition number }; // Structure of block device operation methods struct block_device_operations { int (*open) (struct block_device *, fmode_t); int (*release) (struct gendisk *, fmode_t); int (*ioctl) (struct block_device *, fmode_t, unsigned, unsigned long); int (*getgeo)(struct block_device *, struct hd_geometry *); // Sets the number of heads, cylinders, and sectors of the disk. hd_geometry }
2. Initialization of structure object struct gendisk *mydisk; struct gendisk *alloc_disk(int minors) //void put_disk(struct gendisk *disk) // Return reference count Function: Allocate memory for gendisk and complete necessary initialization Parameters: @minors: Number of partitions Return value: Returns the starting address of the allocated memory on success, NULL on failure int register_blkdev(unsigned int major, const char *name) //void unregister_blkdev(unsigned int major, const char *name) Function: Request the major device number for the device driver Parameters: @major : 0: Automatically request >0 : Statically specify @name : Name cat /proc/devices Return value: major=0 ; Returns the major device number on success, error code on failure major>0 : Returns 0 on success, error code on failure void set_capacity(struct gendisk *disk, sector_t size) Function: Set the capacity of the disk struct request_queue *blk_mq_init_sq_queue(struct blk_mq_tag_set *set,const struct blk_mq_ops *ops,unsigned int queue_depth,unsigned int set_flags) //void blk_cleanup_queue(struct request_queue *q) Function: Used to set the queue helper with mq ops under the given queue depth, and pass the helper through mq ops flags Parameters: @The initialized tag object, the tag is used by the upper layer, which contains the number of hardware queues, the operation method structure of the queue, flags, etc. @The operation method structure to be placed in the tag @The specified queue depth in the tag @The processing flags in the tag, such as BLK_MQ_F_SHOULD_MERGE, BLK_MQ_F_BLOCKING, etc. Return value: Returns the queue pointer on success, error code pointer on failure 3. Registering and Unregistering void add_disk(struct gendisk *disk) // Register void del_gendisk(struct gendisk *disk) // Unregister6.Examples of Block Device Drivers
#include <linux/blk-mq.h>#include <linux/blkdev.h>#include <linux/genhd.h>#include <linux/hdreg.h>#include <linux/init.h>#include <linux/module.h>#define BLKSIZE (1 * 1024 * 1024)#define BLKNAME "mydisk"
struct gendisk* mydisk;int major;struct request_queue* queue;struct blk_mq_tag_set tag;char *dev_addr;
blk_status_t myqueue_handle(struct blk_mq_hw_ctx* ctx, const struct blk_mq_queue_data* hd){ // Handle queue read/write return 0;}
const struct blk_mq_ops qops = { .queue_rq = myqueue_handle,};
int mydisk_open(struct block_device* blkdev, fmode_t mode){ printk("%s:%d\n", __func__, __LINE__); return 0;}
int mydisk_getgeo(struct block_device* blkdev, struct hd_geometry* hd){ printk("%s:%d\n", __func__, __LINE__); hd->heads = 4; // Heads hd->cylinders = 16; // Cylinders hd->sectors = (BLKSIZE / hd->heads / hd->cylinders / 512); // Sectors return 0;}
void mydisk_close(struct gendisk* disk, fmode_t mode){ printk("%s:%d\n", __func__, __LINE__);}
struct block_device_operations fops = { .open = mydisk_open, .getgeo = mydisk_getgeo, .release = mydisk_close,};
static int __init mydisk_init(void){ // 1. Allocate object mydisk = alloc_disk(4); if (mydisk == NULL) { printk("alloc gendisk memory error\n"); return -ENOMEM; } // 2. Initialize object major = register_blkdev(0, BLKNAME); if (major <= 0) { printk("get blk device number error\n"); return -EAGAIN; } queue = blk_mq_init_sq_queue(&tag, &qops, 2, BLK_MQ_F_SHOULD_MERGE); if (IS_ERR(queue)) { printk("request mq error\n"); return PTR_ERR(queue); } mydisk->major = major; mydisk->first_minor = 0; strcpy(mydisk->disk_name, BLKNAME); set_capacity(mydisk, BLKSIZE >> 9); mydisk->fops = &fops; mydisk->queue = queue; // 3. Allocate memory to use as hard disk dev_addr = vmalloc(BLKSIZE); if(dev_addr == NULL){ printk("alloc memory error\n"); return -ENOMEM; } // 4. Register add_disk(mydisk); return 0;}
static void __exit mydisk_exit(void){ del_gendisk(mydisk); vfree(dev_addr); blk_cleanup_queue(queue); unregister_blkdev(major,BLKNAME); put_disk(mydisk);}

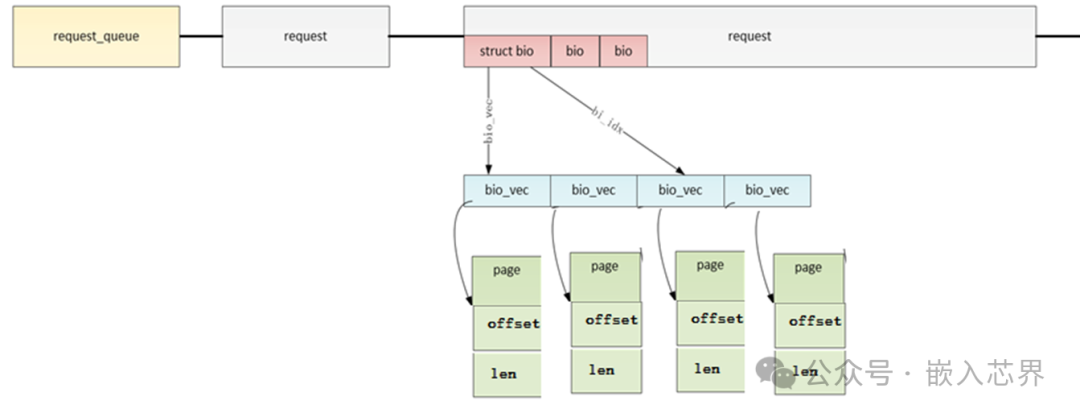

module_init(mydisk_init);module_exit(mydisk_exit);MODULE_LICENSE("GPL");7.Structures, Relationships, and Functions Related to Queue Processing
struct request_queue { /* Doubly linked list data structure, all IO requests added to the queue are formed into a doubly linked list */ struct list_head queue_head; struct list_head requeue_list; // Request queue spinlock_t requeue_lock; // Spinlock for the queue unsigned long nr_requests; /* Maximum number of requests */ unsigned long queue_flags;/* Current request queue status QUEUE_FLAG_STOPPED */ …};struct request{ struct list_head queuelist;/* List element in the request object */ struct request_queue *q; /* Pointer to the request queue storing the current request */ unsigned int __data_len; /* Total data amount required for the current request */ sector_t __sector; /* Starting sector of the current request */ struct bio *bio; /* Information carried by the bio object transferred to the request object */ struct bio *biotail; /* Bio linked list */ …};Typically, a request can contain multiple bios, and one bio corresponds to one I/O request struct bio { struct bio *bi_next; /* Pointer to the next bio object */ unsigned long bi_flags; /* Status, command, etc. */ unsigned long bi_rw; /* Indicates READ/WRITE */ struct block_device *bi_bdev; /* Pointer to the block device associated with the request */ unsigned short bi_vcnt; /* Number of elements in the bi_io_vec array */ unsigned short bi_idx; /* Index of the current processing element in the bi_io_vec array */ unsigned int bi_size; /* Total amount of data to be transferred this time, byte (multiple of sector size) */ struct bio_vec *bi_io_vec;/* Points to an array of IO vectors, each element corresponds to a physical page's page object */ };struct bio_vec { struct page *bv_page; // Points to the struct page object corresponding to the page used for data transfer unsigned int bv_len; // Indicates the size of the data to be transferred unsigned int bv_offset;// Indicates the offset of the data within the page};Relationship between request_queue, request, and bio
Functions Related to Queue Processing
blk_mq_start_request(rq); // Start processing the queueblk_mq_end_request(rq, BLK_STS_OK); // End queue processingrq_for_each_segment(bvec, rq, iter) // From request->bio_vecvoid* b_buf = page_address(bvec.bv_page) + bvec.bv_offset; // Convert page address to linear address (physical address)rq_data_dir(rq)) // Get the direction of this read/write from the request WRITE 1 READ 0dev_addr+(rq->__sector *512) // Address of the disk device8.Final Example of Block Device Drivers
#include <linux/blk-mq.h>#include <linux/blkdev.h>#include <linux/genhd.h>#include <linux/hdreg.h>#include <linux/init.h>#include <linux/module.h>
#define BLKSIZE (1 * 1024 * 1024)#define BLKNAME "mydisk"
struct gendisk* mydisk;int major;struct request_queue* queue;struct blk_mq_tag_set tag;char *dev_addr;
blk_status_t myqueue_handle(struct blk_mq_hw_ctx* hctx, const struct blk_mq_queue_data* bd){ blk_status_t status = BLK_STS_OK; struct request *rq = bd->rq; struct bio_vec bvec; struct req_iterator iter; loff_t pos = blk_rq_pos(rq) << SECTOR_SHIFT;
// Start processing the queue blk_mq_start_request(rq); // Processing the queue rq_for_each_segment(bvec, rq, iter) { unsigned long b_len = bvec.bv_len; void* b_buf = page_address(bvec.bv_page) + bvec.bv_offset; // Prevent overflow if ((pos + b_len) > BLKSIZE) b_len = (unsigned long)(BLKSIZE - pos); if (rq_data_dir(rq))//WRITE memcpy(dev_addr+ pos, b_buf, b_len); else //READ memcpy(b_buf, dev_addr + pos, b_len); pos += b_len; } // End queue processing blk_mq_end_request(rq, status); return BLK_STS_OK;//always return ok}
const struct blk_mq_ops qops = { .queue_rq = myqueue_handle,};
int mydisk_open(struct block_device* blkdev, fmode_t mode){ printk("%s:%d\n", __func__, __LINE__); return 0;}
int mydisk_getgeo(struct block_device* blkdev, struct hd_geometry* hd){ printk("%s:%d\n", __func__, __LINE__); hd->heads = 4; // Heads hd->cylinders = 16; // Cylinders hd->sectors = (BLKSIZE / hd->heads / hd->cylinders / 512); // Sectors return 0;}
void mydisk_close(struct gendisk* disk, fmode_t mode){ printk("%s:%d\n", __func__, __LINE__);}
struct block_device_operations fops = { .open = mydisk_open, .getgeo = mydisk_getgeo, .release = mydisk_close,};
static int __init mydisk_init(void){ // 1. Allocate object mydisk = alloc_disk(4); if (mydisk == NULL) { printk("alloc gendisk memory error\n"); return -ENOMEM; } // 2. Initialize object major = register_blkdev(0, BLKNAME); if (major <= 0) { printk("get blk device number error\n"); return -EAGAIN; } queue = blk_mq_init_sq_queue(&tag, &qops, 2, BLK_MQ_F_SHOULD_MERGE); if (IS_ERR(queue)) { printk("request mq error\n"); return PTR_ERR(queue); } mydisk->major = major; mydisk->first_minor = 0; strcpy(mydisk->disk_name, BLKNAME); set_capacity(mydisk, BLKSIZE >> 9); mydisk->fops = &fops; mydisk->queue = queue; // 3. Allocate memory to use as hard disk dev_addr = vmalloc(BLKSIZE); if(dev_addr == NULL){ printk("alloc memory error\n"); return -ENOMEM; } // 4. Register add_disk(mydisk); return 0;}
static void __exit mydisk_exit(void){ del_gendisk(mydisk); vfree(dev_addr); blk_cleanup_queue(queue); unregister_blkdev(major,BLKNAME); put_disk(mydisk);}
module_init(mydisk_init);module_exit(mydisk_exit);MODULE_LICENSE("GPL");9.Testing Block Device Drivers
1. Install the block device driver sudo insmod mydisk.ko2. View the device node ls -l /dev/mydisk brw-rw---- 1 root disk 252, 0 6月 22 14:14 /dev/mydisk3. View disk-related commands sudo fdisk -l Disk /dev/mydisk：1 MiB，1048576 字节，2048 个扇区 单元：扇区 / 1 * 512 = 512 字节 扇区大小(逻辑/物理)：512 字节 / 512 字节 I/O 大小(最小/最佳)：512 字节 / 512 字节 4. Partition sudo fdisk /dev/mydisk m 获取帮助 d 删除分区 p 打印分区表 n 添加新分区 w 将分区表写入磁盘并退出 q 退出而不保存更改 在dev下产生/dev/mydisk1节点5. Format the partition sudo mkfs.ext2 /dev/mydisk1
6. Mount the disk to a directory sudo mount -t ext2 /dev/mydisk1 ~/udisk
7. Store files on the disk sudo cp ~/work/day10/02mydisk/mydisk.c .
8. Unmount cd sudo umount udisk
9. Read the data from the block device driver into ram.bin file sudo cat /dev/mydisk1 > ram.bin
10. Remount to check sudo mount -o loop ram.bin ~/udisk Go to the udisk directory to check if the files copied earlier are present, if so, it indicates success.
