Multi-file programming is the core practice of modular development in C language. By distributing code across multiple source files (.c) and header files (.h), it enhances code maintainability, reusability, and collaboration efficiency. The following is a detailed explanation covering concepts, structure, compilation process, precautions, and practical applications.

1. Core Concepts of Multi-File Programming

Modular Design Principles

Functional Division: Each module (.c file) is responsible for a single function, such as mathematical operations, data structure manipulation, hardware interfaces, etc.
Separation of Interface and Implementation: Header files (.h) define interfaces (function declarations, macros, structures), while source files (.c) implement specific logic.
Low Coupling and High Cohesion: Minimize dependencies between modules, with tightly related functionalities within a module.

Advantages of Multi-File Programming

Code Reusability: Common functionalities (like linked list operations, logging modules) can be encapsulated as independent modules for use in multiple projects.
Team Collaboration: During multi-person development, different modules can be developed in parallel, reducing conflicts.
Compilation Efficiency: Only modified files need to be recompiled, not the entire project.
Easy Maintenance: Faster problem localization, with a controllable scope of modifications.

2. File Structure and Responsibilities

Header Files (.h)

Function Declarations (Prototypes)
Macro Definitions (#define)
Structure/Union Definitions (struct/union)
Global Variable Declarations (extern)
Type Definitions (typedef)

Content:

Protection Mechanism: Use #ifndef/#define/#endif to prevent multiple inclusions and avoid symbol redefinition errors.

// example.h
#ifndef EXAMPLE_H
#define EXAMPLE_H

extern int global_var;  // Global variable declaration
void func(void);        // Function declaration

#endif // EXAMPLE_H

Source Files (.c)

Function Definitions (Implementations)
Global Variable Definitions (Optional)
Static Variables and Functions (static modifier, limiting scope)

Content:
Dependency Management: Include required interfaces using #include "header.h", and use #include <header.h> for standard library header files.

Example:

// example.c
#include "example.h"  // Custom header file
#include <stdio.h>    // Standard library header file

int global_var = 0;  // Global variable definition

void func(void) {
    printf("Global var: %d\n", global_var++);
}

Main Program File (main.c)

Contains the main() function, responsible for calling functionalities from other modules.
Only necessary header files should be included to avoid redundant dependencies.

3. Multi-File Compilation Process

Multi-file compilation consists of compilation and linking phases, ultimately generating an executable file.

Compilation Phase

-c: Compile only, do not link.
-Wall: Enable all warnings.
-g: Generate debugging information (for GDB debugging).

Objective: Independently compile each .c file into an object file (.o or .obj), containing machine code and unresolved symbol references.

Command Example (using GCC as an example):

gcc -c main.c -o main.o         # Compile main program
gcc -c example.c -o example.o   # Compile module

Key Parameters:

Linking Phase

Static Libraries (.a): Code is directly embedded at compile time, generating a standalone executable file.
Dynamic Libraries (.so/.dll): Loaded at runtime, saving space but depending on external files.

Objective: Merge object files and library files, resolve symbol references, and generate an executable file.

Command Example:

gcc main.o example.o -o program  # Link all object files

Static vs Dynamic Libraries:

Directly Compile Multiple Files to compile all source files at once:

gcc main.c example.c -o program

4. Best Practices for Multi-File Programming

File Naming and Organization

Maintain consistency, such as module.c and module.h.

For large projects, use directory structures:

project/
├── main.c
├── utils/
│   ├── utils.h
│   └── utils.c
└── math/
    ├── math.h
    └── math.c

Global Variables and Function Scope

Defined in .c, used in .h with extern declaration for external access.
Limit usage, prefer passing data through function parameters.

Global Variables:
Static Functions: Use static to modify functions or variables, limiting scope to the current file to avoid naming conflicts.
```
// utils.c
static void helper() { /* Only callable within utils.c */ }
```

Header File Dependency Management

Avoid Circular Dependencies: A.h includes B.h, B.h includes A.h → Compilation error.
Forward Declarations: Use structure pointers in header files instead of complete definitions to reduce dependencies.
```
// a.h
typedef struct B B_t;  // Forward declaration
void func(B_t* ptr);
```

Error Handling and Debugging

Use printf or gdb to trace symbol resolution.
Check the symbol table of object files:nm main.o.

Header file not included → undefined reference error.
Duplicate definition → multiple definition error.

Locating Compilation Errors:
Debugging Tips:

5. Practical Case: Implementing a Calculator Module

Header File calc.h

#ifndef CALC_H
#define CALC_H

int add(int a, int b);
int subtract(int a, int b);
int multiply(int a, int b);
float divide(int a, int b);

#endif // CALC_H

Source File calc.c

#include "calc.h"

int add(int a, int b) { return a + b; }
int subtract(int a, int b) { return a - b; }
int multiply(int a, int b) { return a * b; }
float divide(int a, int b) {
    return (b != 0) ? (float)a / b : 0;
}

Main Program main.c

#include &lt;stdio.h&gt;
#include "calc.h"

int main() {
    printf("Add: %d\n", add(5, 3));
    printf("Divide: %.2f\n", divide(10, 3));
    return 0;
}

Compilation and Execution

gcc -c calc.c -o calc.o
gcc -c main.c -o main.o
gcc main.o calc.o -o calculator
./calculator

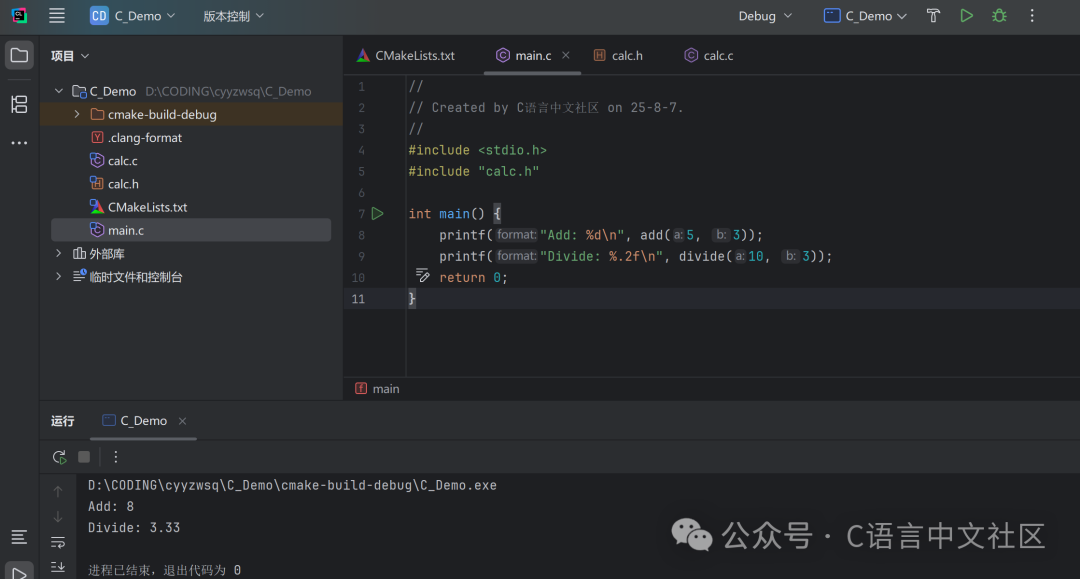

Clion Run Result

Essential Skills for C Language Development: Mastering Multi-File Programming

6. Advanced Tools and Automated Builds

Makefile Dependency Management simplifies the compilation process, automatically detecting file modifications:

CC = gcc
CFLAGS = -Wall -g
TARGET = calculator
OBJS = main.o calc.o

$(TARGET): $(OBJS)
    $(CC) $(CFLAGS) $(OBJS) -o $@

clean:
    rm -f $(OBJS) $(TARGET)

CMake Cross-Platform Build

cmake_minimum_required(VERSION 3.10)
project(calculator)
set(CMAKE_C_STANDARD 99)
add_executable(calculator main.c calc.c)

7. Common Issues and Solutions

Duplicate Definition Error

Cause: Header file not protected, or global variable defined in header file.
Solution: Ensure header files use #ifndef, and global variable definitions are placed in .c files.

Undefined Reference

Cause: Target files not included during linking.
Solution: Check if the compilation command includes all .o files.

Header File Path Issues

Solution: Use -I to specify the header file directory:
```
gcc -I./include main.c -o program
```

8. Conclusion

Multi-file programming is a core practice in C language project development, enhancing code quality through modular design. Master the following key points:

Division of Labor between Header and Source Files: Separation of declaration and implementation.
Compilation and Linking Process: Understanding object files and symbol resolution mechanisms.
Standards and Tools: Follow coding standards and utilize Makefile/CMake for automated builds.
Debugging and Maintenance: Effectively use tools to locate dependencies and symbol issues.

Through practical cases (like the calculator module) and continuous optimization, gradually build maintainable and scalable C language projects.
