This section demonstrates how to compile a kernel module into the kernel using the Linux Kernel Build system, as well as how to load and unload kernel modules.

To maintain the flow, this section will focus on demonstrating the overall operation process, while the details and principles will be elaborated in later sections. As introduced at the beginning, this section emphasizes HOW, while WHY will be explained in detail in subsequent chapters.

In addition to learning about compiling and using kernel modules, this article can serve as a kernel compilation template. When you need to add custom modules to the kernel in the future, you can write code based on this template and follow the steps to compile it.

My documents and manuals are verified and can be followed step by step in a foolproof manner. If you find it helpful, feel free to bookmark it.

If you are not familiar with the Linux Kernel Build system, you can refer to the first chapter of this series.

My experimental environment can be referenced in this article: A Comprehensive Guide to Setting Up Development Environment with Ubuntu 24.04 + Qemu + ARMV8 + Linux 6.12

1. Kernel Module Template

First, let’s introduce the composition of kernel module files. A simple Linux driver needs to include the following points:

Header files (mandatory): You need to include kernel-related header files, <linux/module.h> and <linux/init.h>
Driver load and unload functions (mandatory): You must declare the module_init function, which will be automatically executed by the kernel when loading the driver
Driver unload function (mandatory): You must declare the module_exit function, which will be automatically executed by the kernel when unloading the driver
License declaration (mandatory): The Linux kernel is open source and complies with the GPL (General Public License). The GPL is an open-source license published by the Free Software Foundation, which requires that any software that complies with or is developed based on the GPL must provide source code upon release and allows anyone to freely copy, study, modify, and distribute the software.
Module parameters (optional): Module parameters are values passed to the kernel module when the module is loaded, which will be introduced separately later
Author and version information (optional): You can declare the author information and version information of the driver code

Below is a template for the simplest kernel module:

// hello_module.c
#include <linux/init.h>      // Include initialization macros
#include <linux/module.h>    // The most important header file, describing module information
#include <linux/kernel.h>    // Provides commonly used macros and functions in the kernel

// Module load function (initialization function)
static int __init hello_init(void)
{
    printk(KERN_INFO "Hello, Core&Chip Kernel Module!\n");
    return 0; // Return 0 indicates successful loading
}

// Module unload function (cleanup function)
static void __exit hello_exit(void)
{
    printk(KERN_INFO "Goodbye, Core&Chip Kernel Module!\n");
}

// Specify load and unload functions
module_init(hello_init);
module_exit(hello_exit);

MODULE_LICENSE("GPL v2");               // Specify the module license
MODULE_AUTHOR("shashixiong");            // Specify the module author
MODULE_DESCRIPTION("A simple Hello World kernel module"); // Description

Place this file in the corresponding directory as needed; my example places it in the drivers/hello_module directory, and continue with the following operations.

2. Configuring Files to Compile Kernel Modules

2.1 Modify Kconfig

Next, add the custom configuration entry to the corresponding Kconfig file.

If you have added a module in an existing directory, such as drivers/char, you only need to append to the drivers/char/Kconfig file

config HELLO_MODULE
        tristate "Core&Chip Hello Module"
        default m
        help
          This is a Linux Kernel Module Template.

For the sake of complete demonstration and future extensibility, a new hello_module directory was created in the driver directory, so a new Kconfig needs to be added, and a reference should be added in the upper-level Kconfig. As shown in the figure below:

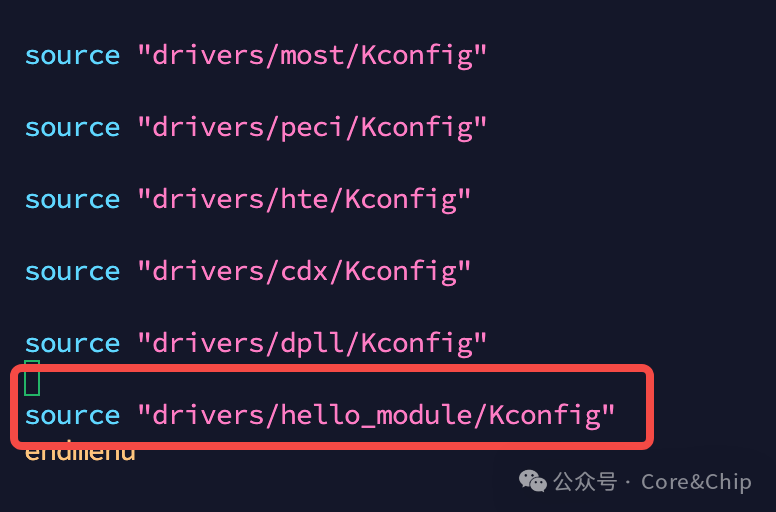

Append source in

Essential Kernel Course for BSP Engineers: 2.2. A Comprehensive Guide to Compiling and Running Kernel Modules

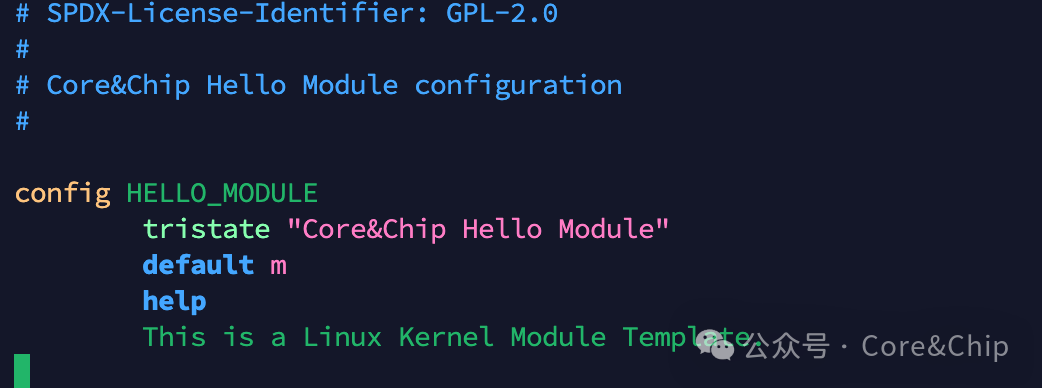

2. Create a Kconfig file in the hello_module directory

2.2 Modify Makefile

Makefile should similarly be modified or added according to the needs of the corresponding directory.

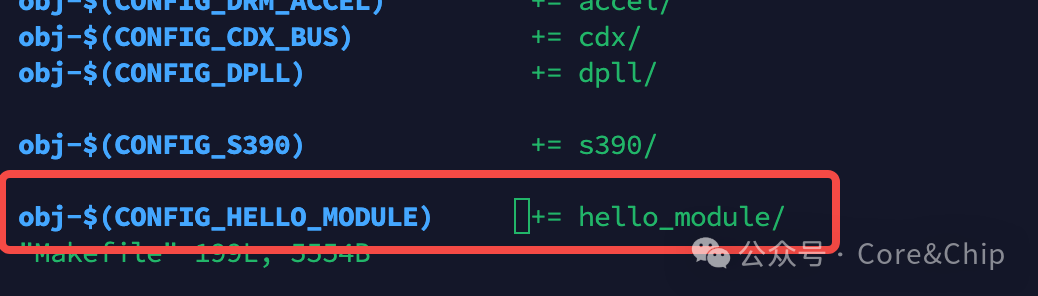

In the drivers directory, add references to subdirectories in the Makefile file

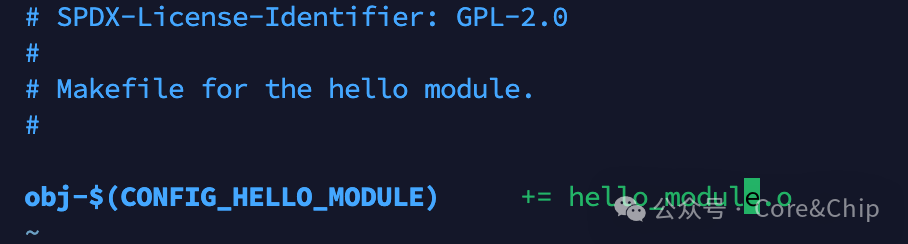

2. In the hello_module directory, add the target compilation for the corresponding file; currently, there is only one file hello_module.o

2.3 Configuration in menuconfig

After the above modifications, you can enter menuconfig to see the new configuration we added

cd corechip_qemu_sdk
# The envsetup.sh contains export operations for toolchain and architecture, which are environment variables required for compilation
source envsetup.sh

cd linux-6.12.28
make menuconfig

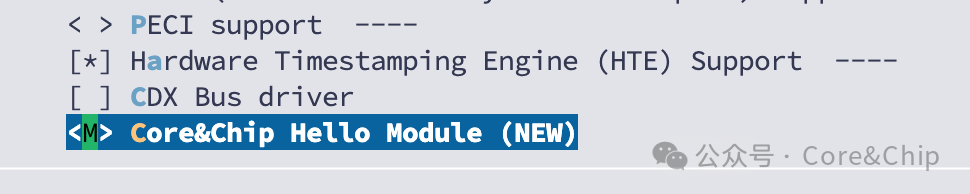

In the Device Drivers path, scroll to the end to see

If you select *, it will be automatically loaded when the kernel starts, and we will not demonstrate that here. We will select M for manual loading.

Save the configuration and exit.

3. Compiling Kernel Modules

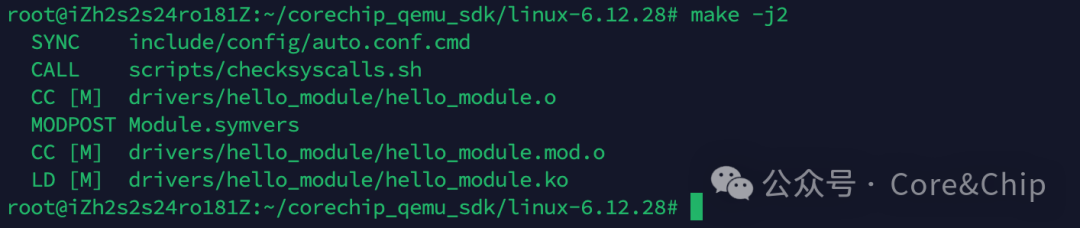

After completing the above configuration, you can compile the kernel:

make -j$(nproc)

The above method compiles the kernel, equivalent to make all, which includes compiling kernel modules. You can also compile specific modules separately:

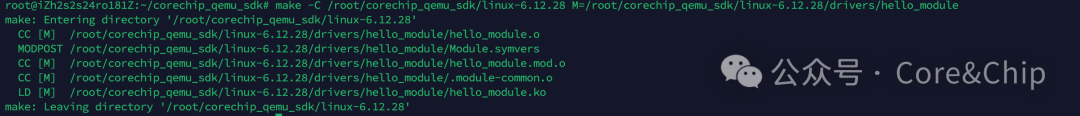

make -C <path_to_kernel_dir> M=$PWD
-C: Specify the kernel source directory
M: Specify the kernel module directory

If you want to use modprobe, modinfo, and other commands, you need to additionally use make modules_install

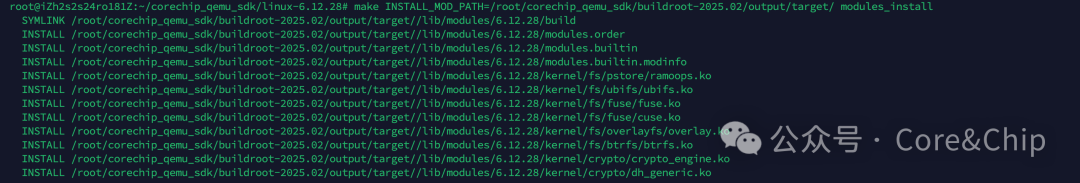

make INSTALL_MOD_PATH=/your/target/rootfs modules_install

INSTALL_MOD_PATH: Points to the path of your rootfs.

This command will automatically create /lib/modules/$uname -a/ in the specified rootfs directory and copy the ko files and module dependency files there for use by modprobe, modinfo, and other commands.

If you do not use make modules_install, commands like modprobe will not work due to missing file dependencies.

4. Loading/Unloading Kernel Modules

4.1 NFS Mount + insmod

corechip_qemu_sdk environment supports NFS mounting, copy the ko file to the corechip_qemu_sdk/share directory

In qemu, after starting, enter the shell and enter the following command to mount the shared directory

mkdir /mnt/host
mount -t 9p -o trans=virtio share /mnt/host

After mounting, enter the shared directory

cd /mnt/host/share

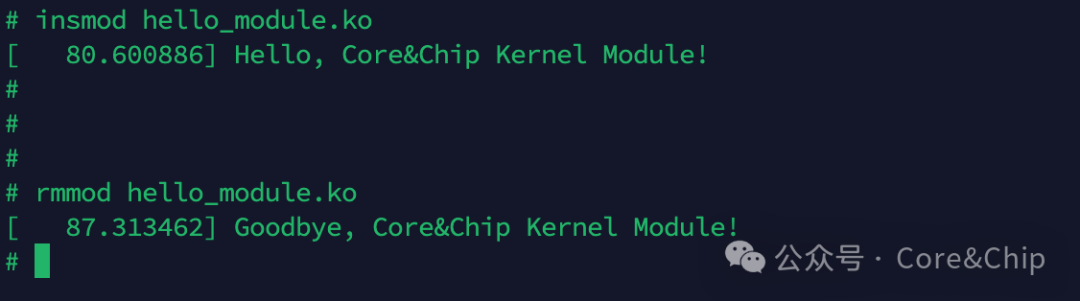

insmod hello_module.ko

Loading and unloading kernel modules execute the registered module_init and module_exit functions, respectively.

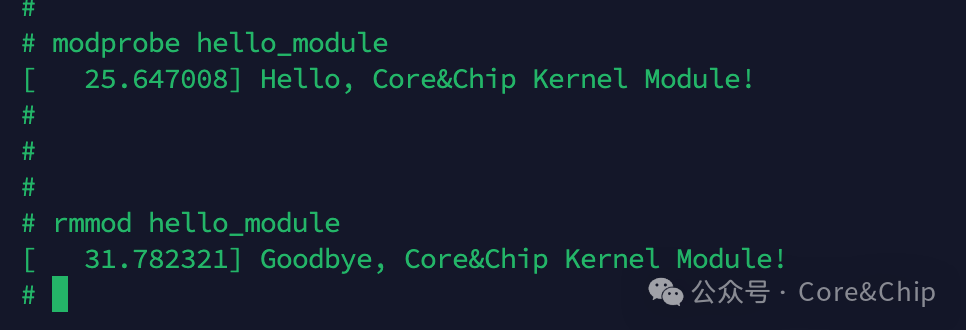

4.2 modprobe

Since we installed the module earlier, the modprobe command will automatically look for the corresponding file in the /lib/modules/6.12.28 directory.

Therefore, modprobe + module_name can be used directly from any path.

5. Conclusion

This article provides a detailed introduction to compiling self-built kernel module files through source compilation, as well as methods for loading and unloading kernel modules.

The code demonstrated in this article will be uploaded to my SDK open-source repository, and interested readers can download and use it.

git clone https://gitee.com/core-chip_0/corechip_qemu_sdk.git

The method of compiling within the kernel source can be somewhat cumbersome, and during debugging, there are actually simpler methods. In the next section, we will explain the method of out-of-tree compilation of kernel modules.

However, when the module functionality is stable or needs to be delivered, it is still advisable to use the source compilation method introduced in this section, as it is the standard approach.

Using the out-of-tree method, if your team or client’s project has enabled security mechanisms such as AVB (Android Verified Boot) or module signing, it will lead to inability to load normally.

No matter the size of your company or business, we should strive to ensure that our processes resemble a professional army, Work as a professional~!

If you find this article and this series helpful, please help by following, liking, and recommending; it is very important to me. Thank you very much!!

Reference: https://docs.kernel.org/kbuild/modules.html
