In the era of the Internet of Things (IoT), IoT gateways play a crucial role by successfully connecting the perception network with traditional communication networks, enabling wide-area and local interconnections. With an IoT gateway, it is possible to manage various perception nodes at the bottom layer, capture information, and achieve remote control.
The Star Box gateway, launched by Shunzhou Intelligent, addresses the shortcomings of traditional smart gateway products, adding new functionalities to meet the diverse application needs of intelligent IoT scenarios, as detailed below:

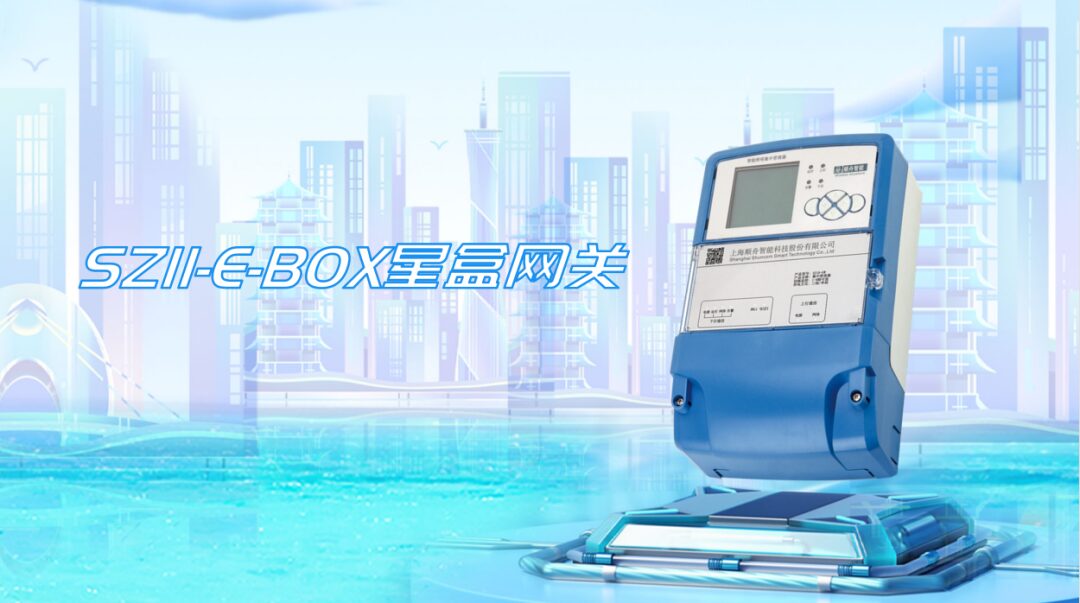

The SZ11-E-BOX Star Box gateway is an important component of the energy-efficient low-carbon lighting control system, featuring a core developed by Shunzhou Intelligent, which includes a Zigbee wireless communication module, a 4G communication module, and a high-performance ARM chip.
With professional hardware and software design, the product boasts powerful functions, easy installation, reliable operation, and easy maintenance, making it a high-performance automation product specifically developed for smart street lighting.
It complies with the Zigbee communication standard of the IEEE802.15.4 protocol, TCP/IP protocol, and supports interfaces such as RS485 serial port, Ethernet port, and reserved switch output interfaces. Its main functions include timed control, latitude and longitude control, loop remote control, three-phase electrical information collection, anti-tampering alarms, and third-party sensor access.
The internal design includes current and voltage measurement circuits, allowing real-time collection of circuit load operations and electricity usage, significantly reducing the workload of streetlight management departments, improving work efficiency, and enhancing energy-saving benefits.
Three-Phase Electricity Collection: The input side collects three-phase electricity, including voltage, current, power consumption, frequency, and other electrical parameters, with a collection accuracy of up to ±3%
Loop Control: Control of 8 loops, with a maximum current of 5A per loop; the platform allows for setting timing strategies, latitude and longitude strategies, and illumination strategies; 8 single-phase current collections, with a collection accuracy of ±3%
Button Control: Local screen display; password login, remote password modification, reading; local loop control strategy settings.
Communication Management: Uplink communication supports 4G, Ethernet communication, and WiFi (for convenient on-site debugging); downlink communication supports Zigbee master station; 2 RS485 buses, allowing external connections to illumination sensors, national grid specification electric meters, and V2 control collection (supporting a maximum of 36 control and current collection).
Function Expansion: 12V UPS power input; magnetic door switch signal input; 12V dry contact output, allowing external alarm devices; local RTC clock, maintaining time during power outages to ensure clock accuracy; built-in GPS and Beidou modules, supporting GPS positioning and time calibration, with an accuracy of 1~10ms; built-in buzzer, linked to the alarm for shell tampering;
OTA Upgrade
Loop abnormal light-on alarm; loop abnormal light-off alarm; AC contactor failure alarm; distribution cabinet abnormal opening alarm; power outage alarm; low voltage alarm; overvoltage alarm; overload alarm; phase loss alarm; and over 170 types of alarms.

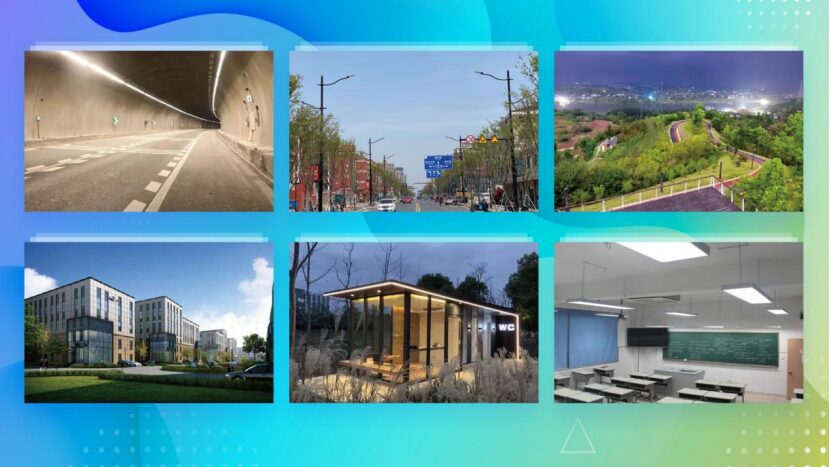

The Shunzhou Star Box Smart Gateway, when paired with smart light controllers and the Shunzhou Smart City Lighting Management Platform, can quickly establish a smart lighting solution, meeting the application needs in various scenarios such as smart lighting, smart classrooms, and smart public toilets.
Visit the Shunzhou Intelligent official website, search for “gateway” to view detailed product information. We look forward to your inquiries!
For more product and solution details, please continue to follow 【Shunzhou Intelligent】 & 【Shunzhou Intelligent Official Subscription】. If you wish to purchase related products, open Taobao or Tmall, search for 【Shunzhou Intelligent Flagship Store】, and select the corresponding product to complete your purchase.
